• Model NO.：DA-100B
• Warranty：12 Months
• Location：1.5 Hours From Shanghai
• LCD Screen：Yes
• Classification：Hospital Traction Bed
• Eight Traction Modes for Choosing：Yes
• Different Display Screen：Digital Display Screen, LCD Screen, Touch Display
• Multiple Security Designs：Emergency Retreat Switch and Emergency Retreat Key
• Swing Angle：-40° - 40°
• Total Traction Time：0 - 60min
• Transport Package：Wooden Export Package
• Specification：2450*600*720mm
• Trademark：WANROOEMED
• Origin：China
• HS Code：94029000
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. DA-100B Warranty 12 Months Location 1.5 Hours From Shanghai LCD Screen Yes Classification Hospital Traction Bed Eight Traction Modes for Choosing Yes Different Display Screen Digital Display Screen, LCD Screen, Touch Display Multiple Security Designs Emergency Retreat Switch and Emergency Retreat Key Swing Angle -40° - 40° Total Traction Time 0 - 60min Transport Package Wooden Export Package Specification 2450*600*720mm Trademark WANROOEMED Origin China HS Code 94029000 Production Capacity 500 Sets/Month

Product Description

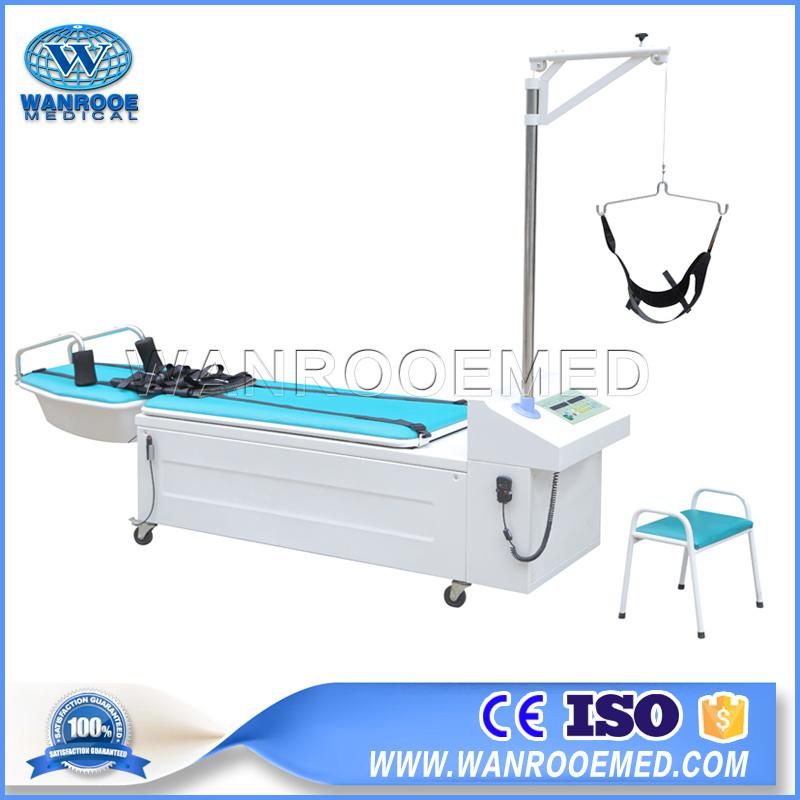

DA-100B Three-Dimensional Cervical and Lumbar Hospital Traction Bed

Features:

1. Cervical &lumbar traction controlled by integrated module and microcomputer software control.
2. All the operation: total traction time, traction force, intermittent time, traction mode etc is controlled by microcomputer, simple traction parameters key-in method
3. Direct-current motor (good stability and reliability, reducing the noise)
4. Used for cervical and lumbar traction can respectively or simultaneously implement the cervical or lumbar traction for two patients.
5. Three-dimensional traction: longitudinal traction, rotating traction, angle traction. Three-dimensional traction can be used individually, combinationally.
6. Traction force employs the  electric sensor. Automatic compensation of the traction force, when the actual traction force is no more than 10% of the setting value, the traction force will compensate to the setting value.
7. Eight traction modes for choosing.
8. 20 curing cases storage and read-out functions.
9. Multiple security designs: Patient Emergency Retreat Switch and Medical Staff Operation Emergency Retreat Key.
10. Lumbar vertebra illness: lumbar disc projection, denaturation confusion, strain, dislocation & in-complete paraplegia & hemiplegia complicated symptoms.
    cervical vertebra illness: traumatic neck fracture, dislocation, dizziness, headache, unusual pressure, eyesight & language obstacle .(According to the disease status, it could take resupine or prostrate traction.)
11. Digital/LCD/Touch screen for you choosing.

TECHNICAL PARAMETER:
Supply: 220V/50HZ
Power:200VA
Lumbar traction parameters:
Slow traction distance:0~200mm
Swing angle:-40°~40°
Forming angle:-10°~20°
Total traction time:0~60min
Traction time:0~9min
Intermittent time:0~90s
Traction force:0~99Kg
Product Size(L*W*H): 2450*600*720mm

Cervical traction parameters:
Traction distance:0~300mm
Total traction time:0~60min
Traction time:0~9min
Intermittent time:0~90s
Traction force:0~30Kg
