• Model NO.：DA-IIIA
• Theory：Microcomputer Software Control
• LCD Display：with LCD Display
• Group：Adult
• Eight Traction Modes for Choosing：Yes
• 20 Curing Cases Storage and Read-out Fun：Yes
• Transport Package：Wooden Export Package
• Specification：CE, ISO
• Trademark：WANROOEMED
• Origin：China
• HS Code：94029000
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. DA-IIIA Theory Microcomputer Software Control LCD Display with LCD Display Group Adult Eight Traction Modes for Choosing Yes 20 Curing Cases Storage and Read-out Fun Yes Transport Package Wooden Export Package Specification CE, ISO Trademark WANROOEMED Origin China HS Code 94029000 Production Capacity 500 Sets/Month

Product Description

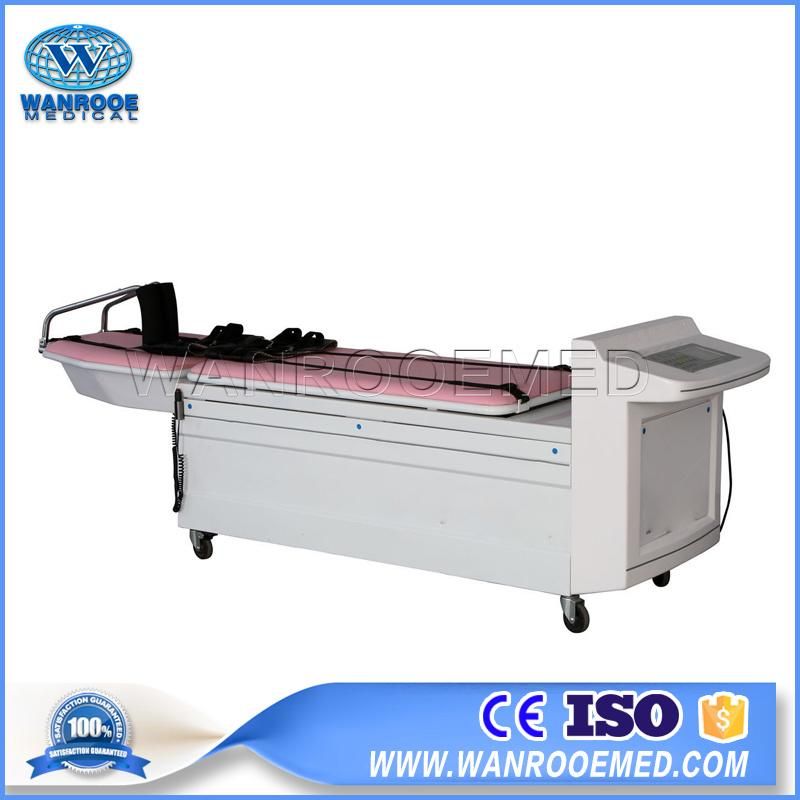

DA-IIIA Three-Dimensional Lumbar Traction Bed Controlled by Microcomputer

Traction Bed Features:
1. Lumbar traction controlled by integrated module and microcomputer software control.
2. All the operation: Total traction time, traction force, intermittent time, traction mode etc is controlled by microcomputer, simple traction parameters key-in method
3. Direct-current motor (good stability and reliability, reducing the noise)
4. Used for lumbar traction can respectively or simultaneously implement the cervical or lumbar traction for two patients.
5. Three-dimensional traction: Longitudinal traction, rotating traction, angle traction. Three-dimensional traction can be used individually, combinationally.
6. Traction force employs the electric sensor. Automatic compensation of the traction force, when the actual traction force is no more than 10% of the setting value, the traction force will compensate to the setting value.
7. Eight traction modes for choosing.
8.20 curing cases storage and read-out functions.
9. Multiple security designs: Patient Emergency Retreat Switch and Medical Staff Operation Emergency Retreat Key.
10. Lumbar vertebra illness: Lumbar disc projection, denaturation confusion, strain, dislocation & in-complete paraplegia & hemiplegia complicated symptoms.
11. Digital/LCD/Touch screen for you choosing.

Traction Bed Technical Dates:
Supply: 220V/50HZ, Power: 200VA
Lumbar traction parameters:
Slow traction distance: 0~200mm
Swing angle: -40° ~40°
Forming angle: -10° ~20°
Total traction time: 0~60min
Traction time: 0~9min
Intermittent time: 0~90s
Traction force: 0~99Kg
Product Size(L*W*H): 2450*600*720mm

Slow traction distance	0~200mm
Swing angle	-40°~40°
Forming angle	-10°~20°
Total traction time	0~60min
Traction time	0~9min
Intermittent time	0~90s
Traction force	0~99Kg
Product Size(L*W*H)	2450*600*720mm

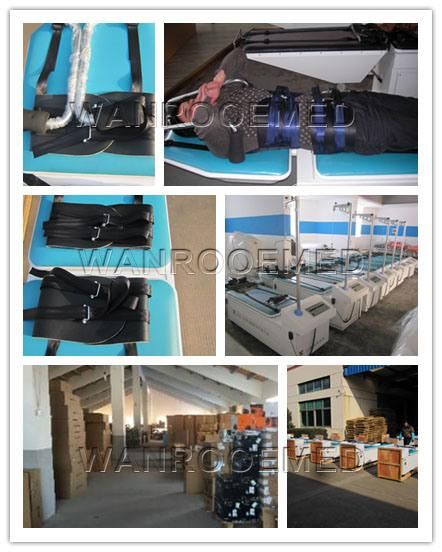

Details:
