• Model NO.：JYK-3D
• Customized：Non-Customized
• Condition：New
• Size：192*53*81cm
• Max. Angle of The Back：45 Degree
• Transport Package：Carton
• Specification：CE, FDA
• Trademark：JYK
• Origin：China
• HS Code：94029000
• Production Capacity：1000unit,Month

Basic Info.

Model NO. JYK-3D Customized Non-Customized Condition New Size 192*53*81cm Max. Angle of The Back 45 Degree Transport Package Carton Specification CE, FDA Trademark JYK Origin China HS Code 94029000 Production Capacity 1000unit/Month

Product Description

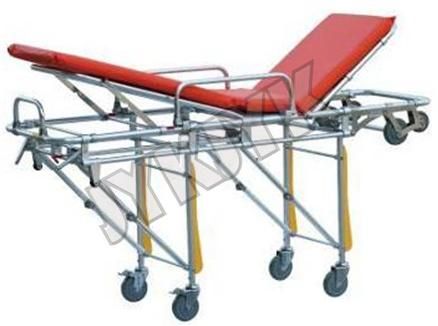

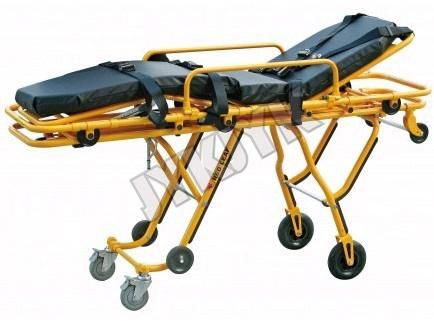

Stretcher for ambulance car JYK-3D
Hospital bed, medical bed, medical table, Hospital stretcher

Technical features:
This stretcher considering narrow spaces such as elevators, moving the stretcher after folding as a chair.
when loading the stretcher up to the ambulance, the heighest height is 68cm, the second height is 81cm, lowest position is 20cm.

The bed surface of stretcher is made of foamed cushion, the material is waterproof, the head is adjustable which makes the patients feel comfortable.

The stretcher can be folded like a chair, the chair angle can be adjusted by gas spring.
The mechanical structure of folding legs are controlled by the handles on both sides.
The stretcher only need one person to load the patients (with this trolley) onto the ambulance.
It is made of high-strength aluminum alloy materials. Use-safely and easy for sterilization and clean.

Wheel size: Ø125mm.



high position size	192*53*81cm
Max. angle of the back	45 degree
low position size	197*53*20cm
self-weight	33.48kgs
packing size	200*62*28cm
G.w	44.3kgs
