• Model NO.：JYK-B7301
• Condition：New
• Control：Manual
• Functions：for Surgeries
• Transport Package：Wood Package
• Specification：CE, ISO
• Trademark：JYK
• Origin：China
• HS Code：94029000
• Production Capacity：500unit,Month

Basic Info.

Model NO. JYK-B7301 Condition New Control Manual Functions for Surgeries Transport Package Wood Package Specification CE, ISO Trademark JYK Origin China HS Code 94029000 Production Capacity 500unit/Month

Product Description

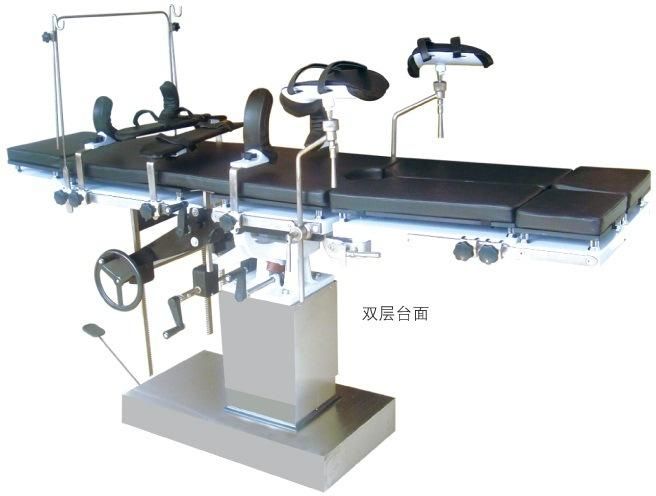

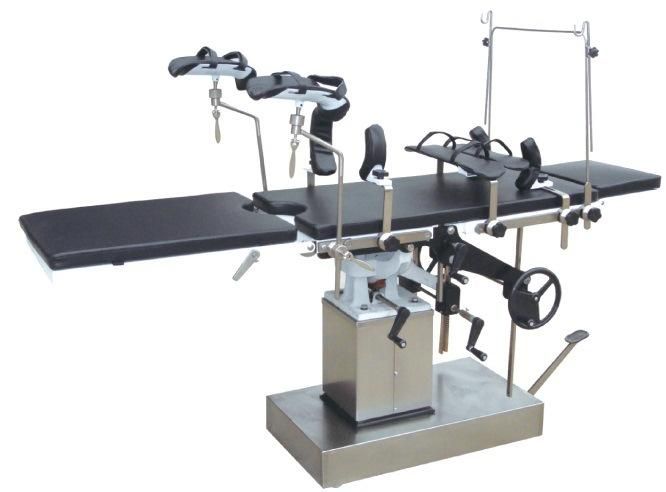

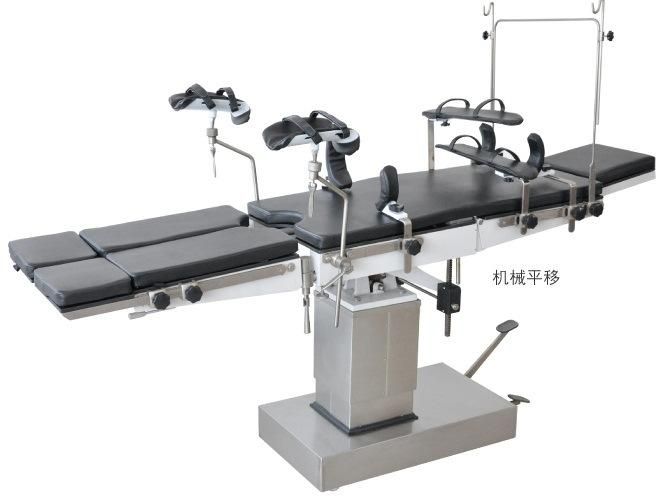

Manual side-manipulating operation table for surgery JYK-B7301

Surgical table, medical table, medical apparatus

• Model no.: JYK-B7301
  Size: 2100*480*780-1030mm (L*W*H)
  Description: this table  is used for the surgery of head, neck, abdomen, perineum, limbs, gynecology, ophthalmology, otolaryngology and orthopedics, etc
  The up and down moving is controlled by hydraulic system
  The adjustment is manipulated at the two sides of the board
  The adjustment of the back section and leg board is controlled by worm gear, wheel gear and gear rack by hand, the material of the board and the shield can be chosen between cold-rolled carbon steel and stainless steel
  Details:
  Length/width: 2100mm/480mm
  Height adjustment (up/down): 780mm/1030mm
  Trendelenburg/reverse trendelenburg: 20°/30°, lateral tilt: 18°/18°, head rest (up/down): 45°/-90°, back section: 75°/-18°
  Leg plate (up/down): 90°
  Kidney waist bridge: 120mm
  Standard accessory:
  * 1 anaesthetic screen
  * 2 shoulder rest
  * 2 arm support
  * 2 waist support
  * 2 knee crutch
  * 1 leg board
  * 1 foot board
  Package:
  1pc in a wooden carton
  Size: 1360x860x880mm
  G/N.W: 260/210kg
