• Model NO.：JYK-B7301D
• Seater：Single
• Folded：Folded
• Customized：Non-Customized
• Condition：New
• Control：Manual
• Functions：for Surgeries
• Transport Package：Wood Package
• Specification：CE, ISO
• Trademark：JYK
• Origin：China
• HS Code：94029000
• Production Capacity：500unit,Month
• Package size per unit product：210.00cm * 73.00cm * 750.00cm
• Gross weight per unit product：280.000kg

Basic Info.

Model NO. JYK-B7301D Seater Single Folded Folded Customized Non-Customized Condition New Control Manual Functions for Surgeries Transport Package Wood Package Specification CE, ISO Trademark JYK Origin China HS Code 94029000 Production Capacity 500unit/Month

Packaging & Delivery

Package size per unit product 210.00cm * 73.00cm * 750.00cm Gross weight per unit product 280.000kg

Product Description

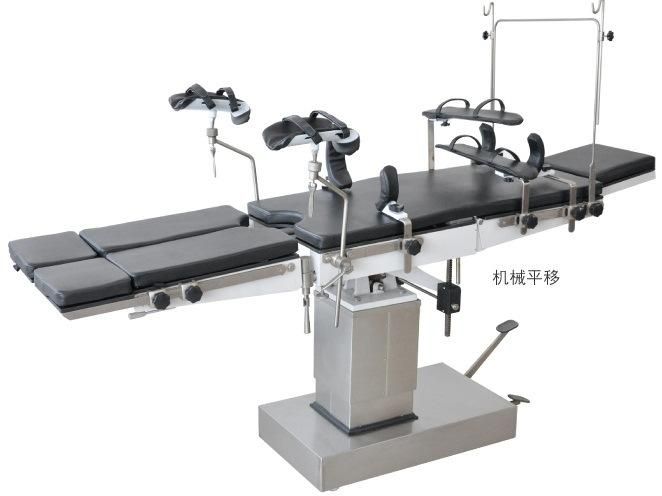

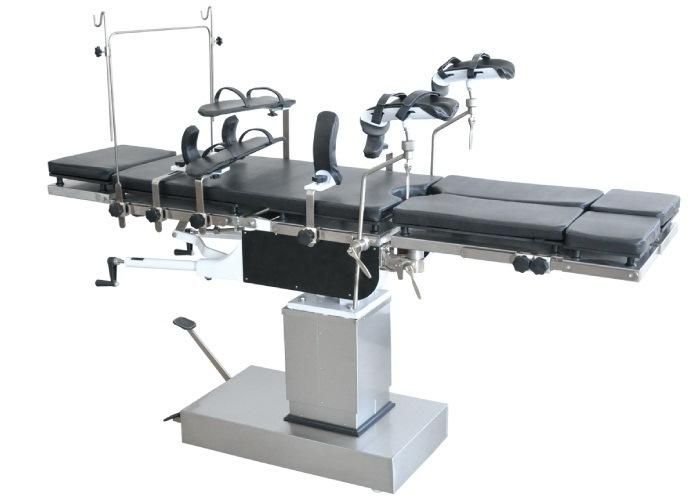

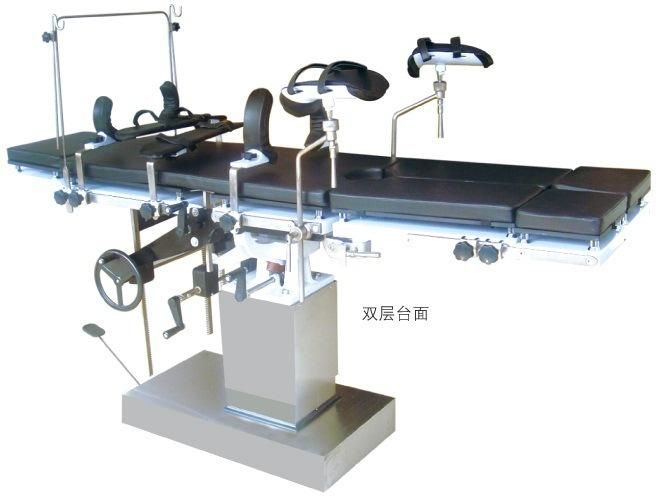

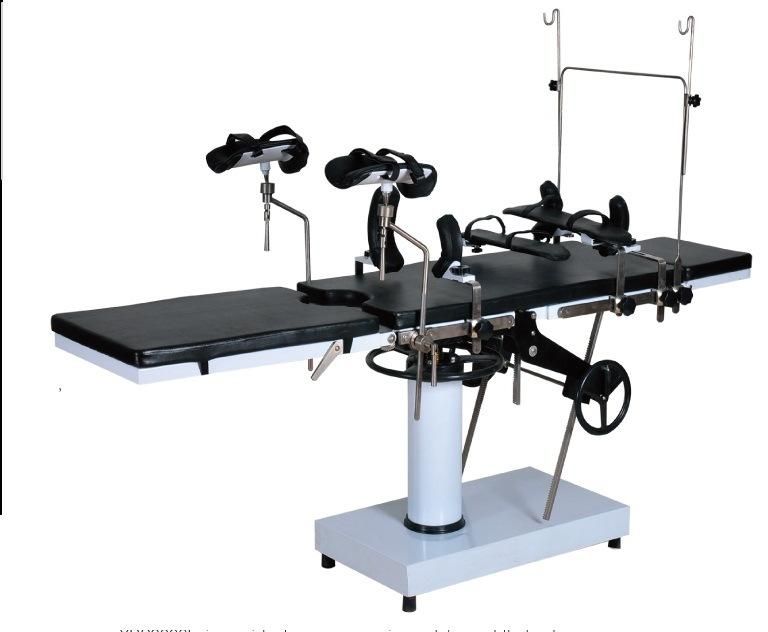

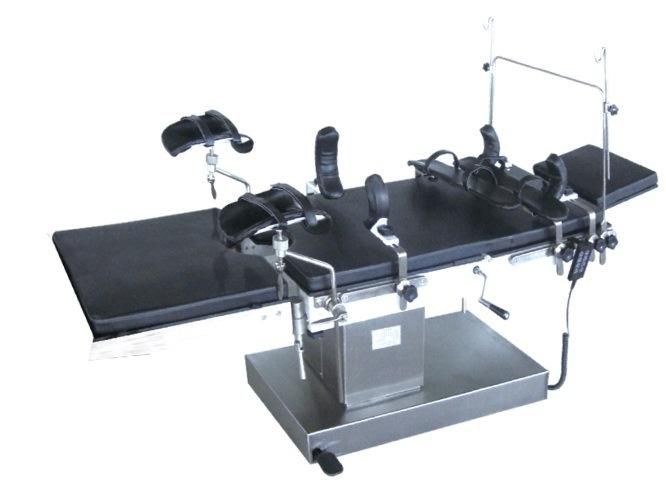

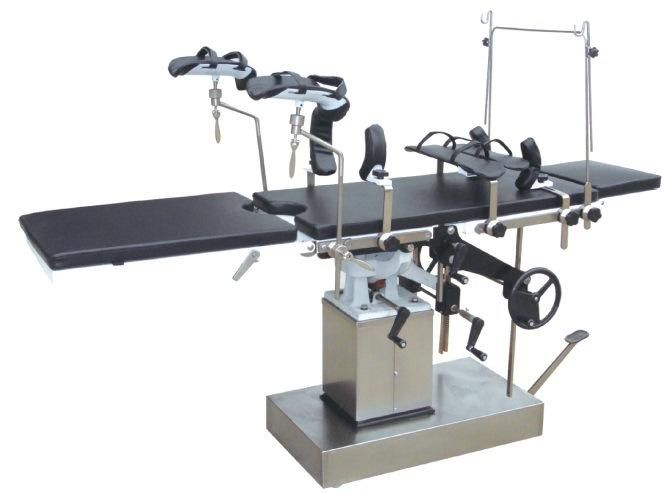

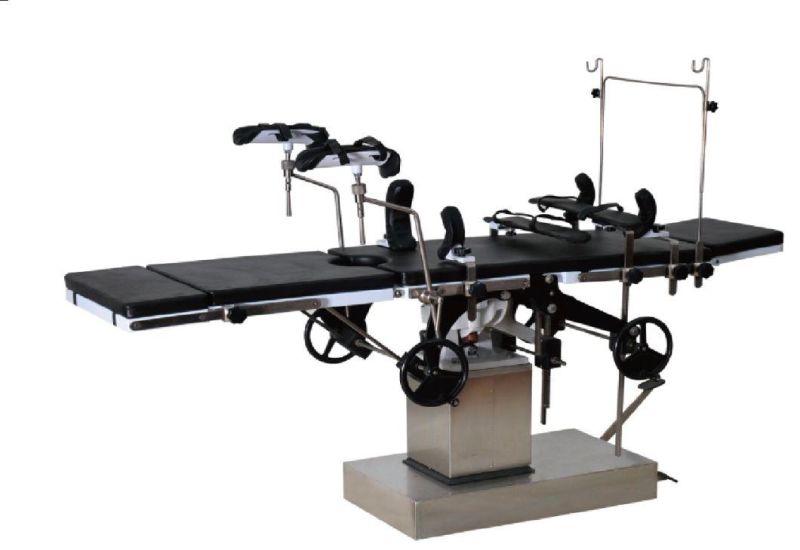

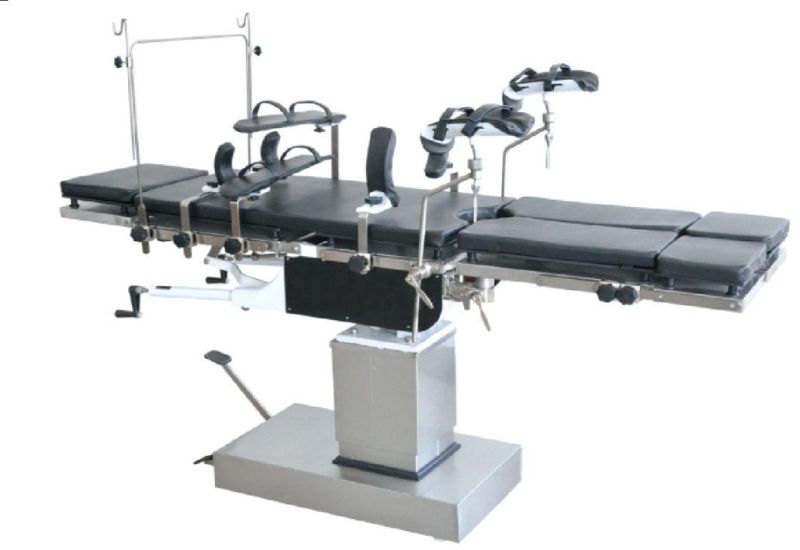

Manual side-manipulating operation table for surgery JYK-B7301D

Surgical table, medical table, medical apparatus

• • Model No.: JYK-B7301D
  • Size: 2100*500*750-1000mm(L*W*H)
  • Descriptions: this table used for the surgery of head, neck, perineum, limbs, gynecology, ophthalmology, otolaryngology and orthopedics and more. The up and down moving is controlled by hydraulic system. The adjustment is manipulated in the two sides of the board
    1. Longitudinal motion controlled by screw. It can do X-ray with C-ARM
    2. Back section and leg board controlled by spring and gravity, easy and convenient to operate
    3. The leg board is dismantable and it can be outreached and folded, suitable for urology surgery
    4. Two materials to be chosen: cold rolled coated steel and stainless steel
  • Details:
    1. Length/width:2100mm/500mm
    2. Height adjustment(up/down):750mm/1000mm
    3. Trendelenburg/reverse trendelenburg:20°/15°, lateral tilt:18°/18°, head rest(up/down): 45°/-90°, back section: 75°/ -18°
    4. Longitudinal displacement:300mm
    5. Leg plate(up/down): 90°
    6. Kidney waist bridge :120mm
    7. Swiveling of leg plate:90
  • Standard accessories:
    1. 1 anesthetic screen
    2. 2 shoulder rest
    3. 2 arm support
    4. 2 waist support
    5. 2 knee crutch
    6. 1 leg board
    7. 1 foot board
  • Package: 1pc in a box, meas.: 1400×770×960mm, GW/N.W: 290/245kg
