Hospital Furniture

Manual Side-Manipulating Operation Table for Surgery Jyk-B7301A

Guangzhou Jiuyuekang Medical Equipment Co., Ltd.
  • Type:Operating Floor
  • Usage:Nursing Center, Diagnosis Room, Transfusion Room, Control Laboratory

Base Info

  • Model NO.:JYK-B7301A
  • Seater:Single
  • Folded:Folded
  • Customized:Non-Customized
  • Condition:New
  • Control:Manual
  • Functions:for Surgeries
  • Transport Package:Wood Package
  • Specification:CE, ISO
  • Trademark:JYK
  • Origin:China
  • HS Code:94029000
  • Production Capacity:500unit,Month
  • Package size per unit product:210.00cm * 80.00cm * 75.00cm
  • Gross weight per unit product:150.000kg

Description

Basic Info.

Model NO. JYK-B7301A Seater Single Folded Folded Customized Non-Customized Condition New Control Manual Functions for Surgeries Transport Package Wood Package Specification CE, ISO Trademark JYK Origin China HS Code 94029000 Production Capacity 500unit/Month

Packaging & Delivery

Package size per unit product 210.00cm * 80.00cm * 75.00cm Gross weight per unit product 150.000kg

Product Description

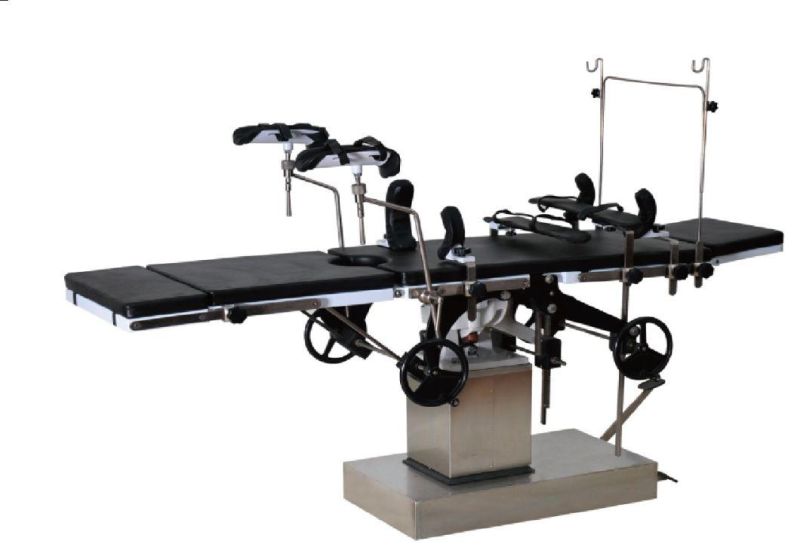

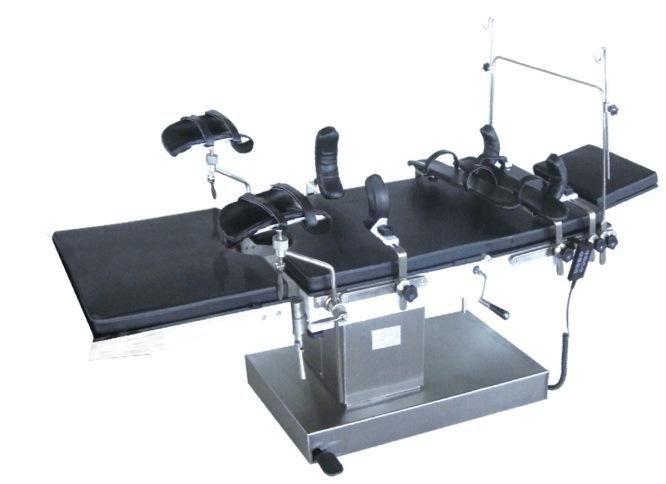

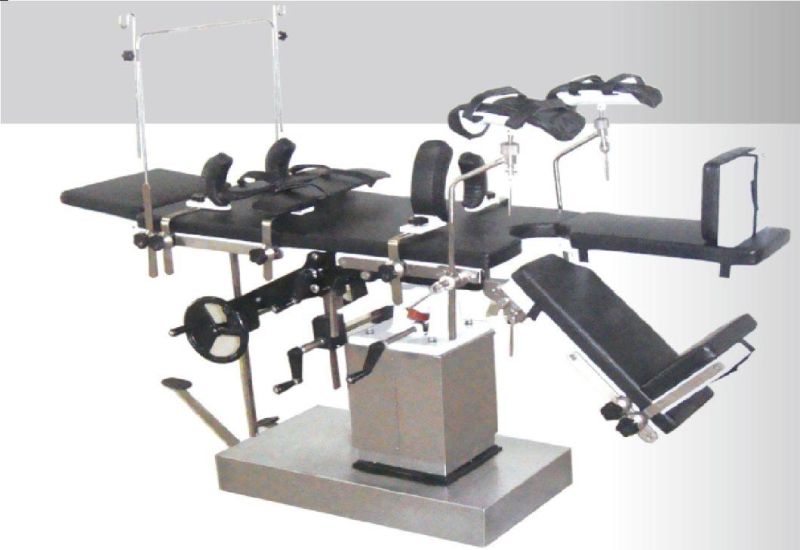

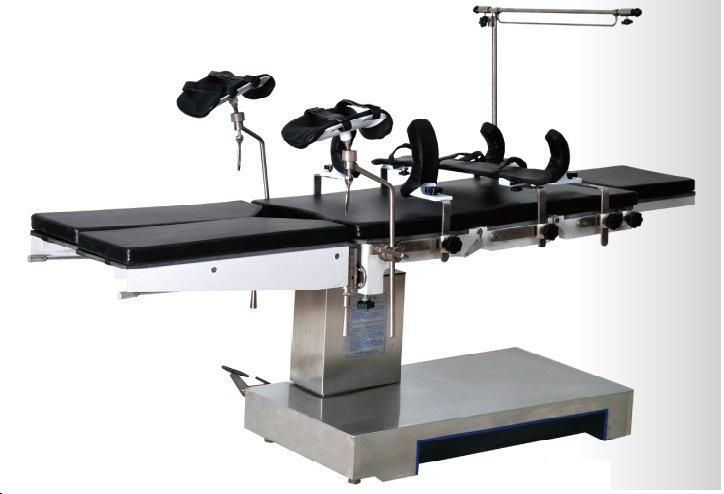

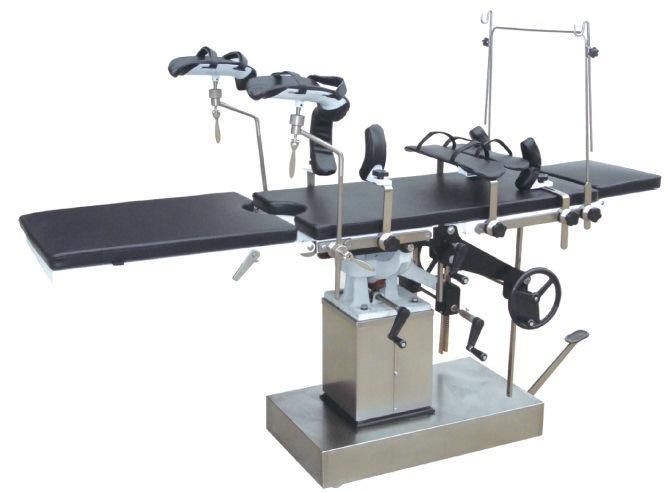

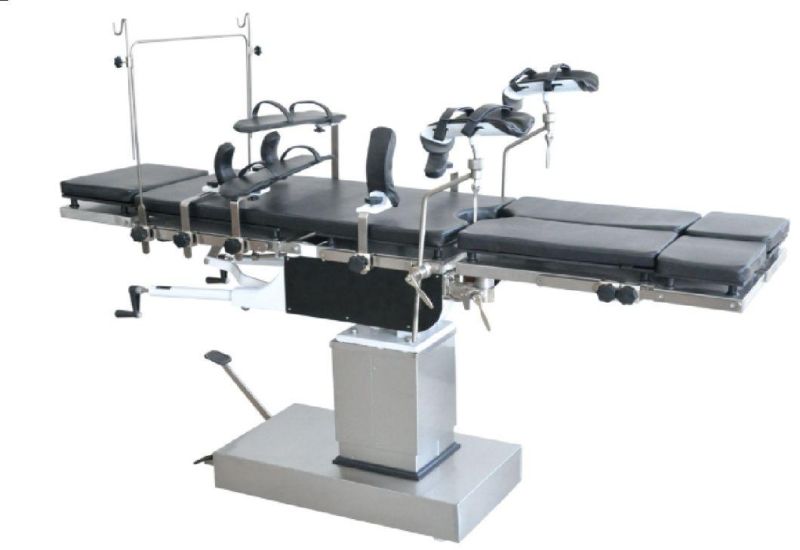

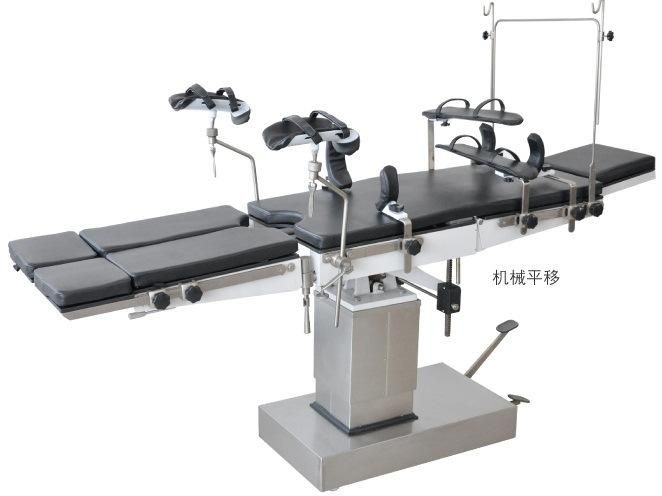

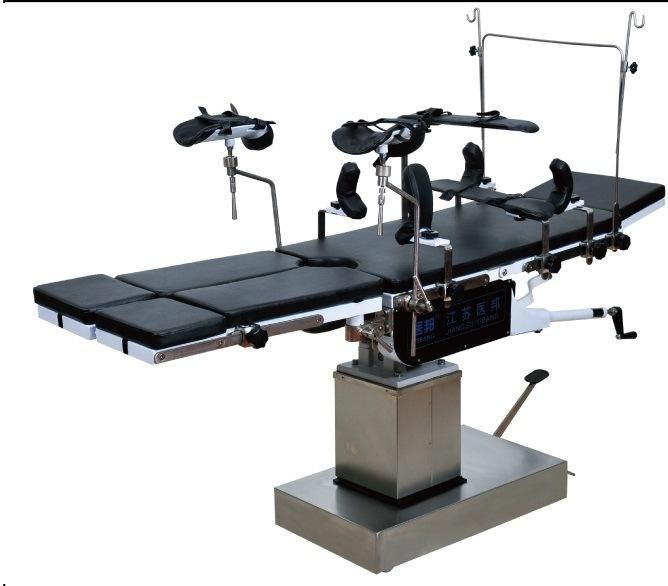

Manual side-manipulating operation table for surgery JYK-B7301A

Surgical table, medical table, medical apparatus
  • Model no.: JYK-B7301A
    Size: 2100*480*780-1030mm(L*W*H)
    Description: this table is used for the surgery of head, neck, abdomen, perineum, limbs, gynecology, ophthalmology, otolaryngology and orthopedics, etc
    The up and down moving is controlled by hydraulic system
    The adjustments is manipulated in the two sides of the board
    1)The leg board is dismantable and it can be not only outreached but also folded, convenient for urology surgery
    2)The material of the board and shield can be chosen between cold-rolled coated steel and stainless steel
    Details:
    Length/width: 2100mm/480mm
    Height adjustment (up/down): 780mm/1030mm
    Trendelenburg/reverse trendelenburg: 20°/30°, lateral tilt: 18°/18°, head rest (up/down): 45°/-90°, back section: 75°/-18°
    Leg plate (up/down): 90°
    Kidney waist bridge: 120mm
    Swiveling of leg plate: 90°
    Standard accessory:
    * 1 anaesthetic screen
    * 2 shoulder rest
    * 2 arm support
    * 2 waist support
    * 2 knee crutch
    * 2 leg board
    * 2 foot board
    Package:
    1pc in a wooden carton
    Size: 1360x860x880mm
    G/N.W: 300/250kg
