• Model NO.：DST-700T
• Warranty：2 Years
• OEM：Yes
• Manufacture Factory：Yes
• Brand Name：Grand Medical
• Feature：Durable
• Power Source：Electricity
• Certificate：ISO, CE, TUV
• Capacity Weight：400kg
• Electric：220V 50Hz 300va
• Bed Lock：Electric
• Transport Package：Wooden Case
• Specification：2015*540mm
• Trademark：YUDA
• Origin：China
• Production Capacity：1000 Sets Per Month

Basic Info.

Model NO. DST-700T Warranty 2 Years OEM Yes Manufacture Factory Yes Brand Name Grand Medical Feature Durable Power Source Electricity Certificate ISO, CE, TUV Capacity Weight 400kg Electric 220V 50Hz 300va Bed Lock Electric Transport Package Wooden Case Specification 2015*540mm Trademark YUDA Origin China Production Capacity 1000 Sets Per Month

Product Description






Why choose GRAND?

1.GRAND Medical is a new merged medical manufacture, we are the manufacture, the former brand is YUDA. We are the largest medical manufacture in North China. We have 4 factories, 39 workshops, more than 200 workers.


2.GRAND Medical group is a famous leading brand in China, especially we are very strong on operating room equipment, like operating lamp, operating table and hospital furniture.


3.By using 10 years, Grand medical group producing the world leading dynamic holter ECG, and we are doing more better patient monitors with the USA engineers.


4.We only accept serious buyer. During Carona virus, Grand Medical Group produced surgical and medical face masks, face shields, UV air sterile machine and hospital beds, Grand and YUDA successfully joined MOH tenders in a large variety medical supply.



Model: DST-700T

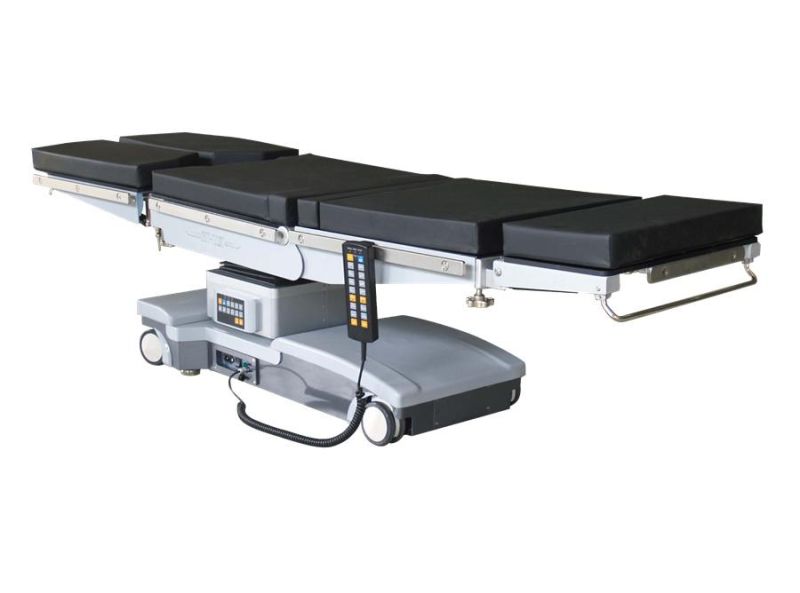

Name: Ultra-low Electric Hydraulic Operating Table




Introduction:
OR Electric Sliding Heavy Load Mobile Table with a super lower position comes to 480mm( 18.8in). Adopts electric and hydraulic. German Dunkeron motor with advanced hydraulic transmission.which is very comfortable to use, but it has a very good performance, it has been used globally hospitals and OR room.

Features:
1. DST-700T use electric and hydraulic. Germany Dunkeron motor with advanced hydraulic transmission.
2. 350mm horizontal movement, 550mm ultra-full postion is the best choice for craniocerebral surgery, neurosurgery, ophthalmology and cosmetic surgery.

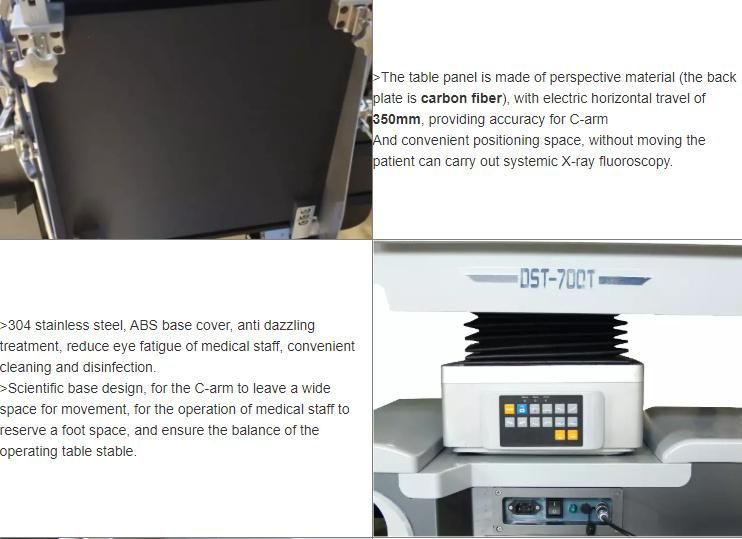

3. Micro-computer control presion stablity. Full carbon fiber material, China patent, very high clearance, supply accurate space for C-arm and X-ray imaging of full body without moving the patient.
4.304 Stainless steel for the cover of ABS base. ≥ 100mm castors can be electric locked.
5.backup battery for one week( 80-100 times) surgeries.

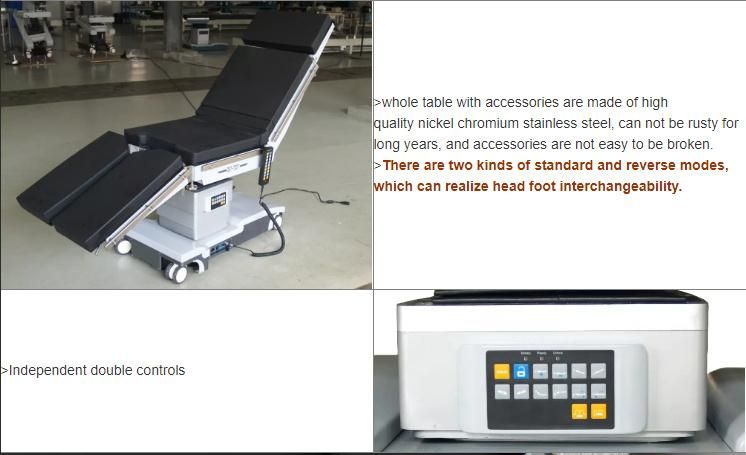

6. It has standard and reverse standard for head and foot exchange  function.
7. One reset function, with two independant electric controlling system. High density memory mattress.

Technical Data for 700T



Bed Panel Size	(2015*540)±10mm
Bed height from the ground(without pads)	Minimum  height: 480±20mm Maxmium  height: 840±20mm
Lifting route(electric)	340±20mm
Horizontal route( electric)	350±20mm
Head and foot tilt( electric)	Head down tilt: 20°± 2° Foot down tilt: 20°± 2°
Lateral tilt( electric)	Left: 18°± 2° Right: 18°± 2°
Back plate fold (manual)	Upward: 70°± 2° Downward: 32°± 2°
Leg plate fold (manual)	Upward: 28°± 2° Downward: 90°± 2°
Head Section fold (manual)	Upward: 30°± 2° Downward: 90°± 2°
Table panel X-ray absorption coefficient	≤0.44mmAL
Power Supply	220v 50Hz 300VA
Net weight/ capacity weight	300KG/400KG
Bed lock	Electric

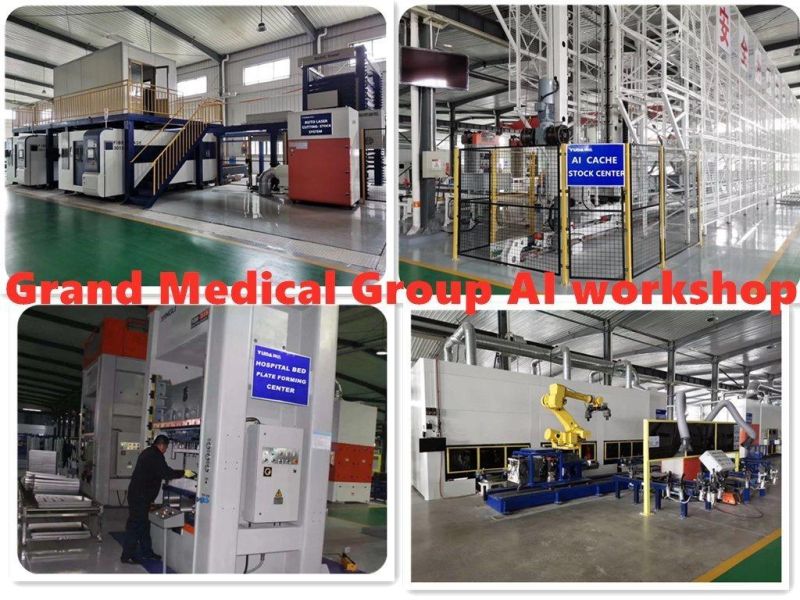

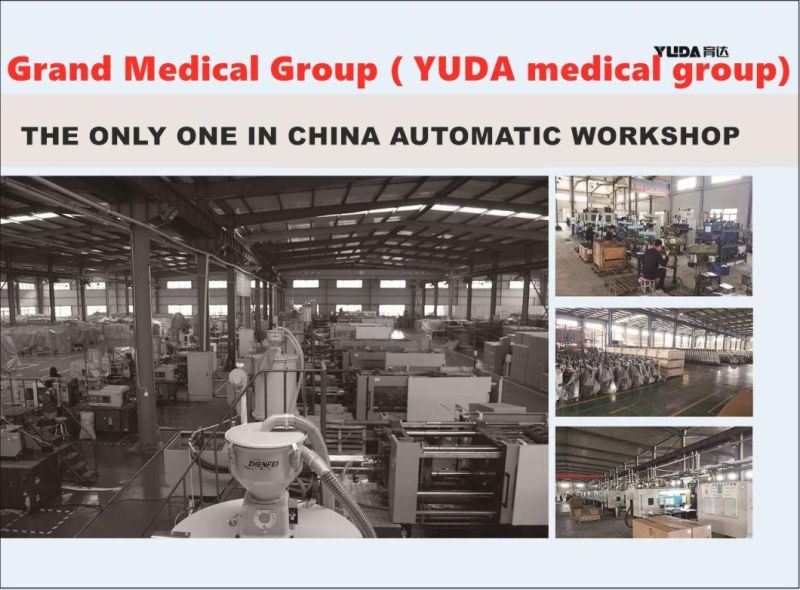

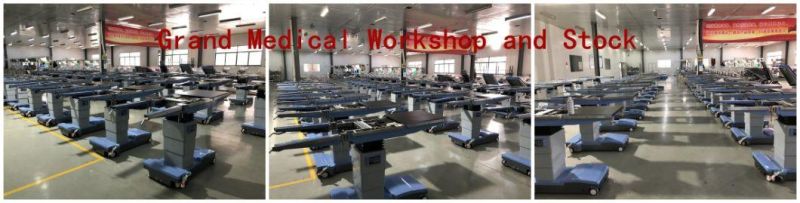

Factory Workshop







             Company Introduction

    Grand Medical is a merged group.( the premier founder is YUDA medical group). It is established in 1992. The factory is located at Yanzhou economic development zone, Shandong Province, China. In 1992 year, YUDA medical group established, by producing hospital beds and medical carts.
     We accumulated rich experience and technology. In 1998, we begin to produce OR equipment, like operating lamp, operating table and medical pendant. Since 2009, we constanly invested more than 30 million dollars on modern factory workshops to improve the production technology for hospital furniture, OR equipment, and ICU equipment, and R&D on medical imaging radiology, like digital X-ray imaging machine, monitor and ultrasound machine.Since 2015 year,  we became largest medical manufacture group in North China,  covers more than 480,000 square meters factory, with 38 workshops, and globally marketing system.
       In the year 2020, Grand Medical Group, by inner prdoucts workflow growth,  strategic merger and with the third factories participation, becone an extensive medical coverage manufacture enterprise. With more than 30years experience, we are equipped to serve every possible global  heatlh programme and cater for every medical supply need that our customer may have.






      FAQ

Q: Are you manufacturer ?
A: Yes,we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,ISO13485?
A: Yes,our products are approved by CE,ISO13485, FDA, Russia CE.
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Payment term?
A: 1.L/C at sight;
    2.T/T:30% deposit by T/T,70%balance by T/T before shipment
    3.Trade term:EXW, FOB Shanghai or CIF&CFR
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
    2.All of the productions are inspected carfully by QC before delivery.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is5-10 days after receiving the deposit;
If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30days,It depends on the quantity of order
Q: What is your Min.order?
A: There's no minimum quantity
