Medical Traction Linear Actuator 8000N
Wuxi JDR Automation Equipment Co., Ltd.- Material：Plastic + Metal
- Folded：Medical Bed Motor
- Transport Package：Standard Export Carton
- Specification：CE , RoHS
- Trademark：JDR
- Origin：China
Base Info
- Model NO.：FY013
- HS Code：8479909090
- Production Capacity：5000 Sets , Month
Description
Basic Info.
Model NO. FY013 HS Code 8479909090 Production Capacity 5000 Sets / MonthProduct Description

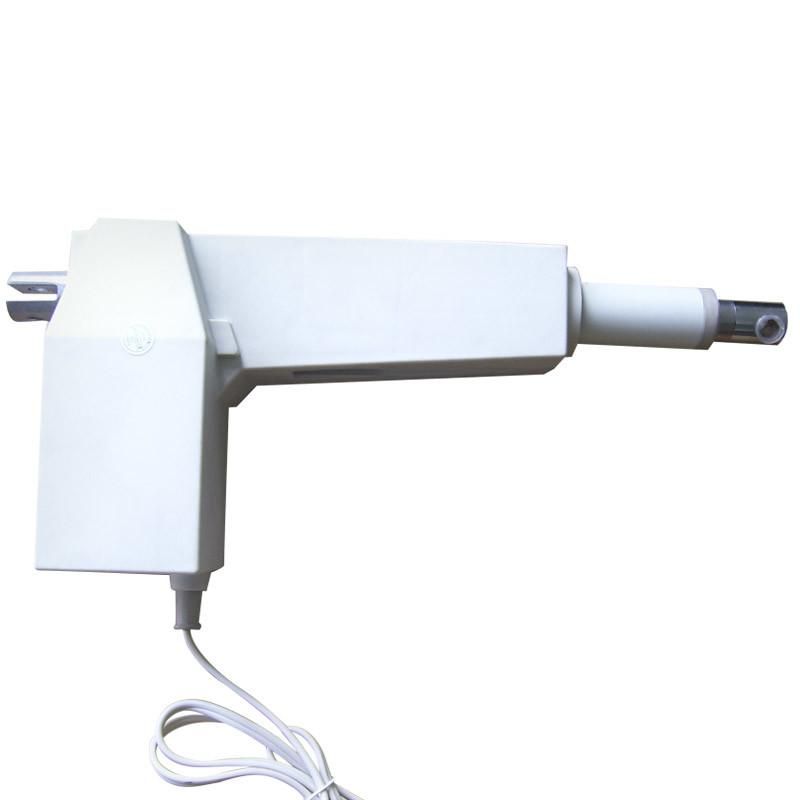

Medical Traction Linear Actuator 8000N1) Medical Linear Actuator
2) Used in Medical traction bed.
3) CE, RoHS approval

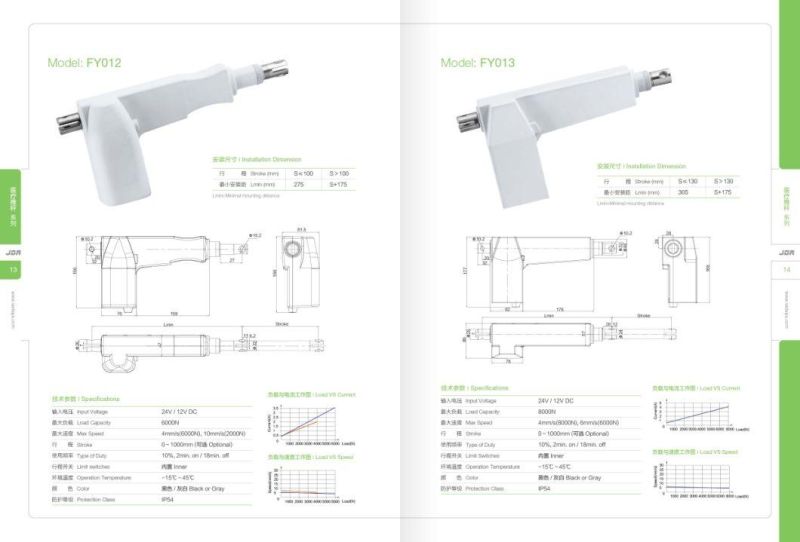

Specifications of FY013 Linear Actuator:
Name: Linear Actuator
Model: FY013
Usage: Electric Nursing Bed, Electric Hospital Bed, Personal Care Bed, other Application use
Input Voltage: 24V DC
Load Capacity: 6000N, 8000N
Free Load Speed: 4mm/s, 3mm/s
Standard Stroke: 50 mm --- 1000mm (Optional)

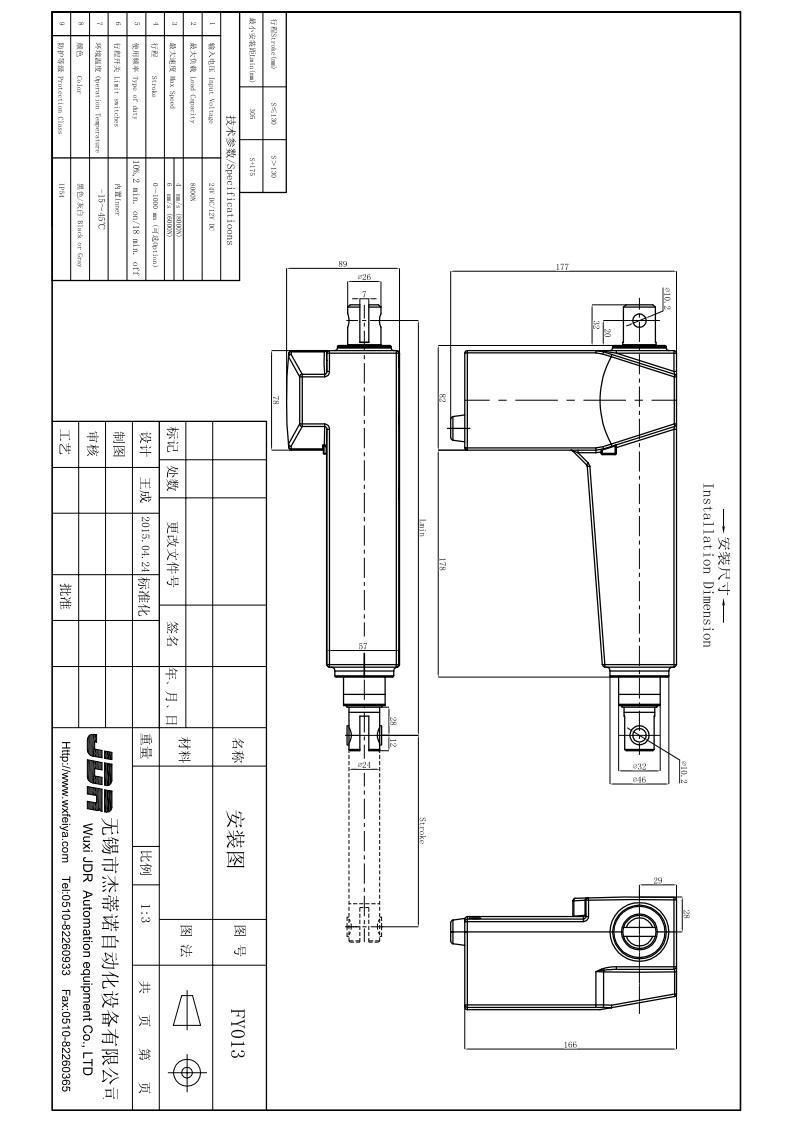

Installation Dimension: S + 175mm
Type of Duty: S2 -- 10 min (2 minutes work, 18 minutes rest)
Limit Switch: Builtin / Inner (can not be adjust after left factory)
Work Temp.: -26 to 65 centigrade
Protection Grade: IP54
Certificate: CE / EMC + LVD, RoHS
