• Model NO.：FY016
• Limit Switches：Inner
• Mini Install Dimension：581+_2mm
• Warranty：2 Years
• Color：Gray and Black
• Protection Class：IP22
• Type of Duty：S2-10min
• Transport Package：in Standrd Box or as Required
• Specification：DUAL MOTOR
• Trademark：JDR
• Origin：Jiangsu, China (Mainland)
• HS Code：84799090
• Production Capacity：1, 4000PCS,Month

Basic Info.

Model NO. FY016 Limit Switches Inner Mini Install Dimension 581+_2mm Warranty 2 Years Color Gray and Black Protection Class IP22 Type of Duty S2-10min Transport Package in Standrd Box or as Required Specification DUAL MOTOR Trademark JDR Origin Jiangsu, China (Mainland) HS Code 84799090 Production Capacity 1, 4000PCS/Month

Product Description

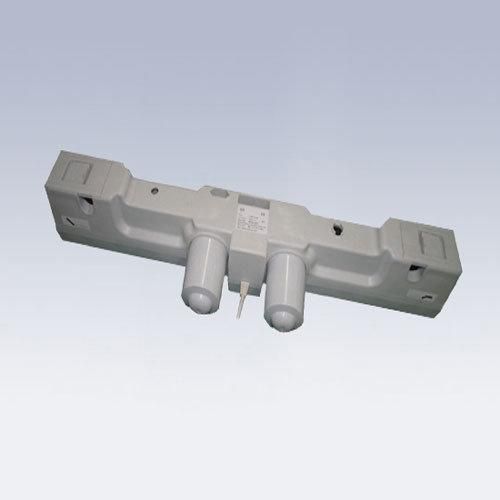

Dual Actuator:

1) dual linear actuator

2) used for home bed

3) electric double motors

4) CE ceritificate

Dual Actuator with emergency function under no power

Features

1. This dual actuator can return to its close status when the power fails suddenly

2. Dual motor is a perfect motorized system for the adjustment of patient bed and healthcare bed

3. The characteristics of this actuator are easy intallation and free operation

4. It is advanced on the base of single actuator

5. Customers can adjust the back or foot individually or jointly, depending on personal requirement

Specifications

1.24V DC twin drive

2. Max Pushing force: 2x4500N

3. Standard stroke 87-69/87-87/69-69mm, other strokes are on request

4. Max pushing speed 4.3mm/s

5. Power supply: 100-110V/220-240V

6. Duty cycle: 2/18 mints. 10%

8. Smart, slinky, original design

9. Installation dimension: 581mm + 2mm

10. Protection Class: IP22

11. Ambient temperature: -5 to 40

12. Color: Black or White

13. Built-in limit switch, not adjustable after leaving the factory

14. Mains isolation in the mains plug.

15. With overload protection function

16. With emergency function under the sudden power failure

17. Strong intensify plastic housing protects motor and gear

18. Low noise design, dB < 48 (A)

19. Connectivity: 1 handset or 1 handset & two single actuators

Name:	Dual  Motor  /  Actuator
Model:	FY016
Usage:	Electric  Bed,   other  Application  use
Input  Voltage:	110v  or  230v  AC
Load  Capacity:	2  x  4500N,   2  x  6000N  (optional)
Free  Load  Speed:	5mm/s
Standard  Stroke:	63mm,   74mm,   69mm,   87mm
Installation  Dimension:	581mm  (more  or  less  2mm)
Type  of  Duty:	S2  --  10  min  (2  minutes  work,   18  minutes  rest)
Limit  Switch:	Builtin  /  Inner  (can  not  be  adjust  after  left  factory)
Work  Temp.:	-26  to  65  centigrade
Protection  Grade:	IP22
Certificate:	CE  /  EMC  +  LVD,   RoHS
Control  Box  Used:	Builtin  /  Inner  Control  Box,   Can  connect  1  -  2  linear  actuators,   and  1  handset
Handset  Used:	FYH019,   FYH018-3,   FYH012-3,   FYH021-W3 Pls  contact  us  for  detail  pictures.
