• Model NO.：Electric Hydraulic Surgical Operating Table DT-12E
• Table Height：690mm~1100mm
• Length and Width：1960mmx500mm
• Reversed Trendelenburg/Trendelenburg：30o
• Lateral Tilt (Left/Right)：20o
• Head Rest(up/Down)：40o,90o
• Back Rest (up/Down)：90o,40o
• Footboard(up/Down&Horizontal Position)：15 O,90o,90o
• Longitudinal Sliding：350mm
• Kidney Bridge Range：120mm
• Power：110~220V,50~60Hz;1.0kw
• Transport Package：Standard Export Packing Box
• Specification：CE
• Trademark：Mermaid
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. Electric Hydraulic Surgical Operating Table DT-12E Table Height 690mm~1100mm Length and Width 1960mmx500mm Reversed Trendelenburg/Trendelenburg 30o Lateral Tilt (Left/Right) 20o Head Rest(up/Down) 40o/90o Back Rest (up/Down) 90o/40o Footboard(up/Down&Horizontal Position) 15 O/90o/90o Longitudinal Sliding 350mm Kidney Bridge Range 120mm Power 110~220V/50~60Hz;1.0kw Transport Package Standard Export Packing Box Specification CE Trademark Mermaid Origin China Production Capacity 5000PCS/Year

Product Description

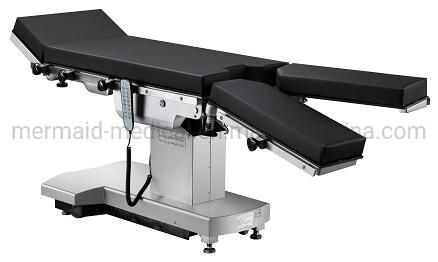

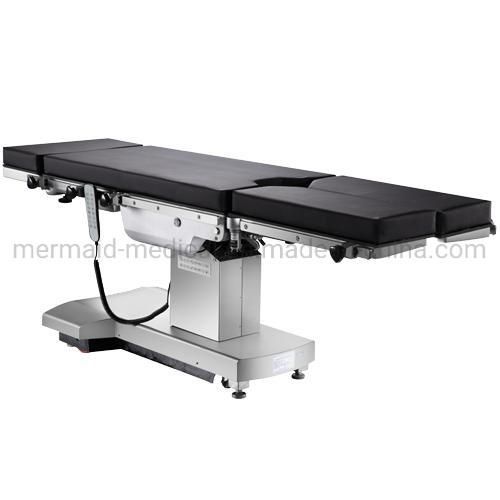

Medical Equipment Electric Hydraulic Operation table DT-12E

Medical Equipment Electric Hydraulic Operation table DT-12E FEATURE:

• With reference to the advantages of congener products from home and abroad, can meet the demands of different positions on operation.
• 24v battery that meets the operating demands for one week, better ensure the table work under safe voltage.
• Electrmotion facilitates the various adjustments of positions;Intellectualized reposition enables the table a quick return to horizontal position.
• Automatically lockable remote control in case of wrong operation.
  Large-scale elevation makes it easier for c-arm fluoroscopy examination.
• With built-in kidney bridge suit for kidney operation.
• Optional traction for orthopedics, head rest for aural surgery, extend functions of the table the cover all adopted premium 304 stainless steel, the main body used cast aluminum, anti-rust and corrosionthe tabletop adopted phenol aldehyde photograph board which is suitable for x-ray.
• Key parts, such as electrical pump and electromagnetic valve, adopted imported products from Taiwan.

Specification

Table height	690mm~1100mm
Length and width	1960mmx500mm
Reversed trendelenburg/trendelenburg	30º
Lateral tilt (left/right)	20º
Head rest(up/down)	40º/90º
Back rest (up/down)	90º/40º
Footboard(up/down&horizontal position)	15 º/90º/90º
Longitudinal sliding	350mm
Kidney bridge range	120mm
Power	110~220v/50~60hz;1.0kw
Load capacity	250kg
Battery specification	12volt 9ah

Standard accessories


1	Pads:1 set
2	Leg support:1 pair
3	Arm support:1pair
4	Shoulder support:1 pair
5	Body support:1 pair
6	Anesthetic screen:1 pc
7	Footboard:1pair

Operating Table DE-12E Medical Equipment, Electric Hydraulic
