• Product Name：Hospital Beds
• Overall Size：2270*970*500mm
• Safe Working Load：250 Kgs
• Back Rest Adjustment：0-75
• Knee Rest Adjustment：0-35
• Castors：4 PCS,125mm
• Configuration：Manual Cranks; 5" Covered Castors; Foldable Side R
• Warranty：12 Months
• Certificate：ISO 13485
• Factory Location：Shanghai Pudong District
• Transport Package：Carton Box or Wooden Case
• Specification：0.2 m3
• Trademark：Zenva
• Origin：China
• HS Code：94054090
• Production Capacity：1000,Month

Technical Parameters:
External Size (L*W*H): 2270*970*500mm
Mattress Platform: 1925*830mm
Safe Working Load: 250 KGS
Back-rest adjustment: 0-75° (±10°)
Knee-rest adjustment: 0~35°(±10)

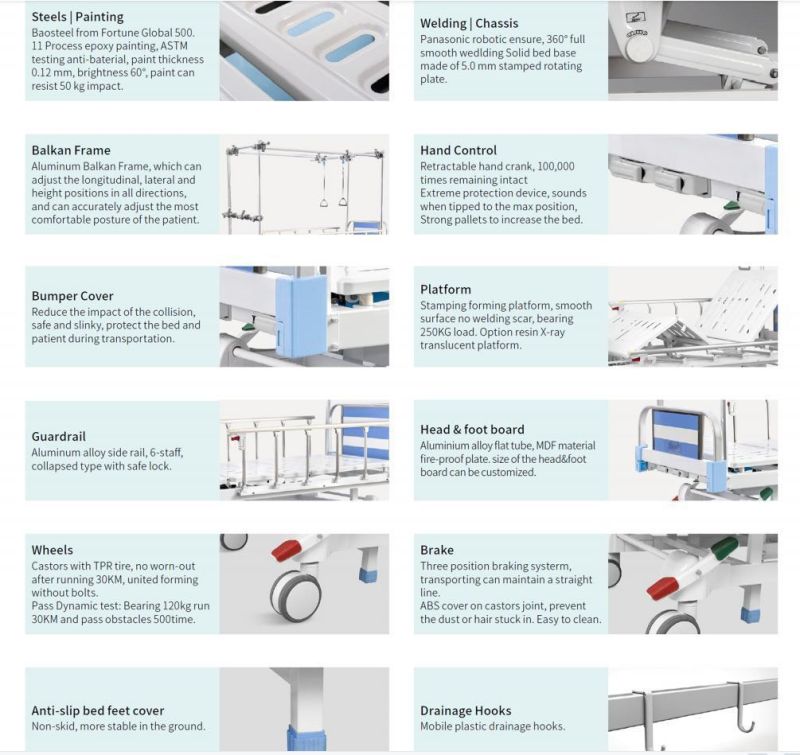

Technical Configuration:
Manual Cranks: 3 pcs
5" Covered Castors: 4 pcs
Foldable Side Rail: 1 Set
IV Pole: 1 Set
IV Pole Prevision: 4 pcs
Drainage Hook: 4 pcs
Central Locking Pedal: 2 pcs
Aluminum Alloy ABS Head and foot Board with safe lock: 1 Set  Aluminum Alloy foldable side rail: 1 Set

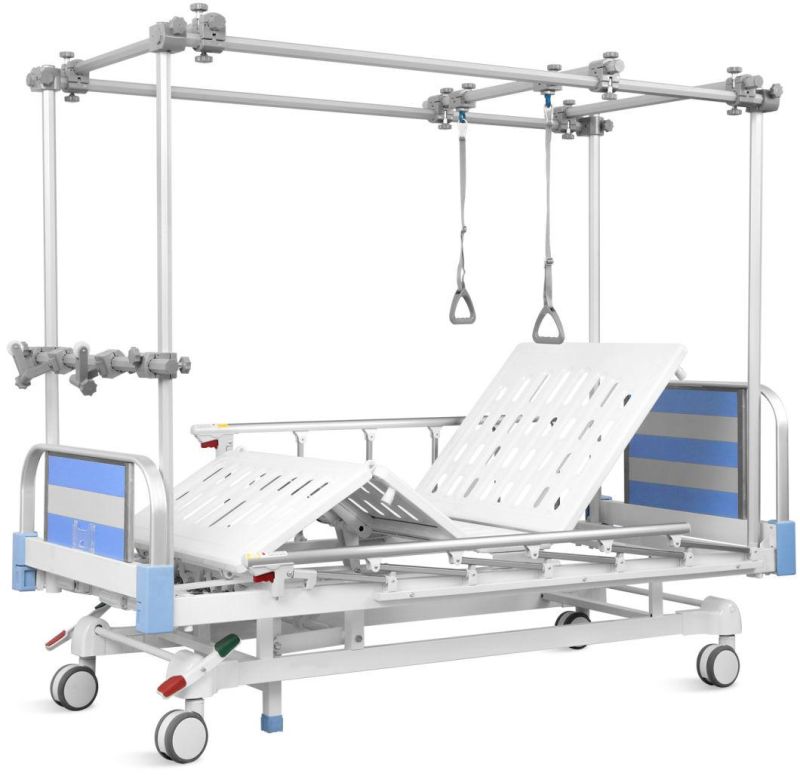

Aluminum balkan frame: 1 SetAccessoris of Hospital Beds:

Manual Introduction:

Hospital beds are essential equipment for the well-being, treatment and recovery of bedridden patients. Hospital beds allow patients to remain in more comfortable position as well as in positions sometimes recommended by doctors, which would be very difficult in a normal bed, where one would always have to be placing or removing supports.
Hospital beds can be manual or automatic. The automatic hospital bed has its functions controlled by buttons on the side panels of the bed or via remote control. The manual hospital bed has 2 movements triggered by cranks, having the elevation of the headboard, which facilitates the moment of feeding, also avoiding refluxes and facilitating breathing and also has elevation of the part of the feet that will cause it to improve the blood circulation of  the lower limbs, in view of the long period that the patient will spend lying down.
On the other hand, patient safety is very important at this time of recovery, so all of our beds have a side protection rails. preventing the patient from going at night and running risks of falling.

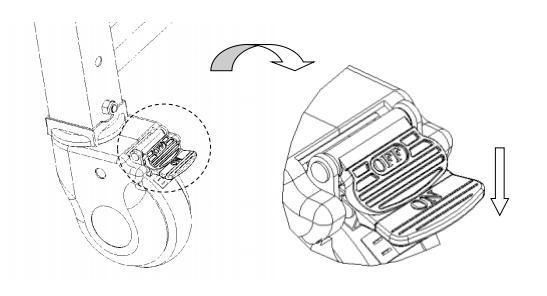

 (Un)Lock the Caster:
After pushing the bed to the desired position, press the ON/OFF button with your foot and (Un)lock the caster when you hear a "click", as shown in the figure below Raise the guardrail:

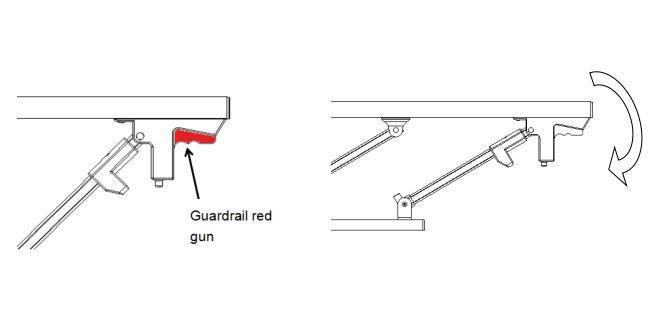

Hold the red gun of the guardrail and lift it up. When you hear the sound of "click", it means the guardrail is locked.

Lower the guardrail:

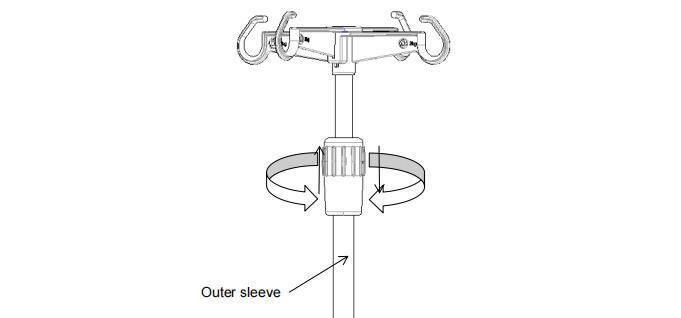

Hold the guardrail red gun and slowly lay down Adjusting the height of the IV Pole:
1. Loosen the outer sleeve counter clock carefully, insert the inner tube of the IV pole into the outer sleeve, and then adjsut the length of the extension rod up and down;
2. Adjust the required length, and then tighten the outer sleeve clock carefully. The maximum bearing of each hook is 2 Kg, a total of 8 kg
(Height Adjustment: 890~1540 mm) Back up and down:

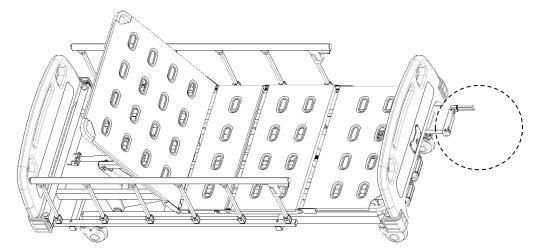

Pull out the manual crank handle and turn clock wisely to lift the back and turn counter clock wisely to lower the back.
Leg up and down:
Pull out manual crank handle and turn it counter clock wisely to lift the leg and turn it clock wisely to lower the leg.
Whole bed lifting:

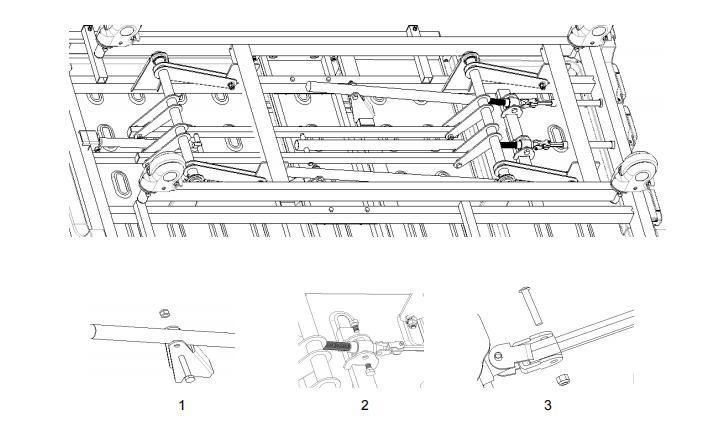

Pull out the middle rocker level and turn counter clockwise to realize the whole bed lifting, and turn clockwise to realize the whole bed lowering. Use 2 pcs 17 inch Allen wrenches to Unscrew the telescopic rocker knot, take out the bolt, and replace the rocker. When the replacement is completed, install the bolts in the order shown in the figure, and use the wrench to tighten the knot
Feedbacks:
Company Description:

Shanghai Zhenghua Medical Equipment Co.,Ltd established in 1993, is a professional manufacturer engaged in the research, development, production, sale and service of Medical Pendants, Operation Light, Operation Table and MGPS system, Turnkey Operating Room Project, Cleaning System of Operating room. In 2013, it established another company "Shanghai Etar Mechanical And Electrical Technology Co.,Ltd", which specifically exports Shanghai Zhenghua's all products to overseas.

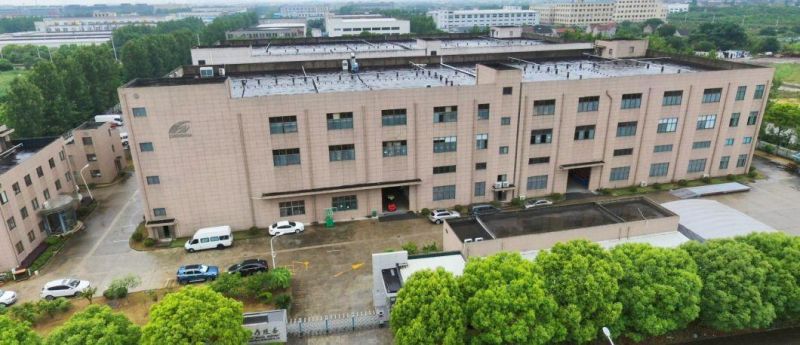

*** Our Factory Location ***
