• Model NO.：Operation Table (Electric Hydraulic ECOH006)
• Length and Width：2100mmx500mm
• Reversed Trendelenburg/Trendelenburg：20o
• Lateral Tilt (Left/Right)：15o
• Head Rest(up/Down)：45o,90o
• Kidney Bridge Elevated：80mm
• Leg Section Lowered From The Horizontal：90o
• Safe Working Load：135kg
• Transport Package：Standard Export Packing Box
• Specification：CE
• Trademark：MEDECO
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. Operation Table (Electric Hydraulic ECOH006) Length and Width 2100mmx500mm Reversed Trendelenburg/Trendelenburg 20o Lateral Tilt (Left/Right) 15o Head Rest(up/Down) 45o/90o Kidney Bridge Elevated 80mm Leg Section Lowered From The Horizontal 90o Safe Working Load 135kg Transport Package Standard Export Packing Box Specification CE Trademark MEDECO Origin China Production Capacity 5000PCS/Year

Product Description

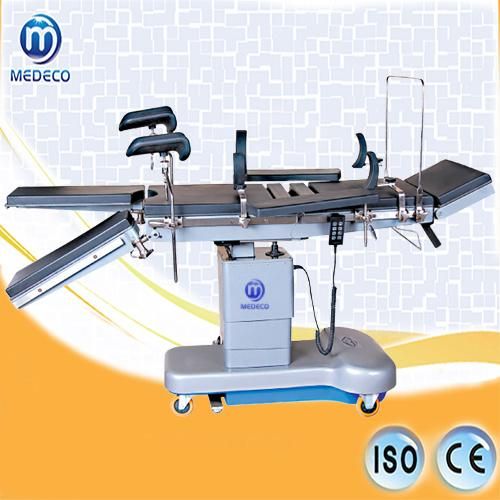

Electric  Operating Table ECOH006

The product is designed for head, neck, throax and abdomen, perineum as well as gynecology and obstetrics,orthopaedics and so on operations.
The table's elevation, lowering, reversed trendelenburg; trendelenburg,lateral tilt are all automatically controlled by the Button,the back section elevation is controlled by high pressure gas jar. It can be adjusted easily.
The airproof base is dustproof, waterpr-oof and stable,its model is easy for doctor to near the parient, and reduces the doctor's weary. The table is made of high-strength synthetic boards, it can penetrate the X-ray, it is advantageous for the perspective and the photography. Senior PY foam material is optional for mattress, it also can be used with C-arm.

Fiberglass reinforced plastic or Stainless steel is optional for the cover of base.
 Specifications
Dimension of table top:
Overall Length...............................…2100mm
Width....................................…...........500mm
Dimension of section:
Head Section.................................…250×500mm
Back Section......................................545×500mm
Waist Section.....................................75×500mm
Seat section.......................................450×500mm
Leg Section.................................…...600×240mm
Table top of from floor
Min Height..........................................750mm
Max Height....................................…1000mm
Adujst.................................................250mm

Structure:

Electric Operating Table is made up of the table top, the main part, the electric controlling part and the accessories, etc. It's raising, lowering, lateral tilt, trendelenburg and reversed trendelenburg,backward and forward movements are all drived by the motors.

The table top is made up of head section, back section, seat section, leg section, foot section and kidney bridge.
The head section and the foot section can all be disassembled. The head section can be raised or lowered from the horizontal. The leg section can be lowered from the horizontal and opened.
The table top can be move backward and forward on the main if necessary. The distance of displacement is longer than 400mm. The table top is made of engineering plasties, thus X-ray examination of can be carried out on it.

Range of movements:

Reversed Trendelenburg.................................…........≥20°
Trendelenburg.................................…........................≥15°
Lateral Til....................................................................≥15°
Backward and Forward Movements............................≥250mm
Adjustment of sections:
Head Section Raised  from the horizontal..................≥45°
Head Section lowered from the horizonta...................≥90°
Back Section Raised from the horizontal.....................≥75°
Back Section Raised from the horizontal.....................≥30°
Leg Section Lowered from the horizontal....................≥90°
Leg section opened....................................................≥90°
Kidney Bridge Elevated...............................................≥80mm
Lifting speed................................................................4~16mm/s
safe working load........................................................135kg
 Device safety sortI     B
Ingress Protection:IPX4
Power:(AC)220V,50Hz
Internal electric source:(DC)24V
 Battery capacity ≥ 2.4AH


Numberal order	Name of accessories	Number
1	Head section	1
2	Anaesthetic Screen	1
3	Body support	Large 1.smart 1
4	Shoulder support	2
5	Arm rest	2
6	Knee crutch	2
7	Cushion	1
8	Body Restraint Strap	1	Optional
