• Model NO.：PA-500
• Condition：New
• Tidal Volume：50-1500ml
• Display：10.4TFT Color Screen
• I:E Ratio：4:1~1:4
• Peep：0~10CMH2o
• Simv Rate：1~20bpm
• Transport Package：Wooden Box
• Origin：China
• HS Code：980000000
• Production Capacity：500PCS,Month

Basic Info.

Model NO. PA-500 Condition New Tidal Volume 50-1500ml Display 10.4TFT Color Screen I:E Ratio 4:1~1:4 Peep 0~10CMH2o Simv Rate 1~20bpm Transport Package Wooden Box Origin China HS Code 980000000 Production Capacity 500PCS/Month

Product Description

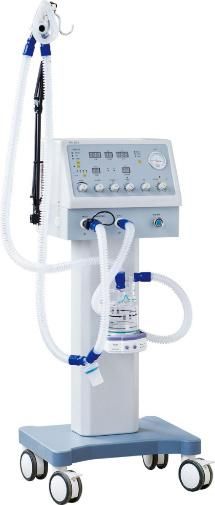

PA-500 LED display ventilator



Specifications

1. Pneumatically driven electrically controlled ventilator, can be used for emergency clinical resuscitation and respiratory therapy
2. Display: High visibility, wide angle LED alphanumeric data display, equipped with tactile analog parameter controls
3. Equipped with high precession infrared turbine pressure and flow sensors
4. Power failure support functions: Automatically converts to standby mode during AC power outages
5. Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
6. Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure oxygen failure and other alarms.
7. 9 Level adjustable humidifier


Model	500
Display	LED
Ventilation Mode	A/C, IPPV, SIPPV, IMV, SIMV, MANUAL
Minute Volume	Greater than or equal to 18L
Back-up Power Supply	At least 4 hours
Tidal Volume	Adjustable range: 50-1500ml, Display range: 0-2000ml
Output Oxygen Concentration	<50%
Respiratory Rate	6-60bpm
Pressure Limit	1-6kPa
Inspiratory/Expiratory (I:E) Ratio	1:1.5-1:3.0
PEEP	1-10cmH2O
SIMV Rate	1-12bpm
Inspiratory Pressure Trigger	.-4-10cmH2O
Maximum Safe Operating Pressure	≤6.0 kPa
SIGH	1 sigh breath in every 80-120 breaths
Airway Pressure Alarm	Upper Limit: 0.9~5.4kPa, Lower Limit: 0.5kPa
Gas Supply Requirement	280~600 kPa medical grade oxygen
