• Model NO.：PLX118WF

CategoryItemsContentGeneratorPower Supply
High frequency inverterPower output:5.0kW
Main inverter frequency:110kHzAutomatic fluoroscopyTube Voltage 40Kv~120Kv,adjust automatically
Tube Current:0.3mA~4mA,adjust automaticallyManual fluoroscopyTube voltage:40Kv~120Kv,continuous
Tube  Current:0.3mA~4mA,continuousPulse fluoroscopyTube voltage:40Kv~120Kv,continuous
Tube  Current:0.3mA~4mA,continuousPhotography tube voltage,mA40Kv~120Kv,25mA~100mA,1.0mAs~280mAsX ray tubeX-ray tube special for high frequencyDual focus:0.6/1.8mm
Thermal capacity:650Kj(867kHu)
Package:
2500*1200*1480mm, total 4.5m³, Gross weight: 650kg, Net Weight: 500kg

Application:
Emergency Department, General Surgery, Spine Surgery, Orthopedics, Urology,
Gynecology,Trauma, Pain Managerment, Plastic Surgery, Operating Room etc.

Configuration:1C-arm new design mainframe 1 set2Combined high-frequency high-voltage X-ray generator monoblock(5.0kW, 110 kHz,40-120kV)1 set319 inch 1M LCD2 sets49*9 inch Dynamic flat panel detector1 set5Digital acquisition and processing workstation 1 set6Imported dense grain grid 1 set7Electric adjustable beam limiter (multi-layer electric variable rectangular lead door)1 set8handheld controller1 set9Red light cross positioner2 sets10Unique hand-held controller1 set
Technical specification:CategoryItemsContentGeneratorPower Supply
High frequency inverterPower output:5.0kW
Main inverter frequency:110kHzAutomatic fluoroscopyTube Voltage 40Kv~120Kv,adjust automatically
Tube Current:0.3mA~4mA,adjust automaticallyManual fluoroscopyTube voltage:40Kv~120Kv,continuous
Tube  Current:0.3mA~4mA,continuousPulse fluoroscopyTube voltage:40Kv~120Kv,continuous
Tube  Current:0.3mA~4mA,continuousPhotography tube voltage,mA40Kv~120Kv,25mA~100mA,1.0mAs~280mAsX ray tubeX-ray tube special for high frequencyDual focus:0.6/1.8mm
Thermal capacity:650Kj(867kHu)Structure and
performance Detector 9*9 inch Dynamic flat panel detectorAmorphous silicon cesium iodideImage acquisition matrix: 1024*1024Gray scale of image acquisition: 16bitPixel size:205μmDQE:74%Spatial resolution:2.5LP/mm
WIFI Features:
1. Wifi Free workstation , more flexible ,higher efficiency
2. Full digitalization Wifi & wireless Transferring system, High flux, Real-in-time High speed Data transmission
3. Remote transmission, signal stable.
4. Super stability
    Real-in-time imaging acquisitation and Super-stability of imaging.
5. No trouble
    Free from the troubles & influence of broken cables and related repair
6. Wireless
    Wireless design of the connection C-arm and workstation, free movement and more fast and convenient.
    No need for extra assistance & One single doctors can finish the movement of the C-arm and workstation. Decrease the quantity of operaters and workload.
7. No loss
    High Definition Excellent image

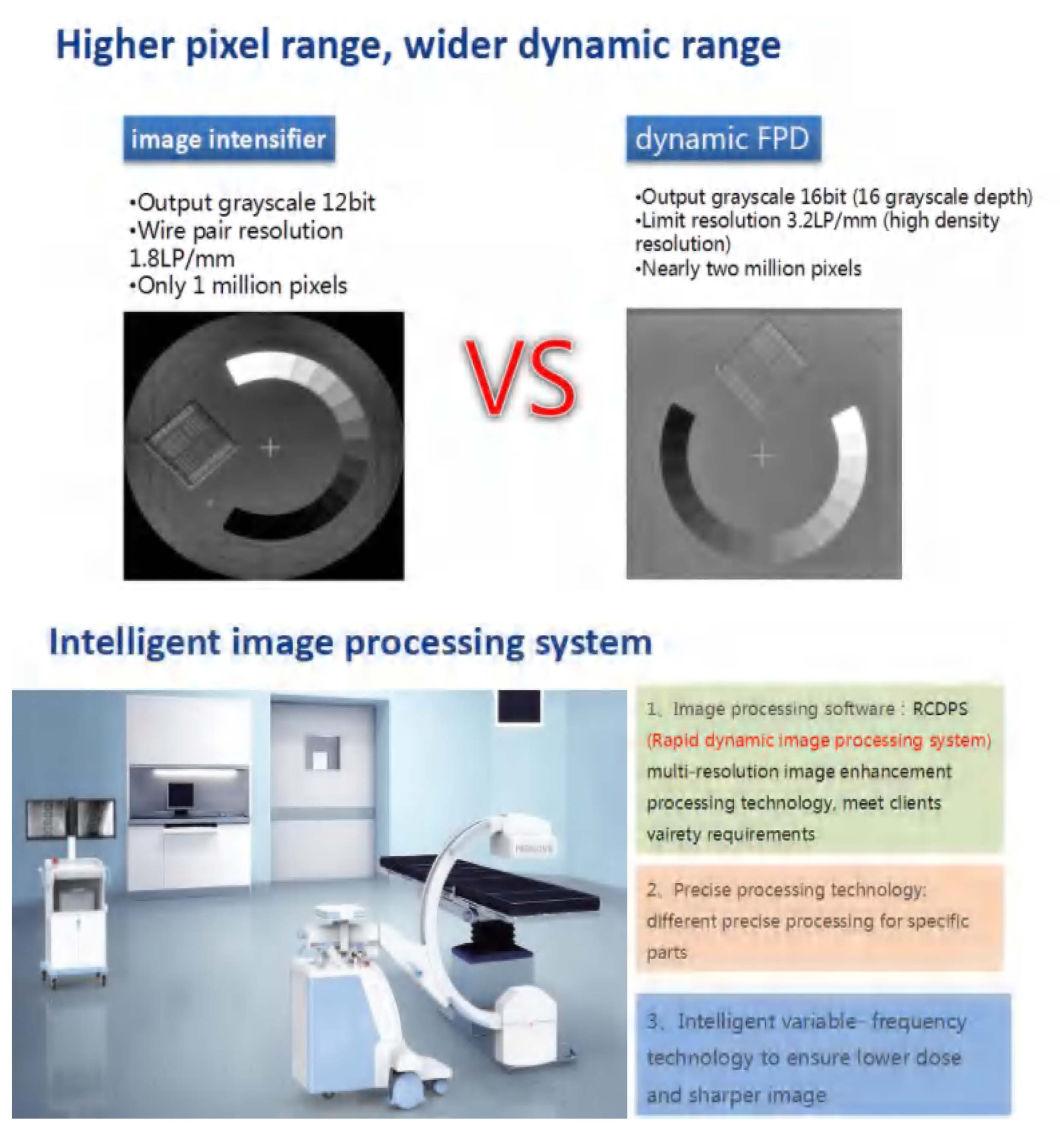

8. The latest dynamic flat panel detector
9. No distortion:
    A-Si flat panel detector, full digital imaging chain, distortionless imaging
10. Larger view:
      Large-size flat panel detector for various clinical examinations
11. Higher Definition
      Higher DQE, low noise, exquisite image
12. Large dynamic range:
      Large dynamic range, high gray scale, low dose, great imaging performance
13. Equipped with proprietary intellectual property rights---"Vinci" image processing system:
      RCDPS --- rapid calculate display platform
      GPU --- based dynamic real-time image processing technology and automatic brightness
      tracking makes it easy to get sharp image of various body parts and meet the diverse needs of customers.
14. Seamless connection Remote maintenance
15. DICOM 3.0 international standard interface, seamless connection with cloud PACS system for
      information sharing and remote diagnosing.
16. Self-diagnosis with error-code displaying and remote maintenance make it easy for repair
17. Barrier-free design Easy to operate, more intimate

Bass movement
18. Bass operation, smooth motion
19. The rack is small and flexible, the thrust is light, the turning radius is small, and the climbing ability is strong.
20. Female medical staff can easily grasp, free movement inside and outside the operation room

Unique balance
21. Unique balance design for true balance
22. The C arm has a safety lock at any position, maintaining a reverse balance and operating freely.

Remote control
23. Parameter handheld controller design, can control the device away from the host, adjust parameters as desired

Two-way positioning
24. The tube and flat panel detectors are equipped with a two-way red light cross positioning system to help doctors efficiently locate during surgery

Intelligent dose
1. Intelligent human body graphic LCD touch screen
2. Different image processing methods according to different parts Different doses of different parts, different doses and different frequencies Intelligent frequency conversion reduces dose and pursues excellent image

Silent indication
1. Color motion control handle logo for quick and accurate communication between medical staff
2. Early warning, exposure, failure, configuration of different light tips 360° no dead angle to observe the working state of the machine

25. Worry-free radiation, ensure health, more reassuring
26. Intelligent frequency variation pulse fluoroscopy technology
27. Self designed high frequency high voltage generator becomes the Chinese leading intelligent frequency variation technology with low dose pulse fluoroscopy, which immensely improve the image quality while decrease by 50%-80% radiation dose and secure the safety during clinic work
28. Intelligent low-dose mode
29. High-quality image chain, with intelligent frequency variation low-dose working mode,according to different parts of the human body, adopt different image processing methods,different doses to different parts, different doses with different frequencies. Ensure excellent image quality while secure the operation with lower radiation.
30. Effective protection from compartment exposure
31. Wireless workstation, compartment exposure, effectively reduce radiation and protect the health of medical staff

Features:
1.With a compact appearance,light design, easy to operate
2.Unique base electric auxiliary support arm design, it's more security for using.
3.A unique hand-held controller design, convenient to operate working mode.
4.With a high-quality knockdown X-ray generator to reduce radiation.
5.With the Perspective KV , MA automatically track fluoroscopy to make the image brightness and clearness optimum
6.imported FPD 9*9inch acquisition,ensure sharp image .
7.Workstation:
   Registration: registration, medical records, Worklist
   Collection: Start collection; prepare video, reset, horizontal mirror, vertical mirror, window adjustment, magnifying glass, negative image
Open silhouette, edge enhancement, recursive noise reduction
   Processing: four windows, nine windows, sharpening, horizontal mirror, vertical mirror, text annotation, length measurement
   Paper Report: save, preview, expert annotation.
   Dicom features: Dicom browsing, web service , Dicom3.0 interface to connect with PACS,OR HIS SYSTEM, and dry film printer
8.Automatic dynamic motion detection when fluoroscopy to avoid movement-related blurring, no silhouette.
9.Human graphic interface on workstation for select different body parts ;like children, or adult, lateral or formal standing to do exposure.
10.3 sets synchronous monitors to help doctor have a great observing experience.
11.Error Code alarming for overloading of current, kv, or power and any problems.
12.Equipped with emergency stop button to suddenly failure or wrong operation.
