• Model NO.：FY012
• Condition：New
• Load Capacity：6000 N
• Input Voltage：24V
• Stroke：50~1000mm Optional
• Protection Class：IP54
• Mini Install Dimension：S+175mm
• Limit Switches：Inner
• Warranty：2 Years
• Type of Duty：S2-10min
• Usage：Furniture Equipment, Sofa
• Transport Package：in Standrd Box or as Required
• Specification：4000N
• Trademark：JDR
• Origin：Jiangsu, China (Mainland)
• HS Code：940190900
• Production Capacity：1, 4000PCS,Month

Basic Info.

Model NO. FY012 Condition New Load Capacity 6000 N Input Voltage 24V Stroke 50~1000mm Optional Protection Class IP54 Mini Install Dimension S+175mm Limit Switches Inner Warranty 2 Years Type of Duty S2-10min Usage Furniture Equipment, Sofa Transport Package in Standrd Box or as Required Specification 4000N Trademark JDR Origin Jiangsu, China (Mainland) HS Code 940190900 Production Capacity 1, 4000PCS/Month

Product Description

Input Voltage: 24 v DC

Load Capacity: 6000N

Max Speed: 4MM/S(4000N), 9mm/s(2000N)

Stroke: 0~1000mm(option)

Type of duty: S2-10min

Limit switches: Inner

Operation Temperature: -26--65 centigrade

Protection Class: IP54

Certification: CE/EMC+LVD, RoHS

Type: Furniture part

Material: Metal and plastic

Use: Traction bed

Place of origin: Jiangsu, China(mainland)

Function: Driving

Shape: Linear

Power: DC

More inforamtion

1) 24VDC permanent magnet motor

2) Thrust up to 6000N in push, and up to 4000 N in pull

3) Elegant and compact design with small instanllation dimensions

4) Built-in limit switches ( not adjustable after leaving factory )

5) Aluminium or zinc outer tube / inner tube

6) Electric chromate steel piston rod eye with slot

7) High-strength plastic housing protects motor and gears

8) Standard protection class: IP 54

9) Scratch and wear-resistant power painting

10) Noise level < 50 dB

11) Warranty: Two years

12) Duty cycle: 10%, or 2 munutes continous working followed by 18 minutes not in use

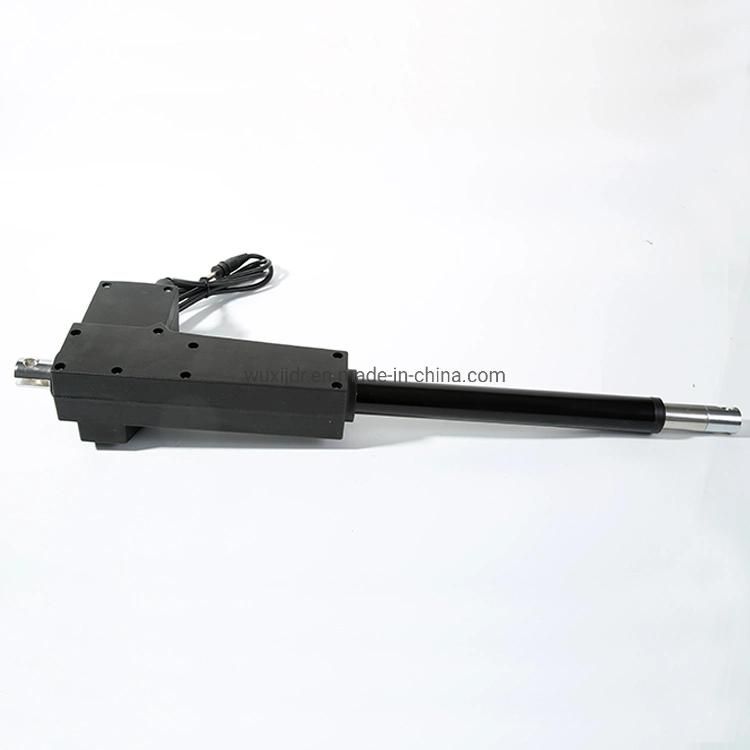

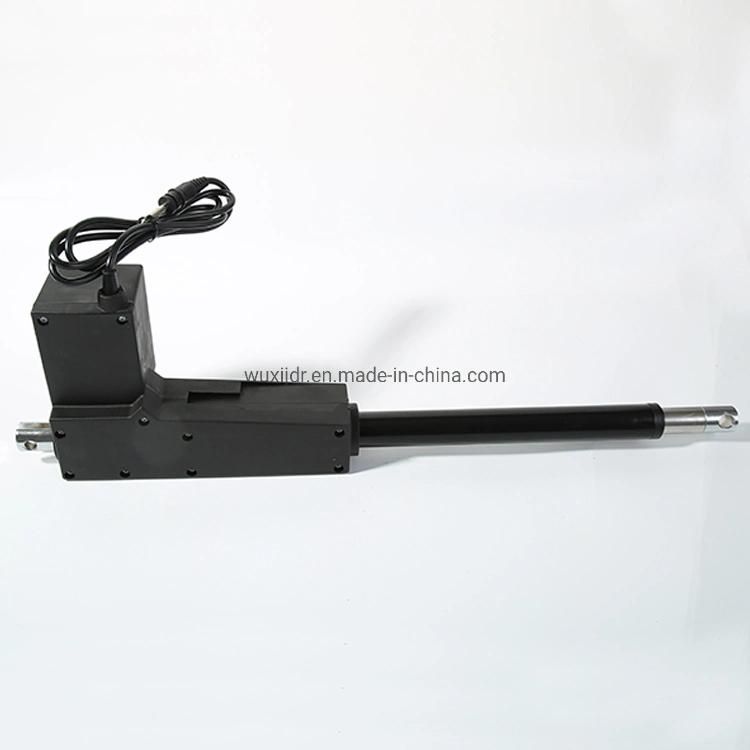

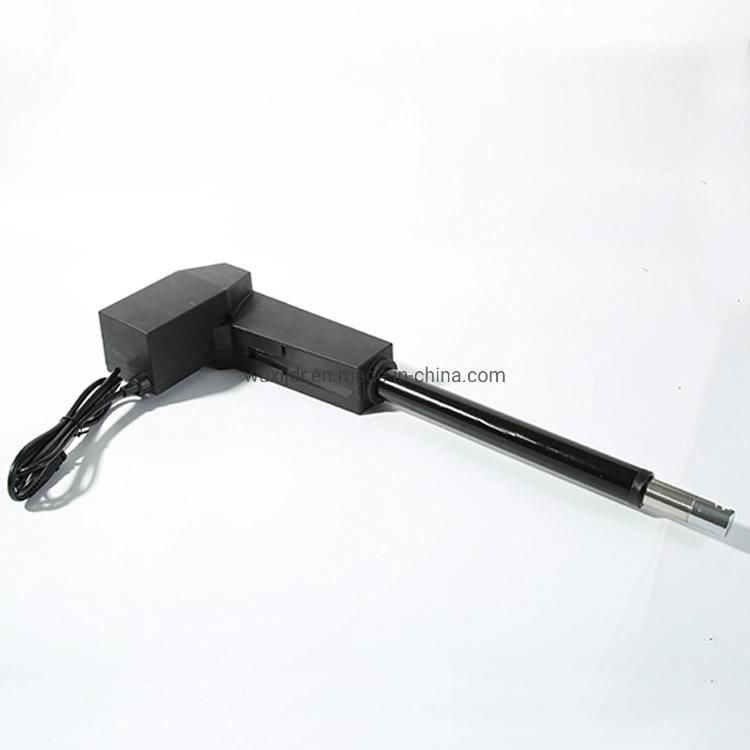

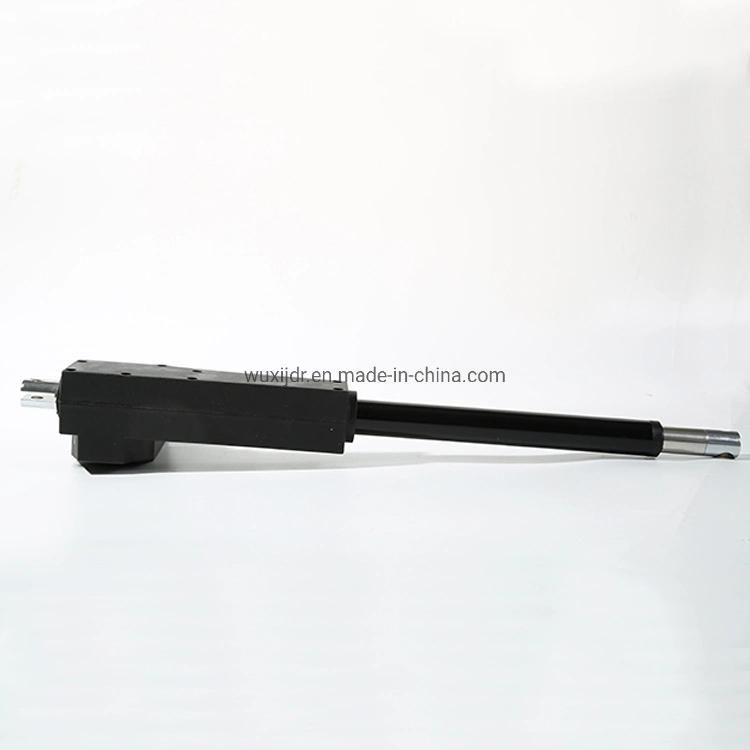

Name:	Linear  Actuator
Model:	FY012
Usage:	Electric  Nursing  Bed,   Electric  Hospital  Bed,   Personal  Care  Bed,   other  Application  use
Input  Voltage:	24v  DC
Load  Capacity:	2000N,   4000N
Free  Load  Speed:	9mm/s,   4mm/s
Standard  Stroke:	50  mm  ---  1000mm  (Optional)
Installation  Dimension:	S  +  175mm
Type  of  Duty:	S2  --  10  min  (2  minutes  work,   18  minutes  rest)
Limit  Switch:	Builtin  /  Inner  (can  not  be  adjust  after  left  factory)
Work  Temp.:	-26  to  65  centigrade
Protection  Grade:	IP54
Certificate:	CE  /  EMC  +  LVD,   RoHS
Control  Box  Used:	Control  1  Linear  Actuator:   FYK011-1,   FYK012-1,   FYK015-1,   FYK016-1,   FYK017A
	Control  2  Linear  Actuators:   FYK011-2,   FYK012-2,   FYK015-2,   FYK016-2
	Control  3  Linear  Actuators:   FYK011-3,   FYK012-3,   FYK016-3
	Control  4  Linear  Actuators:   FYK012-4,   FYK016-4
	Control  5  Linear  Actuators:   FYK012-5,   FYK016-5
	Control  6  Linear  Actuators:   FYK016-6
Handset  Used:	All  FYH  Series  Handset,   Pls  contact  us  for  detail  pictures.
