• Model NO.：FY016
• Condition：New
• Load Capacity：4500n
• Motor Voltage：24V
• Input Voltage：110VAC or 230VAC
• Speed：5mm,S
• Standard Stroke：63mm,74mm,69mm,87mm
• Fiting Dimension：581+-2mm
• Limit Switch：Inner
• Protection Class：IP22
• Warranty：2 Years
• Color：Gray or Black
• Transport Package：in Standrd Box or as Required
• Specification：750N
• Trademark：JDR
• Origin：Jiangsu, China (Mainland)
• HS Code：940190900
• Production Capacity：1, 4000PCS,Month

Basic Info.

Model NO. FY016 Condition New Load Capacity 4500n Motor Voltage 24V Input Voltage 110VAC or 230VAC Speed 5mm/S Standard Stroke 63mm/74mm/69mm/87mm Fiting Dimension 581+-2mm Limit Switch Inner Protection Class IP22 Warranty 2 Years Color Gray or Black Transport Package in Standrd Box or as Required Specification 750N Trademark JDR Origin Jiangsu, China (Mainland) HS Code 940190900 Production Capacity 1, 4000PCS/Month

Product Description

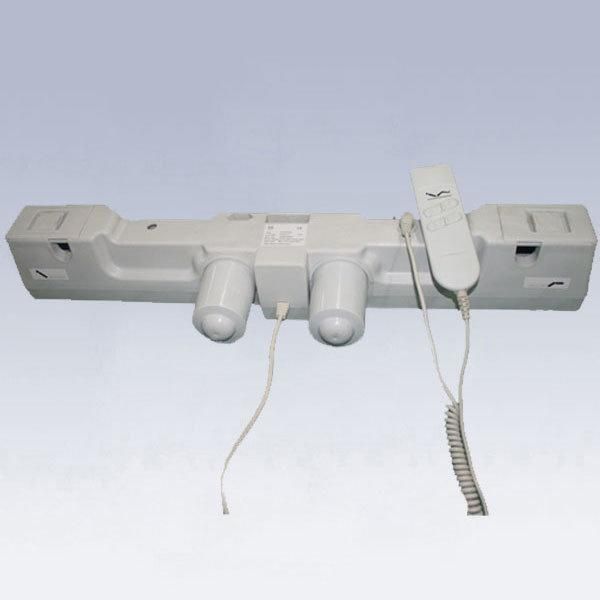

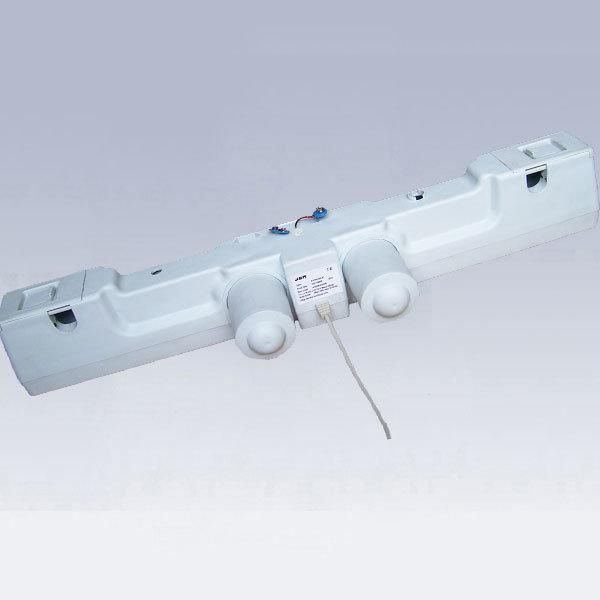

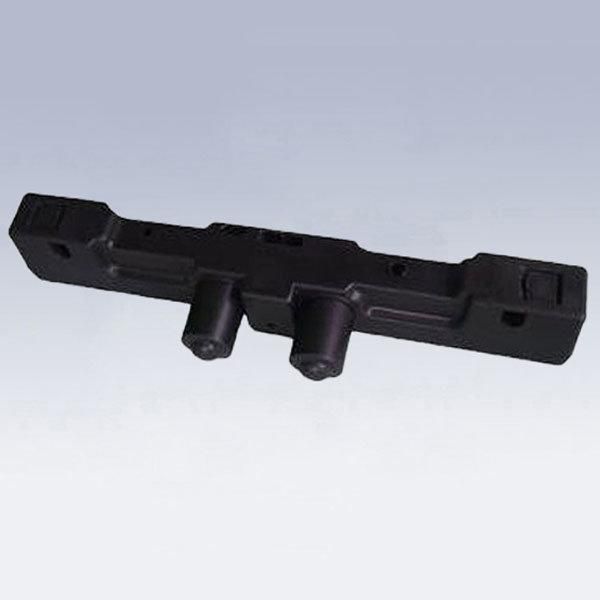

24VDC Linear Actuator

1) Small size, low noise

2) linear actuator

3) Inner use

4) CE, RoHS, SGS

*Designed for use with torque arm system

*Compact size

*Safe, low voltage operator, 24V DC

Specifications:

1) Voltage: 24VDC

2) Capacity: 2*4500N

3) Max Speed: 5mm/s

4) Stroke: 63mm/74mm/69mm/87mm

5)Type of duty: 10% or 2 minutes continuous use followed

By 18 minutes not in use

6) Protection class: IP22

7) Built-in limit switches, not adjustable after leave factory

8) Certification: CE, RoHS








Features:

1) Powder Coated Steel Outer Tube

2) Lubrication for life time

3) Aluminum extension and outer tubes

4) Enhanced Corrosion Resistance

5) Powder Coated Aluminum Alloy Housing



High quality of electric linear actuator to worldwide customers. We are professional mamnufacturer in linear actuator.

Item: Electric Linear Actuator, Electric Linear Motor
Series: FY series
Item Number: FY011, FY012, FY013 FY04, FY015, FY016, FY017
Delivery time: 3~7 days for samples

High quality of electric linear actuator to worldwide customers. We are professional amnufacturer in Electric Linear Actuator and Electric Linear Motor.


Electric linear actuator is widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments, furniture, home beds, office tables, massage equipment, sporting equipments and so on and so on.

Specification of Our Electric linear actuator:
Max. Thrust: 4000N, 6000N, 8000N
Voltage: 24VDC or 12VDC, Motor Drive
Standard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke are available according to customer' requirement.
Duty cycle: 10%
Ambient temperature -26° C to +65° C
Standard protection class: IP 43
Built-in integral limit switch, not adjustable after leaving factory
Low noise design, dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.

Overload protection

CE Certificated

Availability in Black, White and Gray housing

Quality Guarantee
We provide 1 year warranty for JDR Linear Actuators.
We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.

Maintenance service
No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.

JDR QC Team
JDR QC team consists of more than 10 professional people to ensure 100% products high quality.

Contact Us
We highly appreciate your any enquiry by email, by fax or by Instant message.
We will reply your email or fax within 18 hours.
Please feel free to call us at any time if there is any question.

Transportation
All available shipping ways could be applied, by courier, by air or by sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.

We have a wide range of Linear Actuator and Linear Motor for worldwide customer.

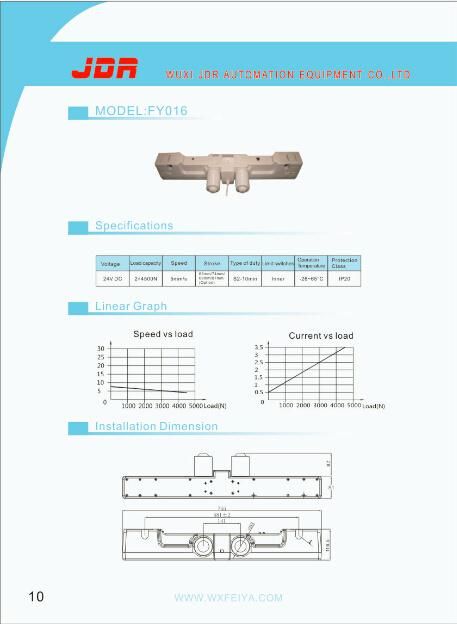

Item No.	FY016
Input voltage	110V AC OR 230VAC
Motor voltage	24VDC
Load capacity	2*4500N
Speed	5mm/s
Standard stroke	69mm/87mm
Color	Black/gray
Protection class	IP22
Certification	CE,ROHS,SGS
Warranty	2 years
