• Model NO.：FY012
• Transport Package：in Standrd Box or as Required
• Specification：CE, RoHS
• Trademark：JDR
• Origin：Wuxi, Jiangsu
• HS Code：8479909090
• Production Capacity：1, 4000PCS,Month

Basic Info.

Model NO. FY012 Transport Package in Standrd Box or as Required Specification CE, RoHS Trademark JDR Origin Wuxi, Jiangsu HS Code 8479909090 Production Capacity 1, 4000PCS/Month

Product Description

24V bed linear actuator

Input Voltage: 24V DC
Load Capacity: 4000N
Max Speed: 4mm/s(4000N) 9mm/s(2000N)
Stroke: 0~1000mm(option)
Type of duty: S2-10min
Limit switches: Inner
Operation Temperature: -26--65 centigrade
Protection Class: IP54
Certification: CE/EMC+LVD, RoHS
Type: Furniture part
Material: Metal and plastic
Use: Chair,sofa,bed
Place of origin: Jiangsu, China(mainland)
Function: Driving
Shape: Linear
Power: DC

1) Usages: Medical Equipment, Beauty, Furniture
2) Inner limit switch
3) Low noise
4) CE approved

Electric Linear Actuator FY012 for Medical Bed, Electric Sofa, Massage chair, Dental Chair

FY012 series of linear actuators are popularize in various application in furniture, nursing bed, traction bed by advantage of its multipurpose linear motion and comprehensive functions, with the features: Low noise, built-in limited switch, and reliable. They are specially fit for hospital device.

Features:
1) Compact installation
2) Strong shell
3) High load capacity

Specifications:
1) 12V/24VDC permanent magnet motor
2) Thrust up to 8000N in push, and up to 5000 N in pull
3) Elegant and compact design with small instanllation dimensions
4) Built-in limit switches ( not adjustable after leaving factory )
5) Aluminium or zinc outer tube / inner tube
6) Electric chromate steel piston rod eye with slot
7) High-strength plastic housing protects motor and gears
8) Standard protection class: IP 54
9) Scratch and wear-resistant power painting
10) Noise level < 50 dB
11) Warranty: Two years
12) Duty cycle: 10%, or 2 munutes continous working followed by 18 minutes not in use

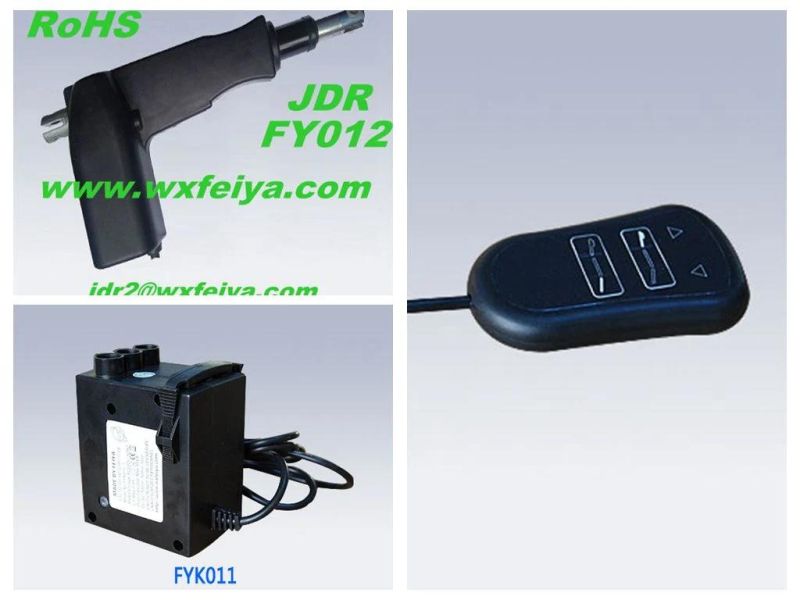

Picture of product

Picture of our factory


If you have any demand,please feel free to contact us.
