Power-420A Medical High Frequency Surgical Room Portable Diathermy Electrosurgical Machine
Jiangsu Rooe Medical Technology Co., Ltd.- Material：Metal
- Folded：Unfolded
- Using Ambient：Hospital
- Certification：CE, FDA
- Condition：New
- Working Frequency：512 kHz
Base Info
- Model NO.：POWER-420A
- Boundary Dimension：450mm-355mm-175mm
- Net Weight：9.5kg
- Power Source：Electricity
- Transport Package：Wooden Export Package
- Specification：CE, ISO
- Trademark：WANROOEMED
- Origin：China
- HS Code：94029000
- Production Capacity：500 Sets,Month
Description
Basic Info.
Model NO. POWER-420A Boundary Dimension 450mm-355mm-175mm Net Weight 9.5kg Power Source Electricity Transport Package Wooden Export Package Specification CE, ISO Trademark WANROOEMED Origin China HS Code 94029000 Production Capacity 500 Sets/MonthProduct Description

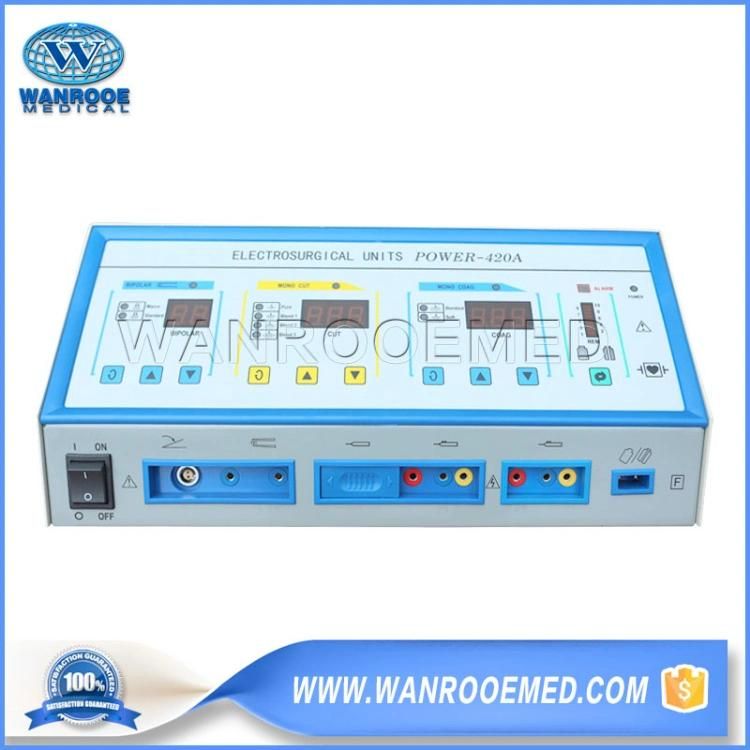

POWER-420A Medical High Frequency Surgical Room Portable Diathermy Electrosurgical Machine
POWER-420A Monopolar/Bipolar Electrosurgical Unit Features:
1.PURE CUT
Low-power setting for accurate cutting without thermal damage, such as plastic, scab cutting.
Higher power setting (80W~180W), suitable for urology surgery, and vaporize electrotomy of obstetrics and gynecology.
2.BLEND
It has coagulation effect while cutting and is widely used to surgical operations such as general, thoracic, abdominal, hysteroscope and urinary surgeries.
Having adopted the automatic power adjustment technology, the above two modes have advantages of high efficiency and low power consumption.
Low voltage output specially designed for endoscopic surgery; greatly reduce risks inherent to such operations.
Bipolar macro mode (bipolar cut):specially designed for endoscopic surgery, such as laparoscopy and hysteroscopy surgery.
Adopt the contact quality monitoring system which is proven safe by globe clinical application.
POWER-420A Main Technical Parameter:
1.Type of the apparatus: Model CF, Class i, Anti-defibrillation common equipment.
2.Working frequency: 512 KHz; Working mode: interval loading and continuous operating, temporary loading rate: 10S/30S.
3.Power supply: single-phase AC220V±22V, 50Hz±1Hz,max current≤3.5A
4.Boundary dimension: 450mm×355mm×175mm
5.Host machine net weight: 9.5kg; Machine gross weight: 19.5kg.
6.Operation conditions: ambient temperature 5ºC~40ºC, humidity≤80%RH.
