• Model NO.：B-1
• Manufacture：Yes
• Length：1930mm
• Width：750mm
• Height Adjustable Range：600-830mm
• Transport Package：Standard Export Package
• Specification：1930*750*600,830MM
• Trademark：Grand
• Origin：China
• Production Capacity：5000 Sets Per Month

Basic Info.

Model NO. B-1 Manufacture Yes Length 1930mm Width 750mm Height Adjustable Range 600-830mm Transport Package Standard Export Package Specification 1930*750*600/830MM Trademark Grand Origin China Production Capacity 5000 Sets Per Month

Product Description

Grand Medical-- manufacture of Hospital Furniture & OT Equipments. Semi electric hospital bed, automatic hospital bed, lifting hospital beds factory. Semi Electric Operation Table, Hydraulic Operating table. Electric Mobile Operation Table  Electrical Movement radiolucent hospital beds. X-ray imaging operating table. Operating lamps, medical pendants.



Model:  B-1

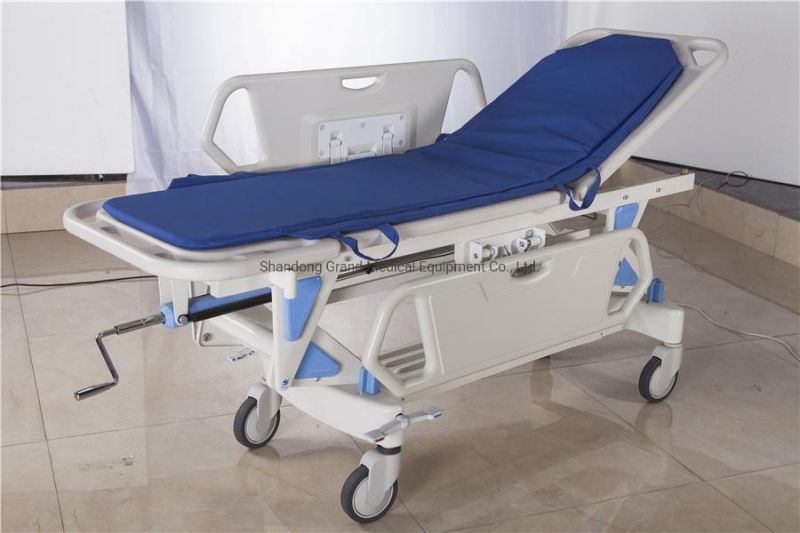

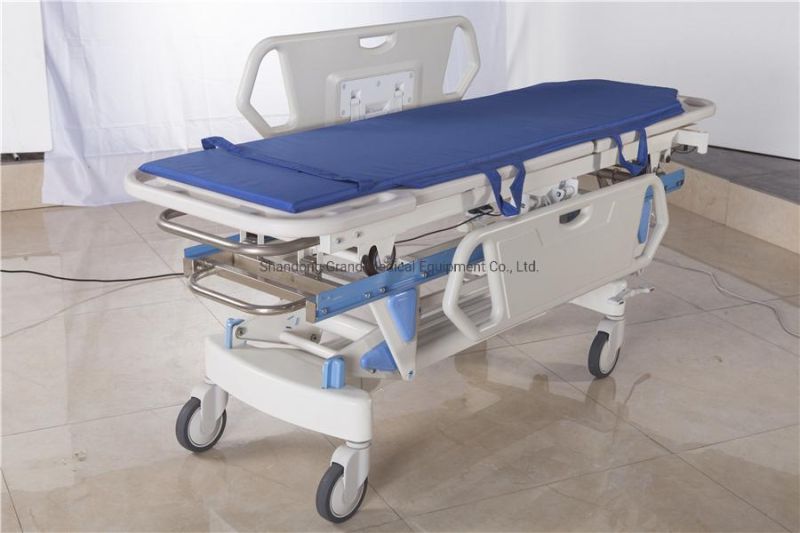

Name:  Ambulance Stretcher/ Transportation Flat Cart

Size: L1930*W750*H600/830mm



Technical parameter
Bed size without guardrail: (1930×590)±10mm
Including guardrail: (1930×750) ±10mm
Height from the bed surface to the ground (without cushion):   Minimum height(600±20) mm/Maximum height: (835±20) mm
Lifting stroke: (235±20)mm (manual)
Back angle: 90°±5° (manual)
Caster locking method: Central control brake
Net weight: 60~70kg
Maximum load: 200kg

Transportation and storage environment requirements:
Temperature range: -15°C~60°C (5°F~158°F)
Humidity range (non-condensing): 10%~90%
Atmospheric pressure range: 500hPa~1060hPa

Operating environment requirements:
Temperature range: 10°C~40°C (50°F~104°F)
Humidity range (non-condensing): 10%~90%
Atmospheric pressure range: 500hPa~1060hPa

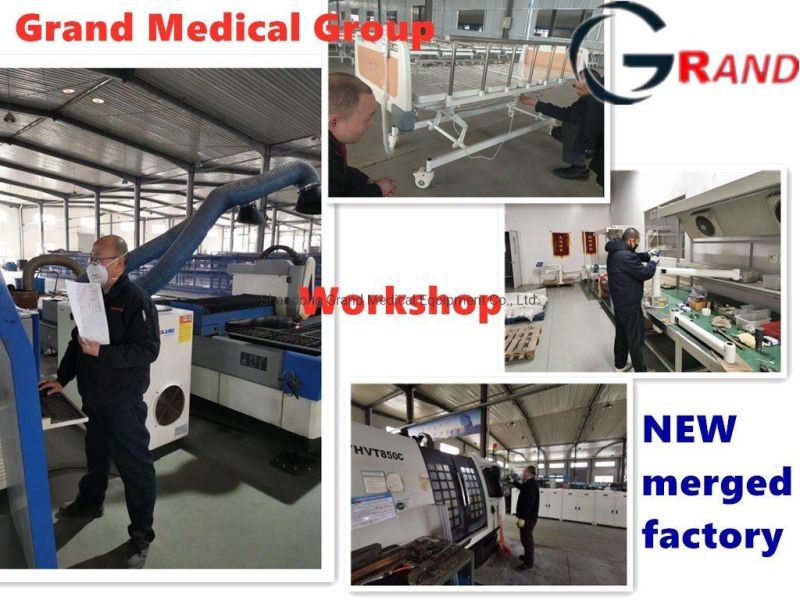

Our factory

 Company Introduction

    Grand Medical is a merged group.( the premier founder is YUDA medical group). It is established in 1992. The factory is located at Yanzhou economic development zone, Shandong Province, China. In 1992 year, YUDA medical group established, by producing hospital beds and medical carts.
     We accumulated rich experience and technology. In 1998, we begin to produce OR equipment, like operating lamp, operating table and medical pendant. Since 2009, we constanly invested more than 30 million dollars on modern factory workshops to improve the production technology for hospital furniture, OR equipment, and ICU equipment, and R&D on medical imaging radiology, like digital X-ray imaging machine, monitor and ultrasound machine.Since 2015 year,  we became largest medical manufacture group in North China,  covers more than 480,000 square meters factory, with 38 workshops, and globally marketing system.
     In the year 2020, Grand Medical Group, by inner prdoucts workflow growth,  strategic merger and with the third factories participation, becone an extensive medical coverage manufacture enterprise. With more than 30years experience, we are equipped to serve every possible global  heatlh programme and cater for every medical supply need that our customer may have.


FAQ:

Q: Are you manufacturer ?
A: Yes, we are factory. we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,ISO13485?
A: Yes,our products are approved by CE,ISO13485
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Payment term?
A: 1.L/C at sight;
    2.T/T:30% deposit by T/T,70%balance by T/T before shipment
    3.Trade term:EXW, FOBShanghai or CIF&CFR
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
    2.All of the productions are inspected carfully by QC before delivery.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is5-10 days after receiving the deposit;
If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30days,It depends on the quantity of order
Q: What is your Min.order?
A: There's no minimum quantity
