• Model NO.：MC-8310,MC-803C

Basic Info.

Model NO. MC-8310/MC-803C

Product Description

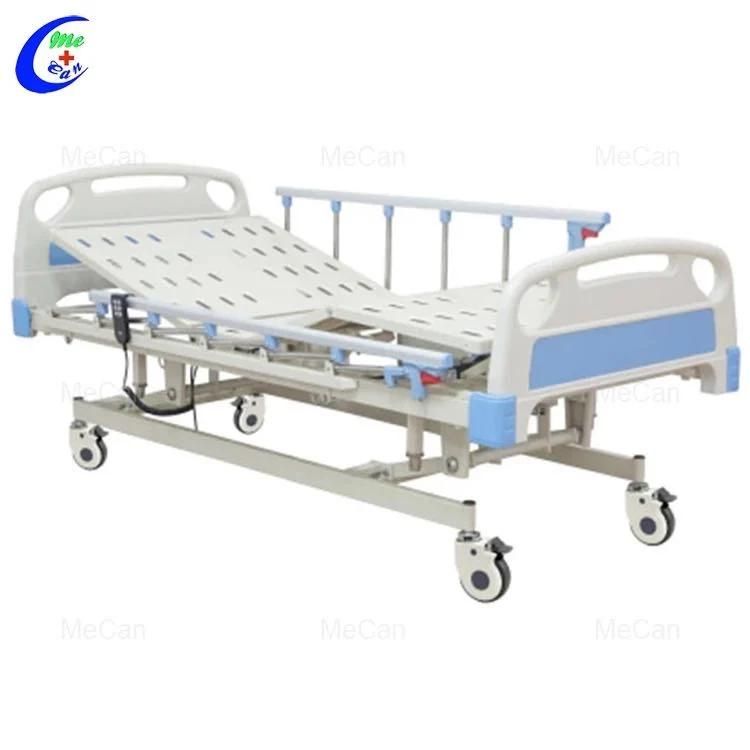

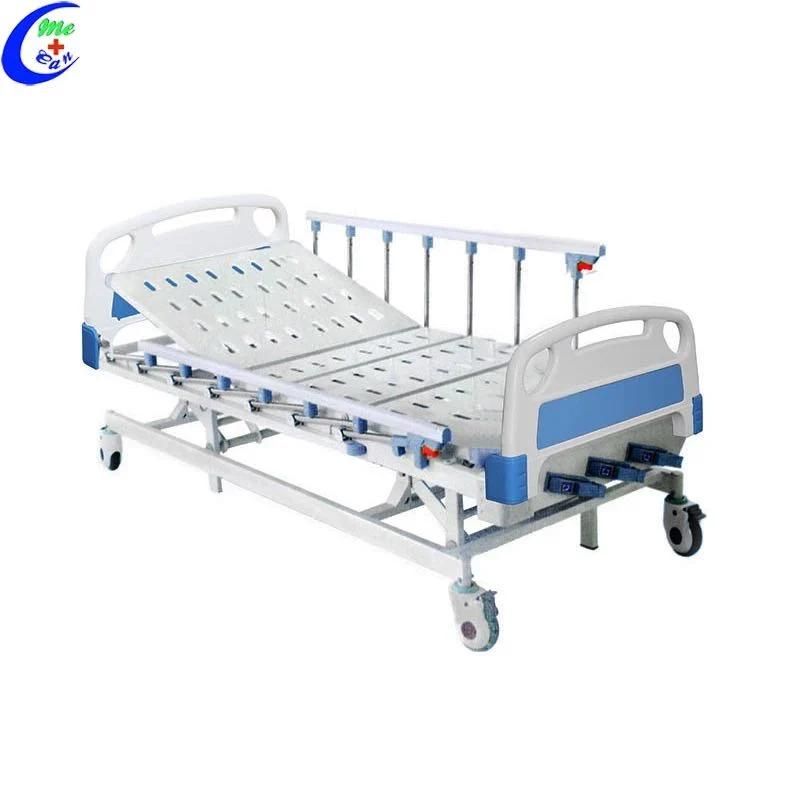

Hospital Project Metal 3 Crank Manual Hospital Bed, Electrical Hospital Bed


General Introduction
This general care electric bed is specially designed for patient care during the process of treatment and recovery. By adopting high level international technology and on basis of ergonomics science, this general care electric bed alleviates the nurse and attendant's workload remarkable and provides patient great comfort. All the position is achieved by automatic motor control which generates a high efficiency for patient care.
Overall Size: 2120*1100*500-750mm(L*W*H)


3-Functions
−HI-LOW: 500-750mm
−Backrest adjustable angle: 0-80°(±5°)
−Footrest adjustable angle: 0-40°(±5°)


Specification
−Frame: made of cold-rolled steel plate, treated by electro-coating & powder-coating
−Detachable quality ABS headboard, Blue color, and brown color option
−4 pcs detachable PP side rails, rising up and down easily controlled by gas spring
−Quiet and robust electric actuators provide reliable operation
−Remote handset control of all electrically operated functions and movements
−4 pcs 5 inches luxury noiseless wheels with brakes, φ125mm
−Motor: China Jiechang motor,Linkan/Timotion/Linak motor option
−Maximun Weight Capacity: 250kgs
−1 pcs SS height adjustable I.V. pole; 4 pcs urine bag hooks; 6 pcs I.V. holes
−Battery backup is optional
−Warranty: 1 year after shipment


Standard Configurations
ABS Head & foot board 1set(2 pcs)
PP side rails 1set(4 pcs)
Luxury noiseless castors 1set(4 pcs)
Bed motors 1set(3 pcs)
I.V. pole 1 pcs
I.V. hole 6 pcs
Urine bag hooks 4 pcs
