• Model NO.：BAE517EC
• Max Back Elevation：75°
• Mas Knee Elevation：45°
• Max Trend and Reverse Trend：12°
• Max Safe Load：250kg
• Accuracy：0.1kg(&Nbsp;0.05kg&Nbsp; 0.02kg Optional)
• Castor：5 Inch Standard, 6 Inch Optional
• Package：by Wooden Package Suitable for Sea Way Shipping
• Transport Package：Wooden Export Package
• Specification：1960mm *950mm-1080mm*400mm-700mm
• Trademark：WANROOEMED
• Origin：China
• HS Code：94029000
• Production Capacity：500 Sets,Month

Dimensions

Bed length with standard sleep deck: 2230mm
Width (with resident assist rails up): 1080mm
Width (with resident assist rails down): 950mm
Height of sleep deck (in low position): 400mm
Height of sleep deck (in high position): 700mm

Sleep deck

Width:900mm

Normal length:1960mm

Functions

Max back elevation: 75°

Mas knee elevation: 45°

Max Trend and reverse Trend: 12°

Height: 400-700mm

Max safe load

250kg

Optional scale system

Accuracy :.0.1kg( 0.05kg  0.02kg optional)

Castor

5 inch Standard, 6 inch Optional

Patient Safety

Patients' safety and comfort are your primary concern. The WANROOEMED BAE517EC Bed built-in several unique features to help you protect and care for your patients

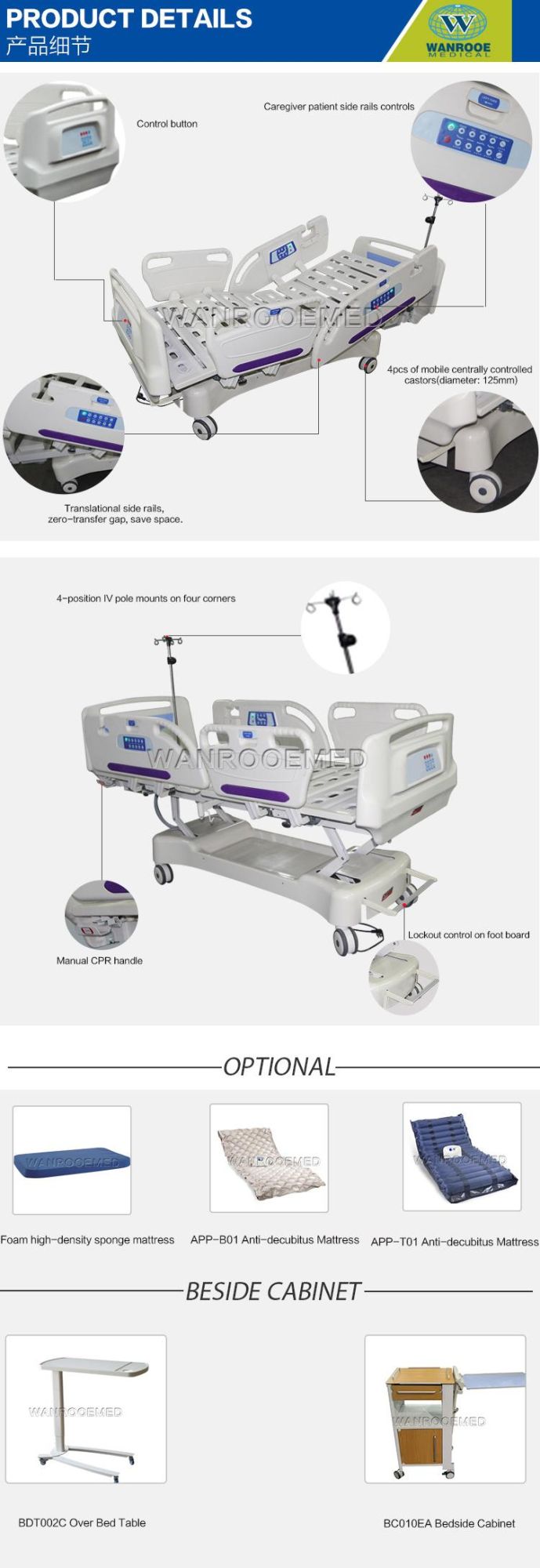

Standard Features:

* 4 LINAK motors
* Translational side rails, zero-transfer gap, save space
* Battery backup
* Manual CPR handle
* Caregiver patient side rails controls and footboard controls
* Lockout control on foot board
* 12° trendelenburg and reverse trendelenburg
* Head section and knee section can move at the same time for cardiac chair position
* 4-position IV pole mounts on four corners

* Blow-molded headboard and footboard, molded in one
* 4pcs of mobile centrally controlled castors(diameter: 125mm)
* Steel carriage base
* Standard length sleep deck-1960mm length, 900 mm width
* With drainage hook and adjustable IV pole
* Compatibility with most:
-standard mattress
-over bed tables
-beside cabinet
* Mattress, IV pole are optional

Package

By wooden package suitable for sea way shipping
