• Model NO.：FY013
• Stroke：50-1000mm
• Limit Switch：Inner
• Warranty：2 Years
• Type of Duty：S2-10min
• Function：Driving
• Application：Medcal Bed, Furniture Equipment
• Working Temperature：-25-65degree
• Transport Package：Standard Export Carton
• Specification：CE , RoHS
• Trademark：JDR
• Origin：China
• HS Code：9401909000
• Production Capacity：5000 Sets , Month

Basic Info.

Model NO. FY013 Stroke 50-1000mm Limit Switch Inner Warranty 2 Years Type of Duty S2-10min Function Driving Application Medcal Bed, Furniture Equipment Working Temperature -25-65degree Transport Package Standard Export Carton Specification CE / RoHS Trademark JDR Origin China HS Code 9401909000 Production Capacity 5000 Sets / Month

Product Description

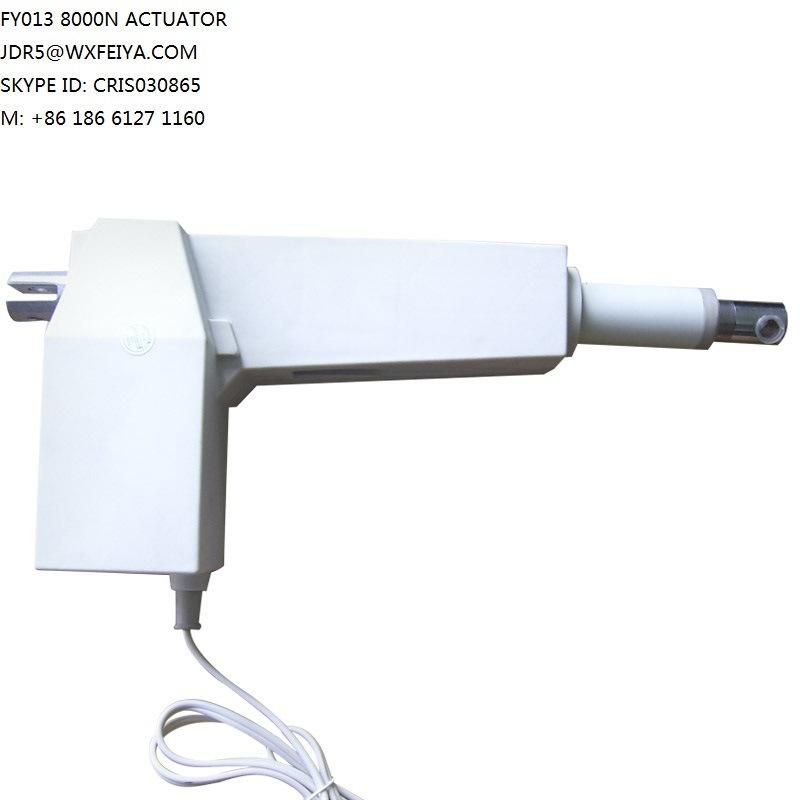

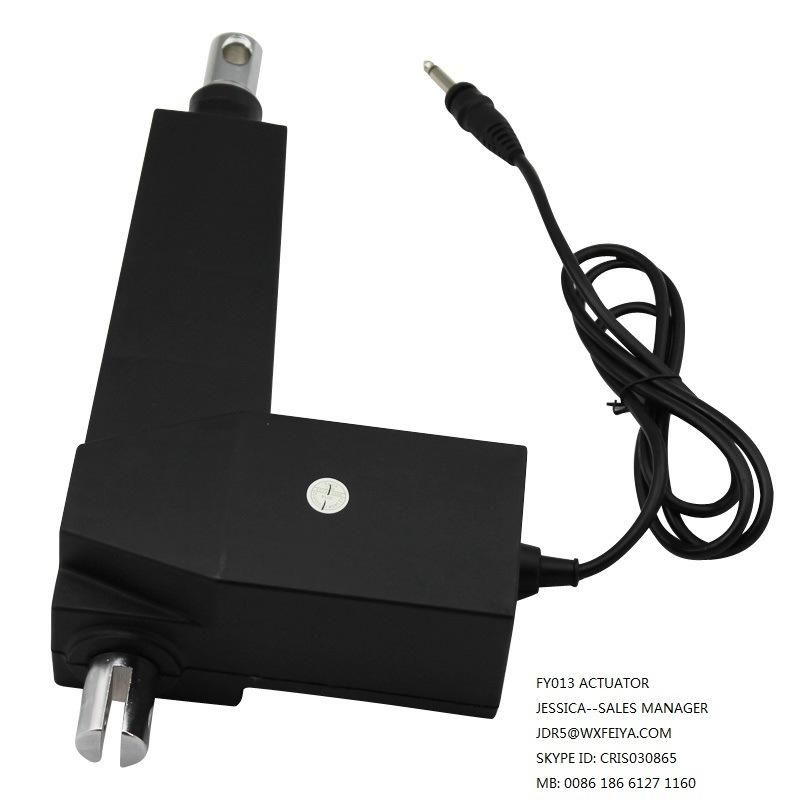

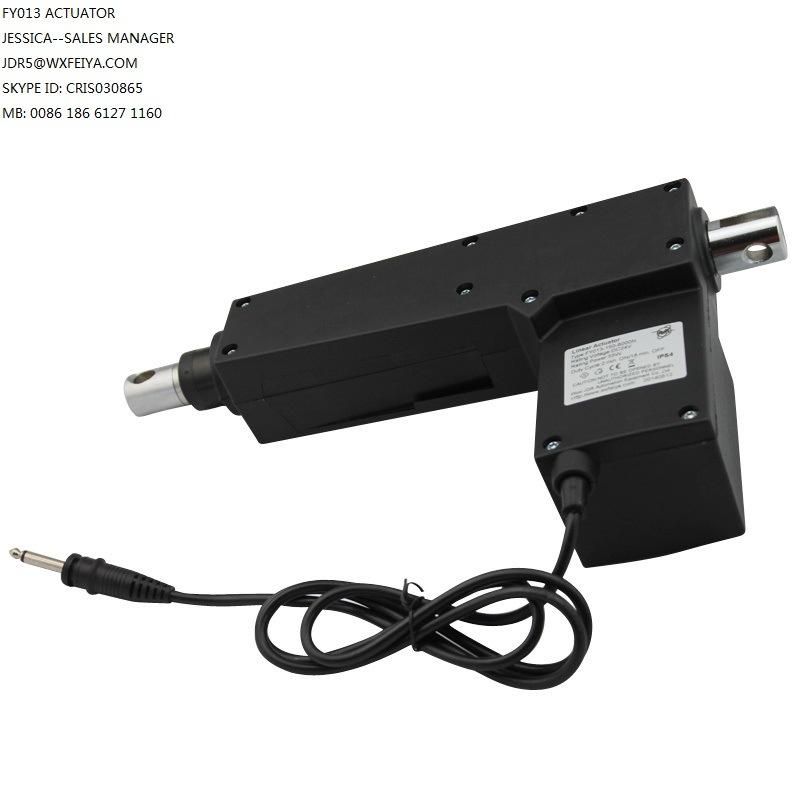

Medical Bed Linear Motor

1) Medical Linear Actuator
2) Used in Medical traction bed.
3) CE, RoHS approval

Specifications of FY013 Linear Actuator:

Name: Linear Actuator
Model: FY013
Input Voltage: 24V DC
Max Load Capacity: 8000N / 6000N
Max Speed: 3mm/s (8000N), 4mm/s (6000N)
Standard Stroke: 1000mm
Limit Switches: Inner
Type of duty: S2-10min
Color: Black / Gray
Operation Temperature: -26 Centigrade ~ 65 Centigrade
Protection Class: IP454
Certification: CE/EMC+LVD, RoHS

Usage: Medical traction bed.

High quality of electric linear actuator to worldwide customers. We are professional mamnufacturer in linear actuator.

Item: Electric Linear Actuator, Electric Linear Motor
Series: FY series
Item Number: FY011, FY012, FY013 FY04, FY015, FY016, FY017
Delivery time: 3~7 days for samples

High quality of electric linear actuator to worldwide customers. We are professional amnufacturer in Electric Linear Actuator and Electric Linear Motor.


Electric linear actuator is widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments, furniture, home beds, office tables, massage equipment, sporting equipments and so on and so on.

Specification of OurElectric linear actuator:
Max. Thrust: 4000N, 6000N, 8000N
Voltage: 24VDC or 12VDC, Motor Drive
Standard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke areavailable according to customer' requirement.
Duty cycle: 10%
Ambient temperature -26° C to +65° C
Standard protection class: IP 43
Built-in integral limit switch, not adjustable after leaving factory
Low noise design, dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.

Overload protection

CE Certificated

Availability in Black, White and Gray housing

Quality Guarantee
We provide 1 year warranty for JDR Linear Actuators.
We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.


Maintenance service
No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.

JDR QC Team
JDR QC team consists of more than 10 professional people to ensure 100% products high quality.

Contact Us
We highly appreciate your any enquiry by email, by fax or by Instant message.
We will reply your email or fax within 18 hours.
Please feel free to call us at any time if there is any question.

Transportation
All available shipping ways could be applied, by courier, by air or by sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.

We have a wide range of Linear Actuator and Linear Motor for worldwide customer.

Name:	Linear  Actuator
Model:	FY013
Usage:	Electric  Nursing  Bed,   Electric  Hospital  Bed,   Personal  Care  Bed,   other  Application  use
Input  Voltage:	24v  DC
Load  Capacity:	6000N,   8000N
Free  Load  Speed:	4mm/s,   3mm/s
Standard  Stroke:	50  mm  ---  1000mm  (Optional)
Installation  Dimension:	S  +  175mm
Type  of  Duty:	S2  --  10  min  (2  minutes  work,   18  minutes  rest)
Limit  Switch:	Builtin  /  Inner  (can  not  be  adjust  after  left  factory)
Work  Temp.:	-26  to  65  centigrade
Protection  Grade:	IP54
Certificate:	CE  /  EMC  +  LVD,   RoHS

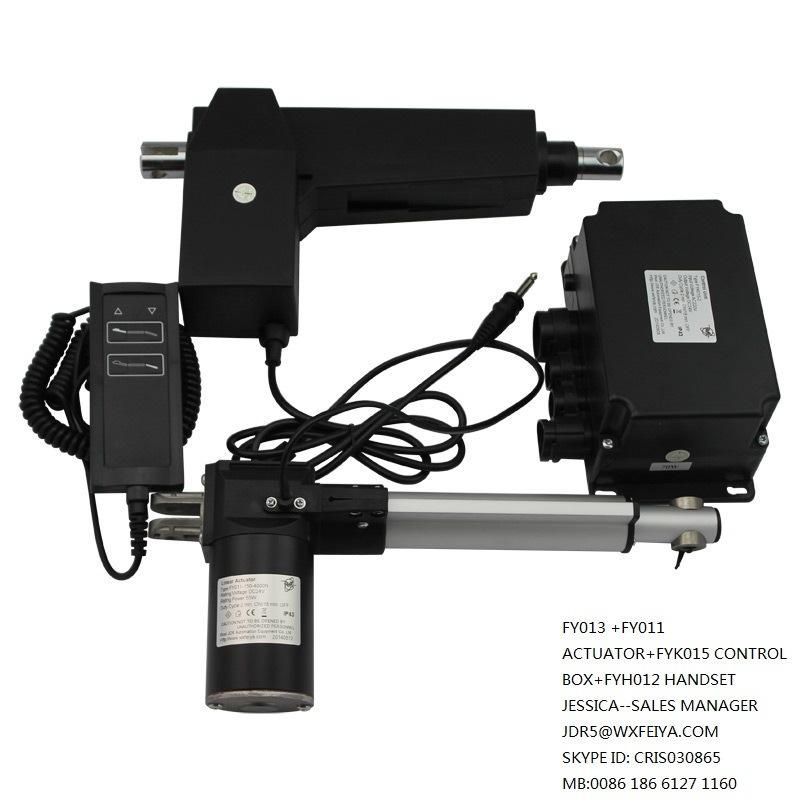

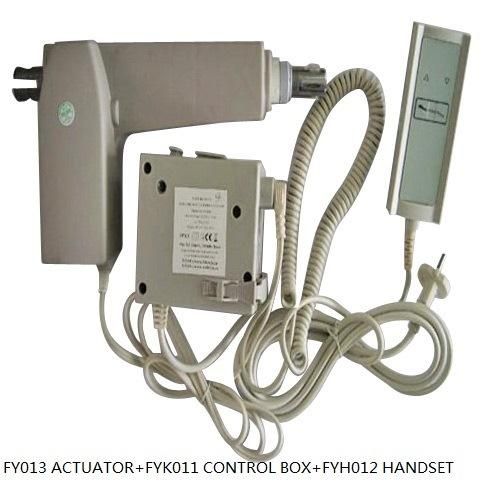

Control  Box  Used:	Control  1  Linear  Actuator:   FYK011-1,   FYK012-1,   FYK015-1,   FYK016-1,   FYK017A
	Control  2  Linear  Actuators:   FYK011-2,   FYK012-2,   FYK015-2,   FYK016-2
	Control  3  Linear  Actuators:   FYK011-3,   FYK012-3,   FYK016-3
	Control  4  Linear  Actuators:   FYK012-4,   FYK016-4
	Control  5  Linear  Actuators:   FYK012-5,   FYK016-5
	Control  6  Linear  Actuators:   FYK016-6
Handset  Used:	All  FYH  Series  Handset,   Pls  contact  us  for  detail  pictures.
