• Model NO.：FA-2
• Condition：New
• Warranty：2 Years
• OEM ODM：Yes
• Manufacture：Yes
• Transport Package：Wooden Case
• Specification：0.25CBM
• Trademark：YUDA
• Origin：China
• Production Capacity：50000 PCS Per Year

Basic Info.

Model NO. FA-2 Condition New Warranty 2 Years OEM ODM Yes Manufacture Yes Transport Package Wooden Case Specification 0.25CBM Trademark YUDA Origin China Production Capacity 50000 PCS Per Year

Product Description

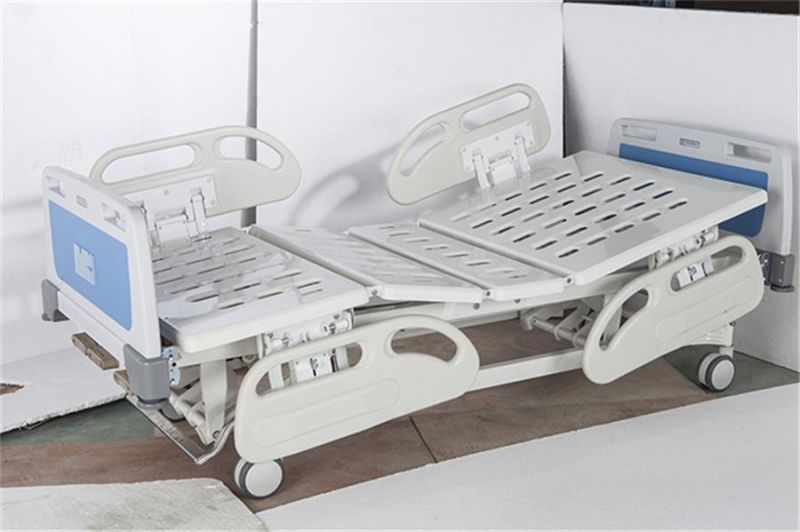

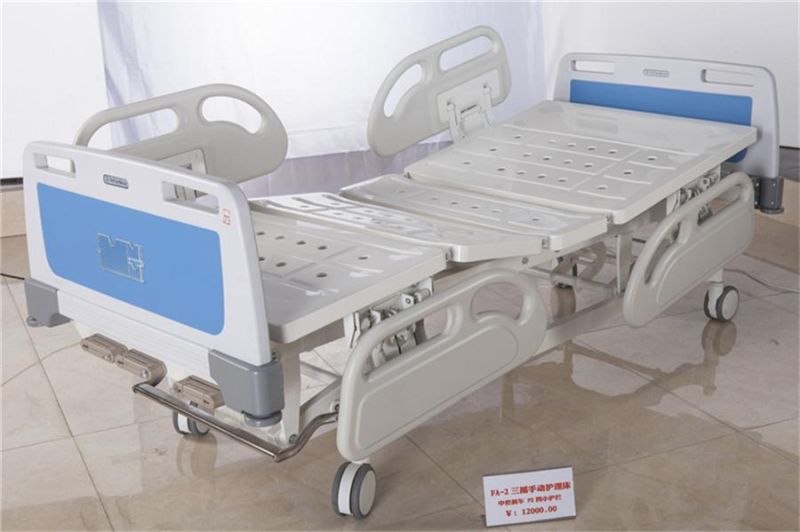

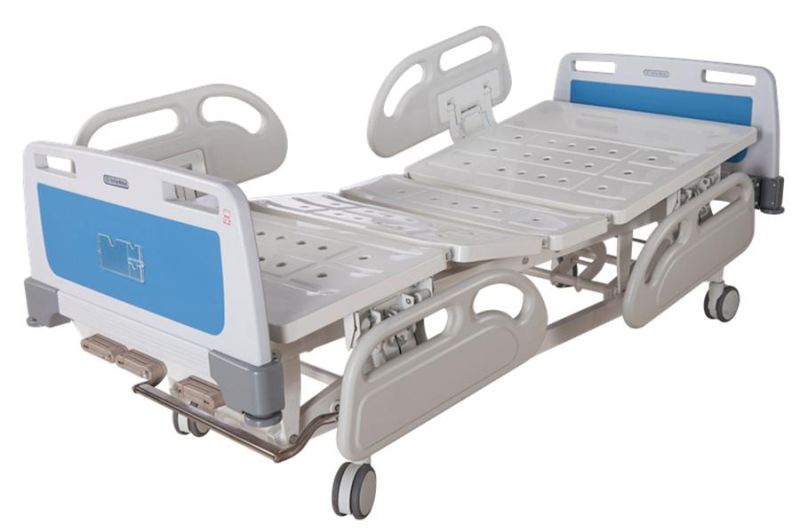

Product name: FA-2 3-handrail manual nursing bed
Specification: 2180×1080×480/760


Product Features:
Overall lifting: 480--760 mm; back adjustment 75°±5°; leg adjustment 35°±5°; European-style four small guardrails, up and down flip structure; luxurious central control casters, integrated brakes; bed board is made of cold-rolled steel sheet Stamping and forming, with good anti-slip and air permeability. The load-bearing capacity of the bed is not less than 240KG.
Technical Parameters:
1.The frame of the bed body is welded by 80*40*1.5 formed square tube, advanced welding technology, high quality welding, the bed body is firm, and can load ≥240kg;
2.Bed surface: 1.2mm cold rolled steel plate. It is punched into a concave shape and has a multi-pore design for easy ventilation and anti-slip function.
3.The bed body is made of Akzo Nobel environmentally friendly antibacterial powder electrostatic spraying, which has the characteristics of anti-corrosion and rust prevention, and beautiful appearance.
4.The headboard and footboard of the bed are made of ABS engineering plastic by one-time injection molding. The hanging design is easy to disassemble, stable and reliable. There is a patient information card slot on the outside of the footboard;
5.European-style four-small ABS guardrail design, using a damper device to control speed and noise, and can be hidden under the bed panel and flush with the bed panel.
6.Equipped with ABS rocker with built-in steel core, hidden design, firm and flexible, no noise, easy operation, and flexible adjustment of the patient's back and leg position.
7.The rocker drive lifting system, no plastic structure, wear-resistant, compression-resistant, and long life. It is equipped with two-way in-place non-limit protection device to enhance the service life and safety performance. Ensure labor-saving and smooth shaking.
8. Equipped with Taiwan "Shikerui" brand φ125 centrally controlled movable casters, high-stability linkage system, stable and convenient braking, waterproof and dustproof, double-wheel cake design to increase the ground area and increase stability.
9. The four corners are equipped with infusion stand sockets and drainage hooks. Infusion stand is optional.



Item parameter
Total length 2190±20 mm
Total width 1080 ±20 mm
The height between the bed surface and the ground (without cushion) Minimum height: 450±20 mm
Maximum height: 660±20 mm
Lifting stroke 210±20 mm (manual)
Back angle 75°±5° (manual)
Leg angle 35°±5° (manual)
Transportation and storage environment requirements
Temperature range -15°C~60°C (5°F~158°F)
Humidity range (non-condensing) 10%~90%
Atmospheric pressure range 500hPa~1060hPa
Operating environment requirements
Temperature range 10ºC~40ºC (50°F~104°F)
Humidity range (non-condensing) 10%~90%
Atmospheric pressure range 500hPa~1060hPa




We are CE, ISO, FDA, certificated approved, with 26 years manufacturing experience on medical equipments, we provide with you one-stop solution on OR, ICU and hospital furniture.

Certificate (ISO9001 CE FDA TUV)

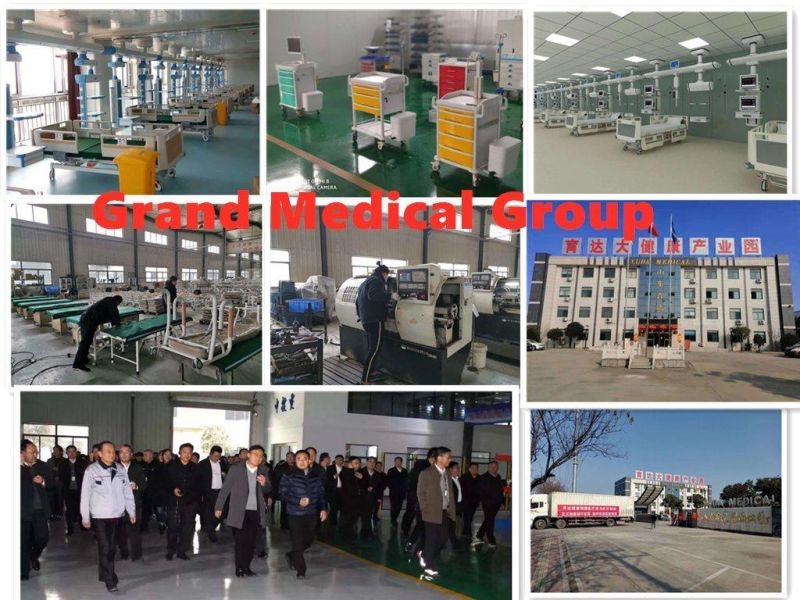

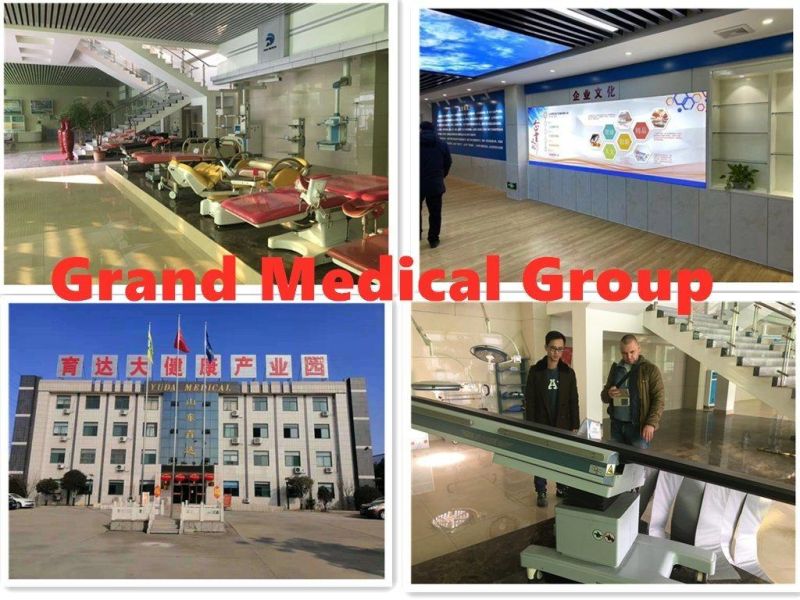

Company Strength

GRAND Medical Group is the merged medical manufacture, (former factory is YUDA), with the former factories (YUDA) and the third investment, Grand now is the largest medical manufacture in North China. GRAND are focused on the medical equipments, hospital furniture, surgical instruments and ICU monitor equipments production and technical research. We have 38 workshops, with more than 480, 000 square meters. The factory founded in 1992, started from hospital furniture, hence we accumulated rich medical industrial experience. We mainly produce surgical equipment, like: Operating lamp, operating table, and medical pendant, we also produce hospital furniture, like: Hospital bed and medical cart, medical trolley. And the third factories invested ICU equipment: ECG, monitor, anesthesia machine, ultrasound machine. In 2020 Antivirus, Grand put into production of surgical masks and air sterile machine. Grand Medical group produce different kinds of products. High quality and favorable price. We′re pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

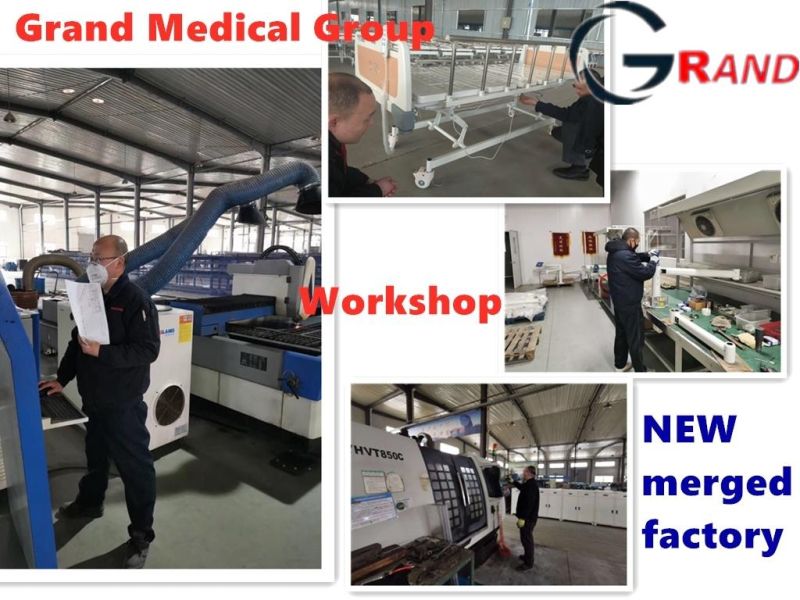

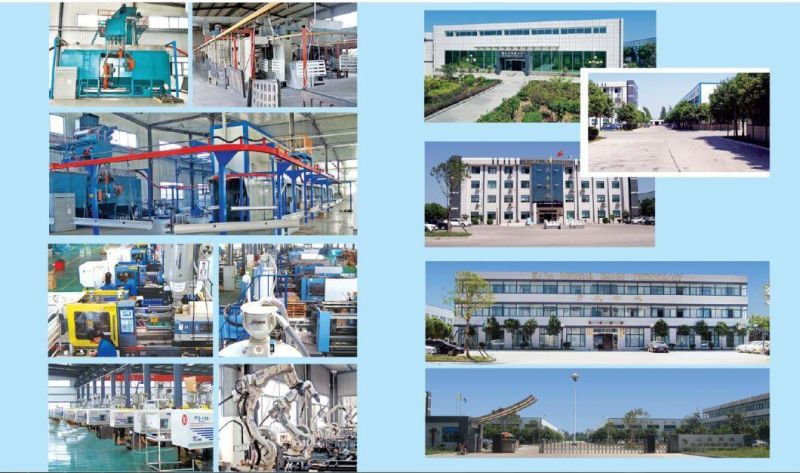

1) Processing Workshop and Factory

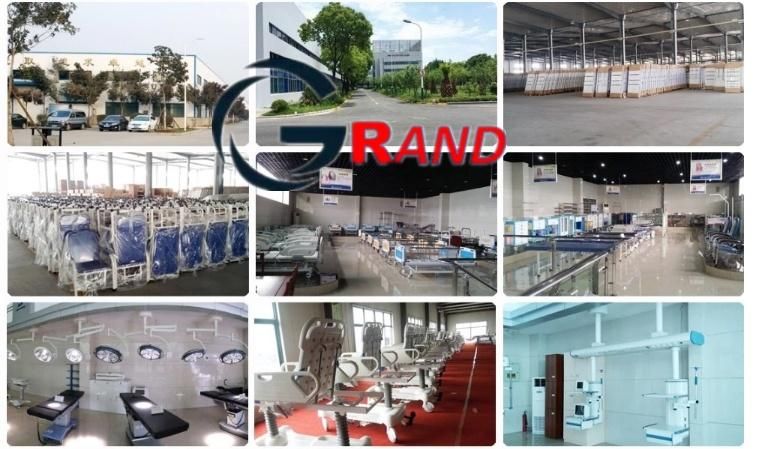

2). Products Show Room







3). Quality Control




FAQ

Q: Are you manufacturer ?
A: Yes,we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,ISO13485?
A: Yes,our products are approved by CE,ISO13485
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Payment term?
A: 1.L/C at sight;
    2.T/T:30% deposit by T/T,70%balance by T/T before shipment
    3.Trade term:EXW, FOBShanghai or CIF&CFR
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
    2.All of the productions are inspected carfully by QC before delivery.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is5-10 days after receiving the deposit;
If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30days,It depends on the quantity of order
Q: What is your Min.order?
A: There's no minimum quantity
