• Model NO.：BD111BA
• Colour：White
• Transport Package：Export Carton Package
• Specification：CE, ISO
• Trademark：WANROOEMED
• Origin：China
• HS Code：94029000
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. BD111BA Colour White Transport Package Export Carton Package Specification CE, ISO Trademark WANROOEMED Origin China HS Code 94029000 Production Capacity 500 Sets/Month

Product Description

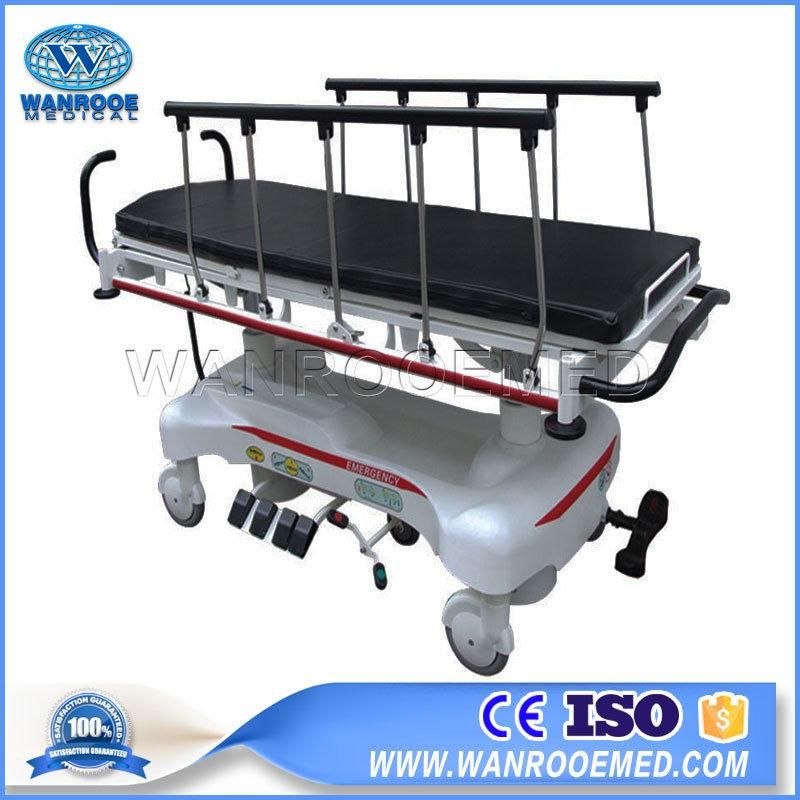

BD111BA Rescue X- Ray Electric Hospital Equipment Transfer Trolley Stretcher


Size: 2120*800*610/930mm

transfer stretcher Instruction:
The Stretcher Cart is made of galvanized steel tube and surface coated by electrostatic spray.
The back board is made of American electrotyped board with X-ray cassette.
It is equipped with the imported double hydraulic rise-and-fall system.
The international advanced centrally controlled brake system is applied to the cart and φ200mm dustproof castors make the cart move steadily, reliably and lightly.
The bed can be raised and lowered, tilted forward and backward which is controlled by the treadle lying on two sides of the bed.
The bottom cover is made of PP material and shaped by once injection that can be easily cleaned.
The cart surface is of separate structure and the upper part is supported by the imported large hydraulic pole to make the bed never sway.
It is completed with infusion stand, drainage hook and collapsible aluminum alloy side rails.
It is the best choice for emergency room, ICU, ICU bed and emergency bed for transferring patient.
The security, reliability and practicability of the Stretcher Cart attain national standard.
transfer stretcher Material:
The frame is steel with coating by twice electrostatic spray
Back board is with x-ray cassette
Bottom platform is imported PP material
Aluminum alloy handrails
transfer stretcher Configuration:
Two separate hydraulic pump
Hydraulic control foot padels
Rise-and-fall guide wheel
Backrest x-ray(electric panel made in America)
CPR handle
With I.V. pole
Diameter of central-control silent and dustproof castor: 200mm
Weight load: 250KG
transfer stretcher 5 Functions:
Backrest max upward angle: 75°
Footrest max upward angle: 40°
Height adjustment: 630-930mm
Trendelenburg:12°
Anti-trendelenburg:12°

central castor, five functions all controlled by foot pedals
folded side railings, easy to operate by press the button, with adjustable IV pole

wooden export packages


Backrest max upward angle	75°
Footrest max upward angle	40°
Height adjustment	630-930mm
Anti-trendelenburg	12°
Trendelenburg	12°
