• Model NO.：OPERATION TABLE DT-12E (ELECTRIC NEW TYPE)
• Table Height：690mm~1100mm
• Length and Width：1970mmx500mm
• Reversed Trendelenburg/Trendelenburg：30o
• Lateral Tilt (Left/Right)：18o
• Head Rest(up/Down)：60o,90o
• Back Rest (up/Down)：90o,45o
• Footboard(up/Down&Horizontal Position)：15 O,90o,90o
• Longitudinal Sliding：350mm
• Power：110~220V,50~60Hz;1.0kw
• Transport Package：Standard Export Packing Box
• Specification：CE
• Trademark：Mermaid
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. OPERATION TABLE DT-12E (ELECTRIC NEW TYPE) Table Height 690mm~1100mm Length and Width 1970mmx500mm Reversed Trendelenburg/Trendelenburg 30o Lateral Tilt (Left/Right) 18o Head Rest(up/Down) 60o/90o Back Rest (up/Down) 90o/45o Footboard(up/Down&Horizontal Position) 15 O/90o/90o Longitudinal Sliding 350mm Power 110~220V/50~60Hz;1.0kw Transport Package Standard Export Packing Box Specification CE Trademark Mermaid Origin China Production Capacity 5000PCS/Year

Product Description

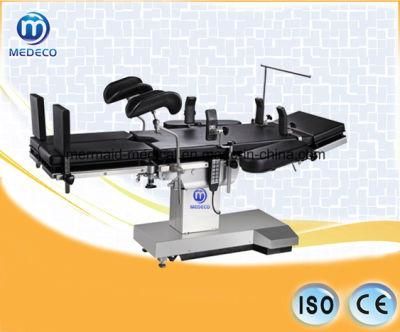

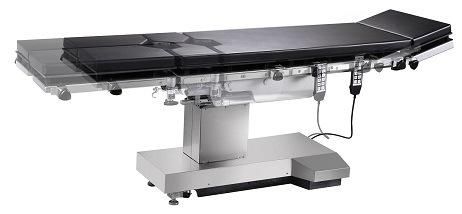

Operation Table DT-12E (new type)Medical Equipment Electric hydraulic

OPERATING TABLE DT-12E  (new type)ELECTRIC HYDRAULIC

One multi-functional medical equipment operating table DT-12E (new type) can meet various requirements of operations.
Long horizontal sliding, suitable for C arm and X-ray. The "T-shape" base design makes enough free space for the doctors.
High automation, low noise, high reliability
Key parts imported from abroad, can be regarded as a ideal electric table.
Large-scale elevation makes it easier for C-arm fluoroscopy examination.
With built-in kidney bridge suit for kidney operation.
Optional traction for orthopedics, head rest for Aural surgery, extend functions of the table The cover all adopted premium 304 stainless steel, the main body used cast aluminum, anti-rust and corrosionthe tabletop adopted phenol aldehyde Photograph board which is suitable for X-Ray.

SPECIFICATION

Table height: 690mm~1100mm
Length and width: 1970mmx500mm
Reversed Trendelenburg/Trendelenburg: 30º
Lateral Tilt (Left/Right): 18º
Head rest(up/down): 60º/90º
Back rest (up/down): 90º/45º
Foot Board (up/down&outward): 15º/90º/90º
Longitudinal Sliding: 350mm
Power: 110~220v/50~60Hz; 1.0kW

Standard Accessories

1. Pads: 1 Set
2. Leg support: 1 Pair
3. Arm support: 1Pair
4. Shoulder support: 1 Pair
5. Body support: 1 Pair
6. Anesthetic Screen: 1 pc
7. Footboard: 1Pair
Operating Table DT-12E (new type)Medical Equipment Electric hydraulic
