• Model NO.：FY012
• Condition：New
• Load Capacity：6000 N
• Input Voltage：24V
• Stroke：50~1000mm Optional
• Protection Class：IP54
• Mini Install Dimension：S+175mm
• Limit Switches：Inner
• Warranty：2 Years
• Type of Duty：S2-10min
• Usage：Furniture Equipment,Sofa
• Color：Black or White
• Transport Package：in Standrd Box or as Required
• Specification：6000N
• Trademark：JDR
• Origin：Jiangsu, China (Mainland)
• HS Code：940190900
• Production Capacity：1, 4000PCS,Month

Basic Info.

Model NO. FY012 Condition New Load Capacity 6000 N Input Voltage 24V Stroke 50~1000mm Optional Protection Class IP54 Mini Install Dimension S+175mm Limit Switches Inner Warranty 2 Years Type of Duty S2-10min Usage Furniture Equipment,Sofa Color Black or White Transport Package in Standrd Box or as Required Specification 6000N Trademark JDR Origin Jiangsu, China (Mainland) HS Code 940190900 Production Capacity 1, 4000PCS/Month

Product Description

Input Voltage: 24 v DC

Load Capacity: 6000N

Max Speed: 4MM/S(4000N), 9mm/s(2000N)

Stroke: 0~1000mm(option)

Type of duty: S2-10min

Limit switches: Inner

Operation Temperature: -26--65 centigrade

Protection Class: IP54

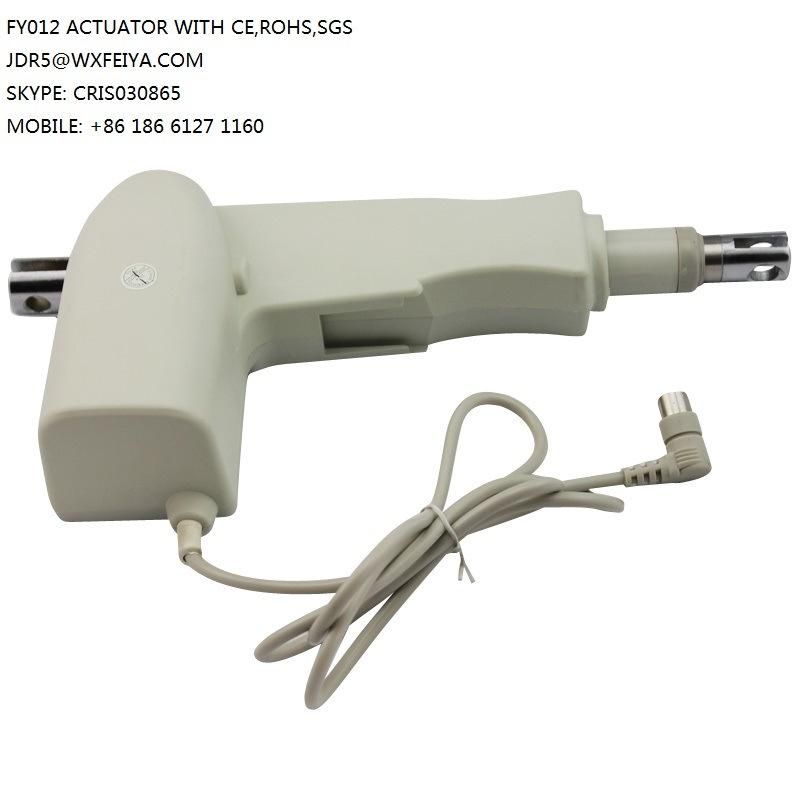

Certification: CE/EMC+LVD, RoHS

Type: Furniture part

Material: Metal and plastic

Use: Traction bed

Place of origin: Jiangsu, China(mainland)

Function: Driving

Shape: Linear

Power: DC

More inforamtion

1) 24VDC permanent magnet motor

2) Thrust up to 6000N in push, and up to 4000 N in pull

3) Elegant and compact design with small instanllation dimensions

4) Built-in limit switches ( not adjustable after leaving factory )

5) Aluminium or zinc outer tube / inner tube

6) Electric chromate steel piston rod eye with slot

7) High-strength plastic housing protects motor and gears

8) Standard protection class: IP 54

9) Scratch and wear-resistant power painting

10) Noise level < 50 dB

11) Warranty: Two years

12) Duty cycle: 10%, or 2 munutes continous working followed by 18 minutes not in use

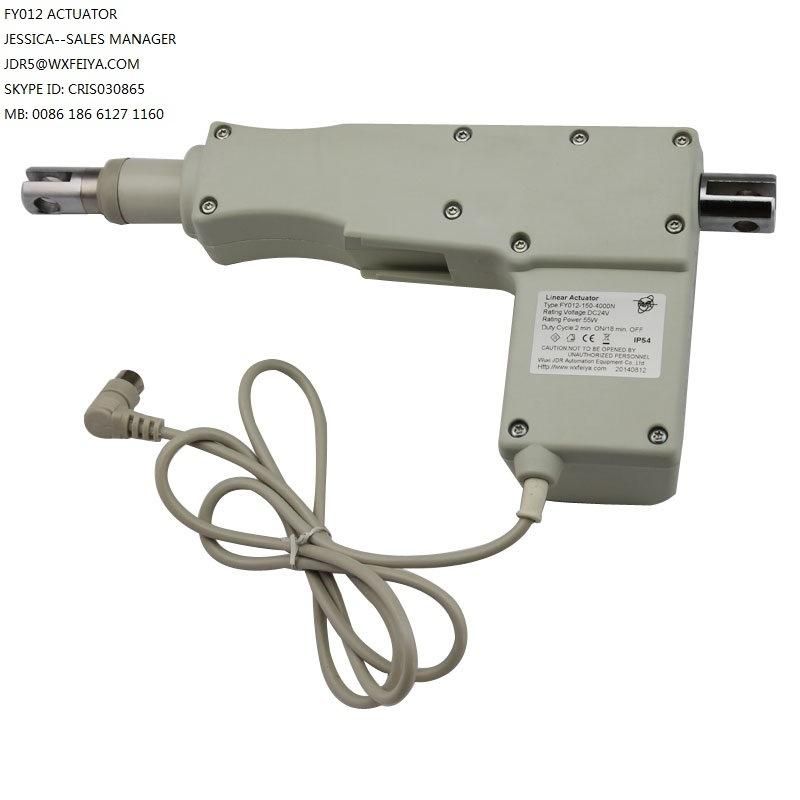

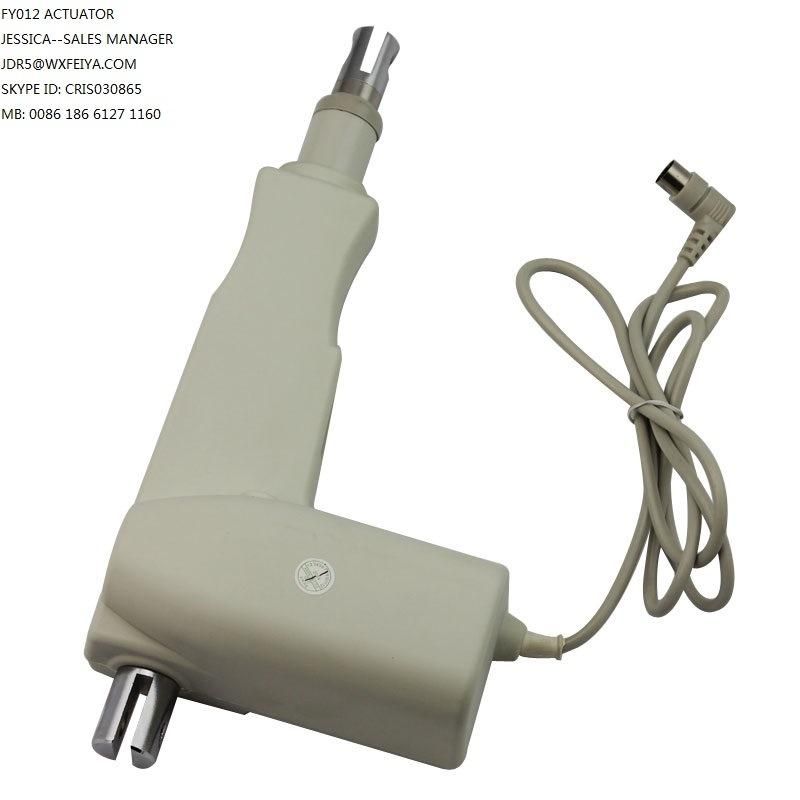

Name:	Linear  Actuator
Model:	FY012
Usage:	Electric  Nursing  Bed,   Electric  Hospital  Bed,   Personal  Care  Bed,   other  Application  use
Input  Voltage:	24v  DC
Load  Capacity:	2000N,   4000N
Free  Load  Speed:	9mm/s,   4mm/s
Standard  Stroke:	50  mm  ---  1000mm  (Optional)
Installation  Dimension:	S  +  175mm
Type  of  Duty:	S2  --  10  min  (2  minutes  work,   18  minutes  rest)
Limit  Switch:	Builtin  /  Inner  (can  not  be  adjust  after  left  factory)
Work  Temp.:	-26  to  65  centigrade
Protection  Grade:	IP54
Certificate:	CE  /  EMC  +  LVD,   RoHS

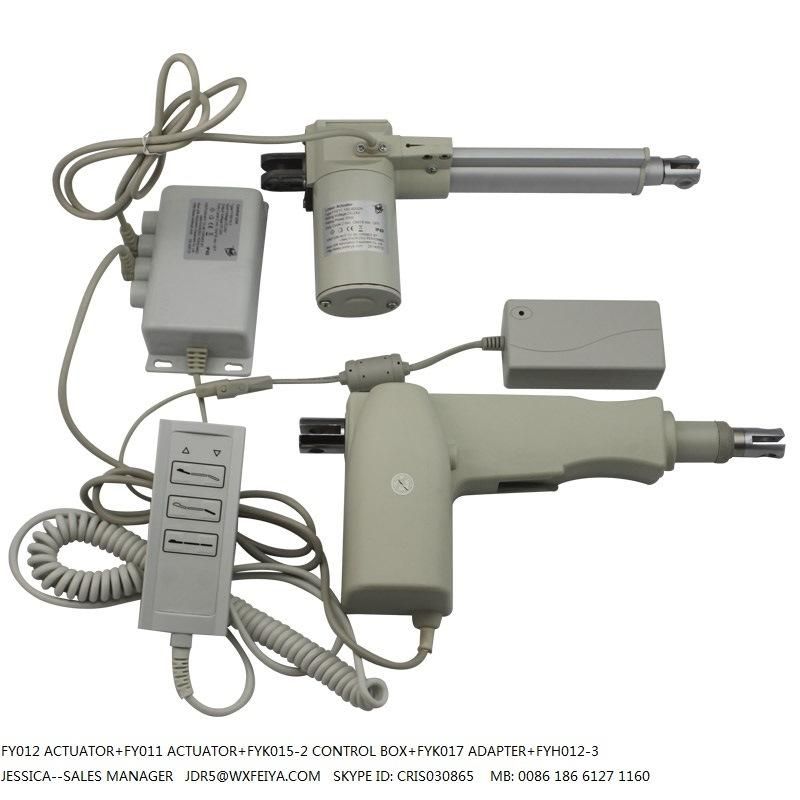

Control  Box  Used:	Control  1  Linear  Actuator:   FYK011-1,   FYK012-1,   FYK015-1,   FYK016-1,   FYK017A
	Control  2  Linear  Actuators:   FYK011-2,   FYK012-2,   FYK015-2,   FYK016-2
	Control  3  Linear  Actuators:   FYK011-3,   FYK012-3,   FYK016-3
	Control  4  Linear  Actuators:   FYK012-4,   FYK016-4
	Control  5  Linear  Actuators:   FYK012-5,   FYK016-5
	Control  6  Linear  Actuators:   FYK016-6
Handset  Used:	All  FYH  Series  Handset,   Pls  contact  us  for  detail  pictures.
