Electric Hospital Bed Motor
Wuxi JDR Automation Equipment Co., Ltd.- Material：Plastic + Metal
- Type：Nursing Bed
- Folded：Medical Bed Motor
- Using Ambient：Hospital
- Certification：CE
- Condition：New
Base Info
- Model NO.：FY013
- Transport Package：Standard Export Carton
- Specification：CE , RoHS
- Trademark：JDR
- Origin：China
- HS Code：8479909090
- Production Capacity：5000 Sets , Month
Description

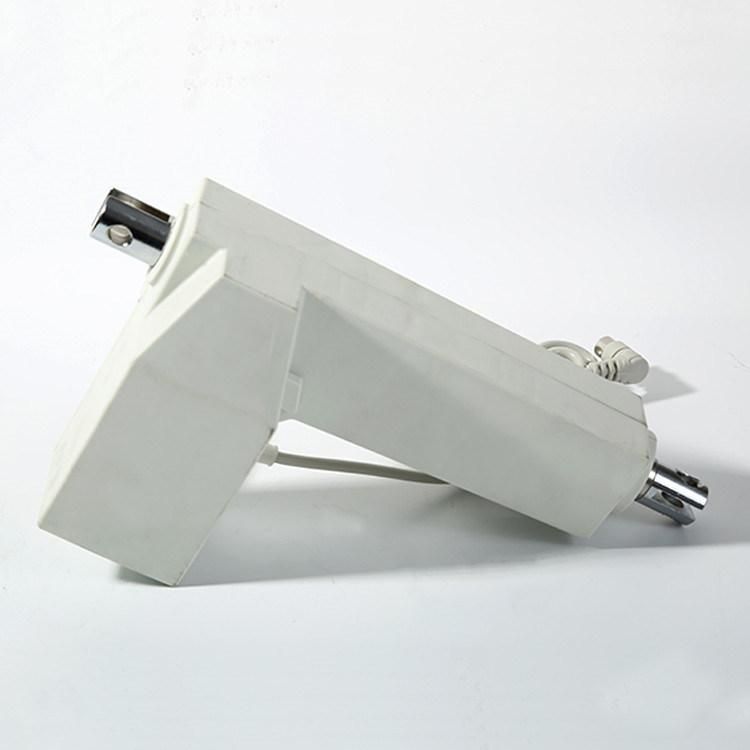

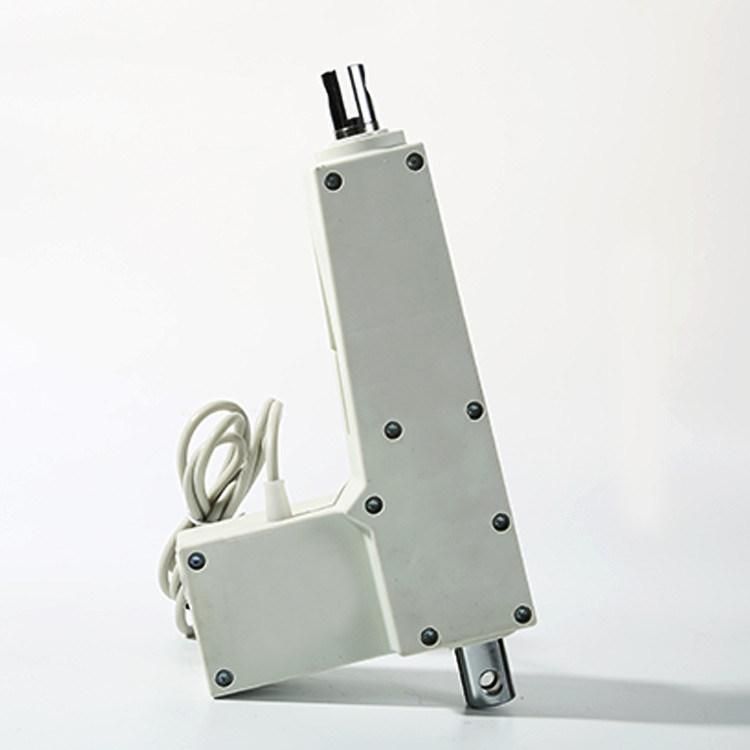

Electric Hospital Bed Motor
1) Medical Linear Actuator
2) Used in Medical traction bed.
3) CE, RoHS approval
Specifications of FY013 Linear Actuator:
Name: Linear Actuator
Model: FY013
Usage: Electric Nursing Bed, Electric Hospital Bed, Personal Care Bed, other Application use
Input Voltage: 24V DC
Load Capacity: 6000N, 8000N
Free Load Speed: 4mm/s, 3mm/s
Standard Stroke: 50 mm --- 1000mm (Optional)
Installation Dimension: S + 175mm
Type of Duty: S2 -- 10 min (2 minutes work, 18 minutes rest)
Limit Switch: Builtin / Inner (can not be adjust after left factory)
Work Temp.: -26 to 65 centigrade
Protection Grade: IP54
Certificate: CE / EMC + LVD, RoHS
Control Box Used:
Control 1 Linear Actuator: FYK011-1, FYK012-1, FYK015-1, FYK016-1, FYK017A
Control 2 Linear Actuators: FYK011-2, FYK012-2, FYK015-2, FYK016-2
Control 3 Linear Actuators: FYK011-3, FYK012-3, FYK016-3
Control 4 Linear Actuators: FYK012-4, FYK016-4
Control 5 Linear Actuators: FYK012-5, FYK016-5
Control 6 Linear Actuators: FYK016-6
Handset Used: All FYH Series Handset, Pls contact us for detail pictures.
