Hospital Furniture

Hospital Multifunctional Electric C Arm Advanced Operation Bed Hydraulic Surgery Integrated Operating Table

Shandong Grand Medical Equipment Co., Ltd.
  • Type:Operating Floor
  • Folded:Unfolded
  • Customized:Customized
  • Condition:New
  • Warranty:2 Years
  • OEM:Yes

Base Info

  • Model NO.:DST-III
  • Manufacture Company:Yes
  • Electric or Hydraulic:Both Electric Hydraulic
  • Bed Height From The Ground:660-1000mm
  • Power Supply:220V 50Hz 300va
  • Capacity Weight:300kg
  • Transport Package:Wooden Case
  • Specification:2150*540mm
  • Trademark:Grand
  • Origin:China
  • Production Capacity:1000 Sets Per Month

Description

Basic Info.

Model NO. DST-III Manufacture Company Yes Electric or Hydraulic Both Electric Hydraulic Bed Height From The Ground 660-1000mm Power Supply 220V 50Hz 300va Capacity Weight 300kg Transport Package Wooden Case Specification 2150*540mm Trademark Grand Origin China Production Capacity 1000 Sets Per Month

Product Description

Grand Medical-- manufacture of Hospital Furniture & OT Equipments. Semi electric hospital bed, automatic hospital bed, lifting hospital beds factory. Semi Electric Operation Table, Hydraulic Operating table. Electric Mobile Operation Table  Electrical Movement radiolucent hospital beds. X-ray imaging operating table. Operating lamps, medical pendants.

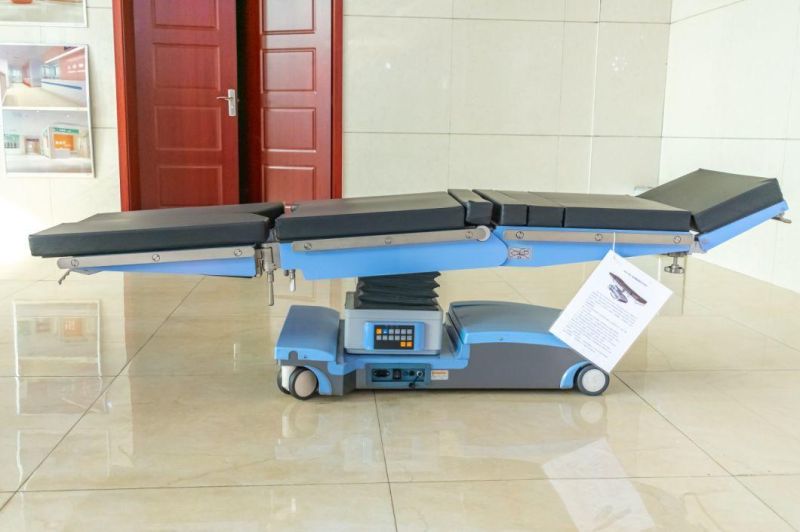

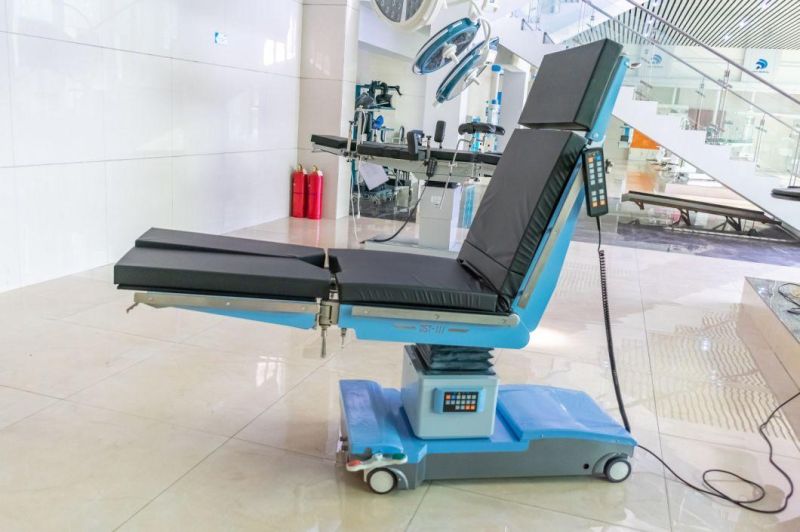

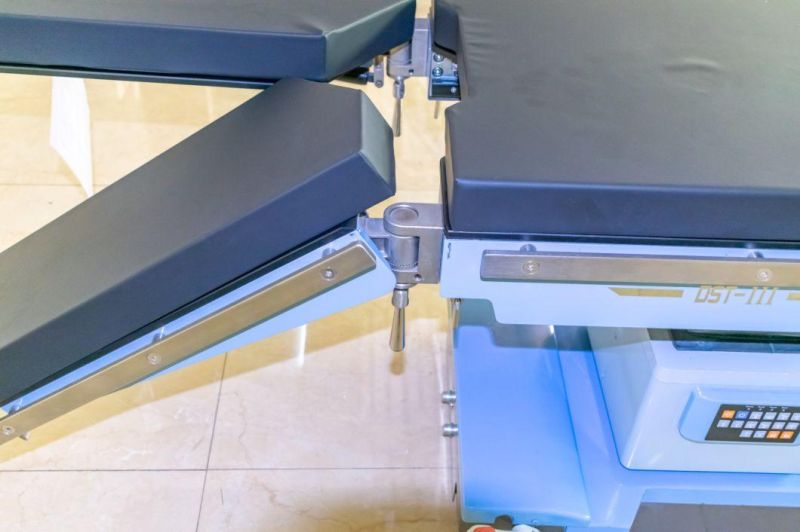

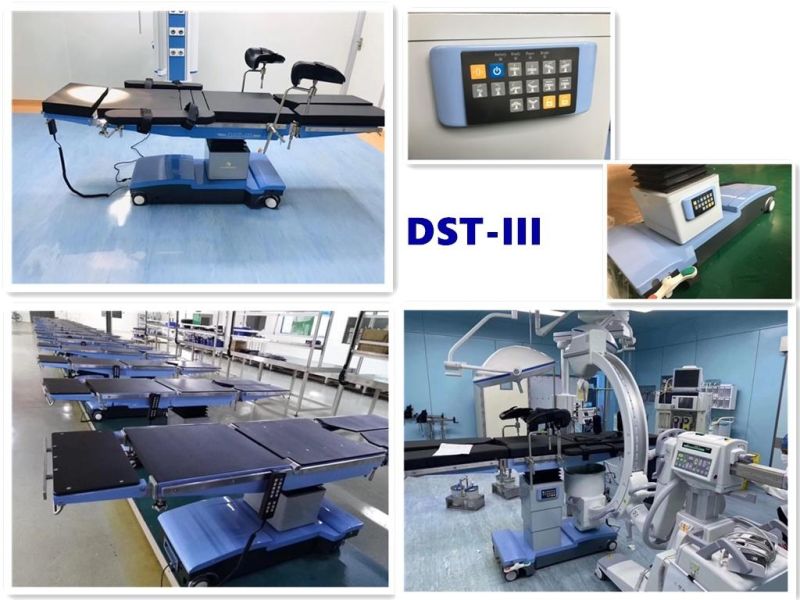

 Model: DST-III

 Name: Electric Hydraulic Integrated Operating Table

Hospital Multifunctional Electric C Arm Advanced Operation Bed Hydraulic Surgery Integrated Operating Table
Introduction:

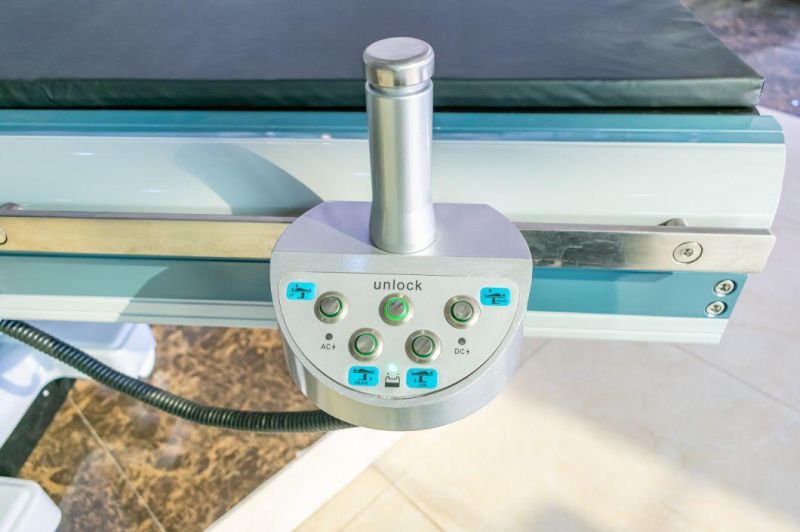

1. DST-III use electric and hydraulic. Germany Dunkeron motor with advanced hydraulic transmission.
2. 350mm horizontal movement. Micro-computor control presion stability. Full carbon fiber material, China patent, very high clearance, supply accurate space for C-arm and X-ray imaging of full body without moving the patient.

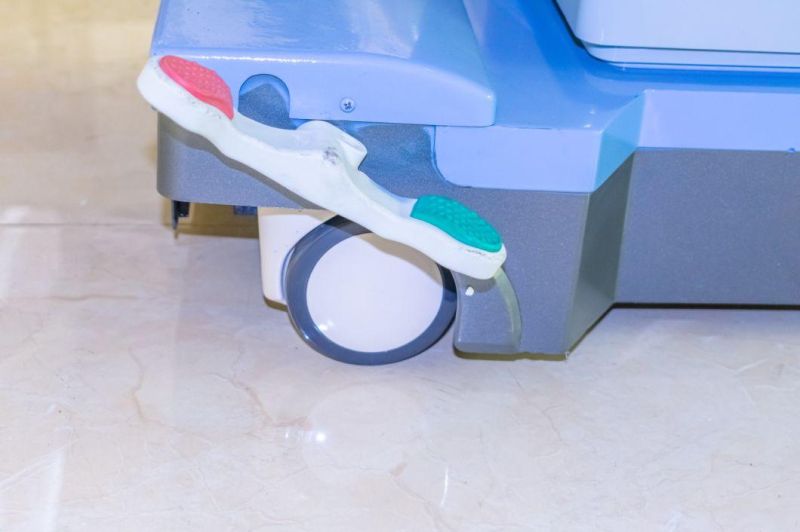

3. 304 stainless steel for the cover of ABS base. ≥100mm castors can be electric locked.
4. Backup battery for one week( 80-100 times) surgeries.
5. It has standard and reverse standard for head and foot exchange function.
6. One reset function, with two independant electric controlling system. High density memory mattress.


Hospital Multifunctional Electric C Arm Advanced Operation Bed Hydraulic Surgery Integrated Operating Table


Hospital Multifunctional Electric C Arm Advanced Operation Bed Hydraulic Surgery Integrated Operating Table

Hospital Multifunctional Electric C Arm Advanced Operation Bed Hydraulic Surgery Integrated Operating Table
Hospital Multifunctional Electric C Arm Advanced Operation Bed Hydraulic Surgery Integrated Operating Table
Technical Data

Bed Panel size(2015x540mm)±10mm
Bed height from the ground (without pads)Min height: (660±20)mm
Max height: (1000±20)mm
Lifting route (electric)340mm±20mm
Horizontal route (electric)350mm±20mm
Head and foot tilt(electric)Head down tilt:25°± 2°
Foot down tilt: 25°± 2°
Lateral tilt (electric)Left:22°± 2°
Right: 22°± 2°
Head section fold (manual)Upward: 30° ±2°
Downward: 90° ±2°
Back plate fold( electric)Upward: 70° ±2°
Downward: 32° ±2°
Leg plate fold( manual)Upward: 28° ±2°
Downward: 90° ±2°
Table panel x-ray absorption coefficient≤0.44mmAL
Power supply220V 50Hz 300VA
Net weight/capacity weight260kgs/300kgs

Hospital Multifunctional Electric C Arm Advanced Operation Bed Hydraulic Surgery Integrated Operating TableHospital Multifunctional Electric C Arm Advanced Operation Bed Hydraulic Surgery Integrated Operating Table
Hospital Multifunctional Electric C Arm Advanced Operation Bed Hydraulic Surgery Integrated Operating Table
Our certificate

Hospital Multifunctional Electric C Arm Advanced Operation Bed Hydraulic Surgery Integrated Operating Table

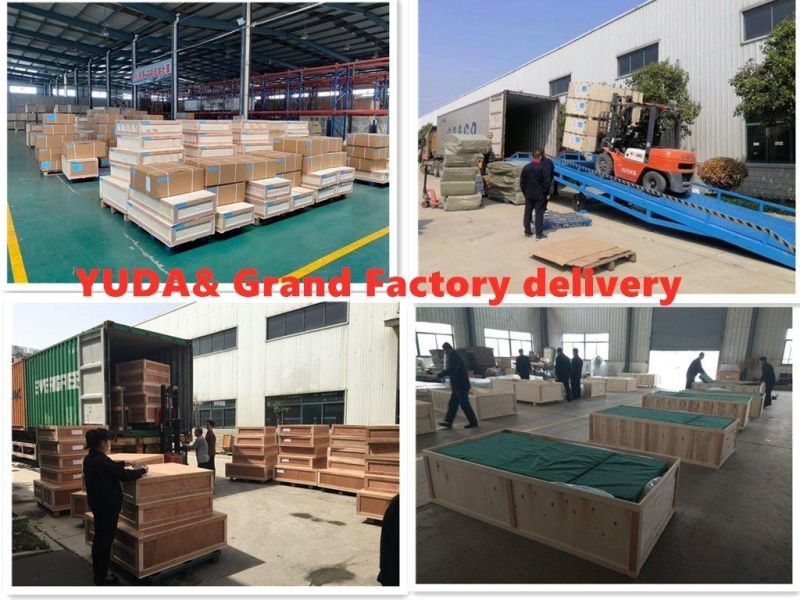

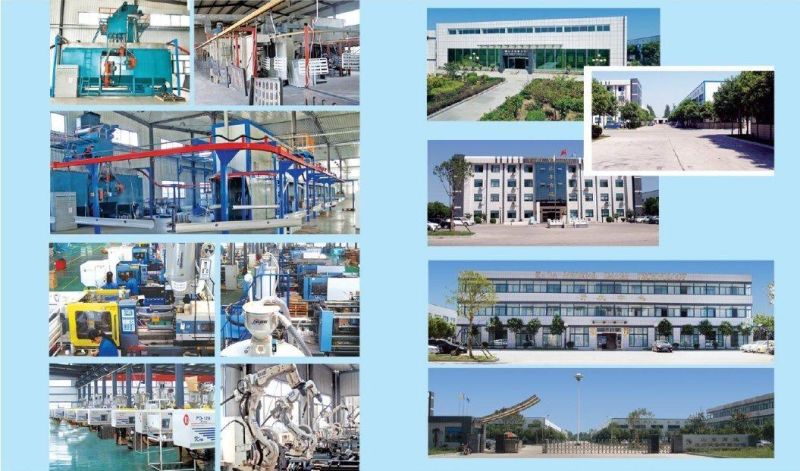

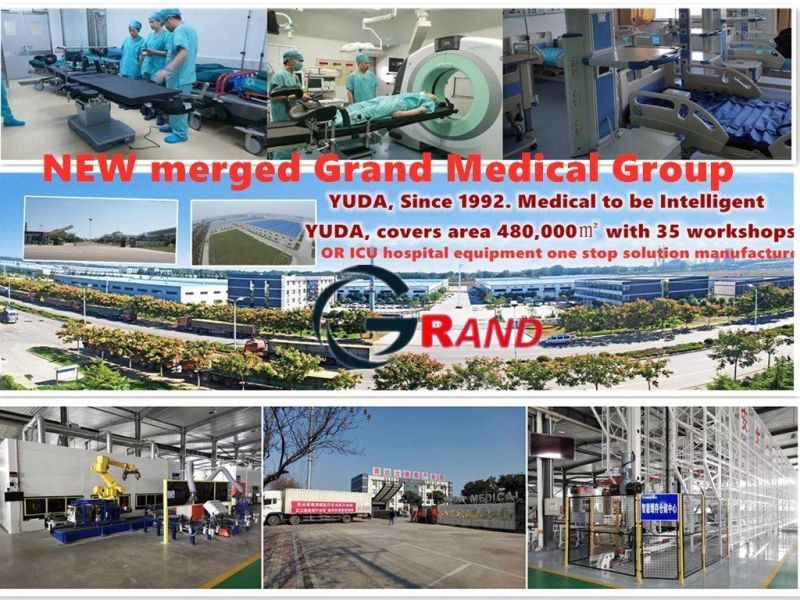

Our factory

Hospital Multifunctional Electric C Arm Advanced Operation Bed Hydraulic Surgery Integrated Operating Table
Hospital Multifunctional Electric C Arm Advanced Operation Bed Hydraulic Surgery Integrated Operating Table
                                                   Company Introduction

    Grand Medical is a merged group.( the premier founder is YUDA medical group). It is established in 1992. The factory is located at Yanzhou economic development zone, Shandong Province, China. In 1992 year, YUDA medical group established, by producing hospital beds and medical carts.
     We accumulated rich experience and technology. In 1998, we begin to produce OR equipment, like operating lamp, operating table and medical pendant. Since 2009, we constanly invested more than 30 million dollars on modern factory workshops to improve the production technology for hospital furniture, OR equipment, and ICU equipment, and R&D on medical imaging radiology, like digital X-ray imaging machine, monitor and ultrasound machine.Since 2015 year,  we became largest medical manufacture group in North China,  covers more than 480,000 square meters factory, with 38 workshops, and globally marketing system.
       In the year 2020, Grand Medical Group, by inner prdoucts workflow growth,  strategic merger and with the third factories participation, becone an extensive medical coverage manufacture enterprise. With more than 30years experience, we are equipped to serve every possible global  heatlh programme and cater for every medical supply need that our customer may have.
Hospital Multifunctional Electric C Arm Advanced Operation Bed Hydraulic Surgery Integrated Operating Table
FAQ


Q: Are you manufacturer ?
A: Yes,we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,ISO13485?
A: Yes,our products are approved by CE,ISO13485, FDA, Russia CE.
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Payment term?
A: 1.L/C at sight;
    2.T/T:30% deposit by T/T,70%balance by T/T before shipment
    3.Trade term:EXW, FOB Shanghai or CIF&CFR
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
    2.All of the productions are inspected carfully by QC before delivery.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is5-10 days after receiving the deposit;
If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30days,It depends on the quantity of order
Q: What is your Min.order?
A: There's no minimum quantity
