• Model NO.：DD-6
• OEM：Available
• Power：AC220, 50Hz
• Voltage：150W
• Upper Body Bed Surface：590*600mm
• Lower Body Surface：1330*600mm
• Bed Height：410-750mm
• Standing Angle：0 °--90°
• Loading：135kg
• Driving Mode：Microcomputer Control
• System Prescription：20 Prescriptions
• Transport Package：Export Carton Package
• Specification：2115*725*600mm
• Trademark：WANROOEMED
• Origin：China
• HS Code：94029000
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. DD-6 OEM Available Power AC220, 50Hz Voltage 150W Upper Body Bed Surface 590*600mm Lower Body Surface 1330*600mm Bed Height 410-750mm Standing Angle 0 °--90° Loading 135kg Driving Mode Microcomputer Control System Prescription 20 Prescriptions Transport Package Export Carton Package Specification 2115*725*600mm Trademark WANROOEMED Origin China HS Code 94029000 Production Capacity 500 Sets/Month

Product Description

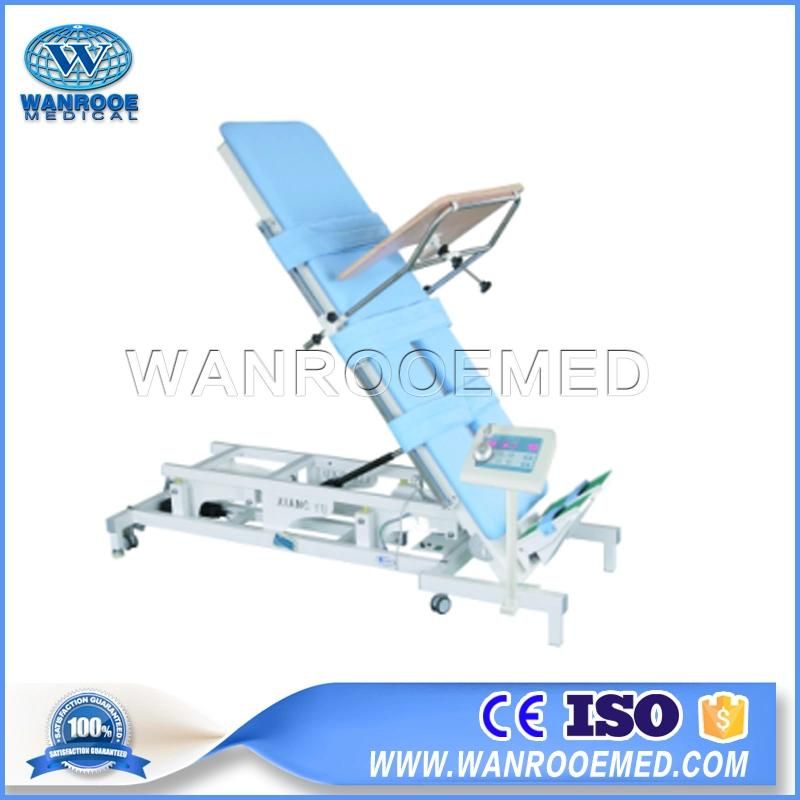

DD-6 Remote Switch Controls Rehabilitation Hospital Tilt Bed


Besides the ordinary tilt bed characters, it has the following charcters:
1. The total time is adjusted from 0-60 mins, the tilt time is adjusted 0-9s, intermittent time is adjusted 0-90s.
2. Equipped with hand control switch and other safety device.
3. Remote switch controls foot pedal rotation and bed surface lifting.
4. Microcomputer controls tilt angle: 0 ° -90°

Technical Parameters:
Power: AC220, 50Hz
Voltage: 150W
Upper body bed surface: 590*600mm
Lower body surface: 1330*600mm
Angle between upper body surface and lower body surface: 0 ° --45°
Bed height: 410-750mm
Bed size: 2115*725*600mm
Standing angle: 0 ° --90°
Foot rest adjustable up and down angle: -10 ° --3 0° (relative to horizontal direction)
Foot rest internal and external adjustable angle: -30 ° --30° (clockwise as positive angel)
Loading: 135kg
Driving mode: Microcomputer control
System prescription: 20 prescriptions
Music: 200 songs playing freely
Treatment time: 0-90mins adjustable
Intermittent time: 0-90s
Remote control: RF remote control, validity within 15m
