• Model NO.：BT-TR065
• Safe Working Load：170kg
• Transport Package：Carton
• Specification：2100*850*630-950mm
• Trademark：BESTRAN
• Origin：Suzhou Jiangsu China
• HS Code：9402900000
• Production Capacity：10000

Basic Info.

Model NO. BT-TR065 Safe Working Load 170kg Transport Package Carton Specification 2100*850*630-950mm Trademark BESTRAN Origin Suzhou Jiangsu China HS Code 9402900000 Production Capacity 10000

Product Description

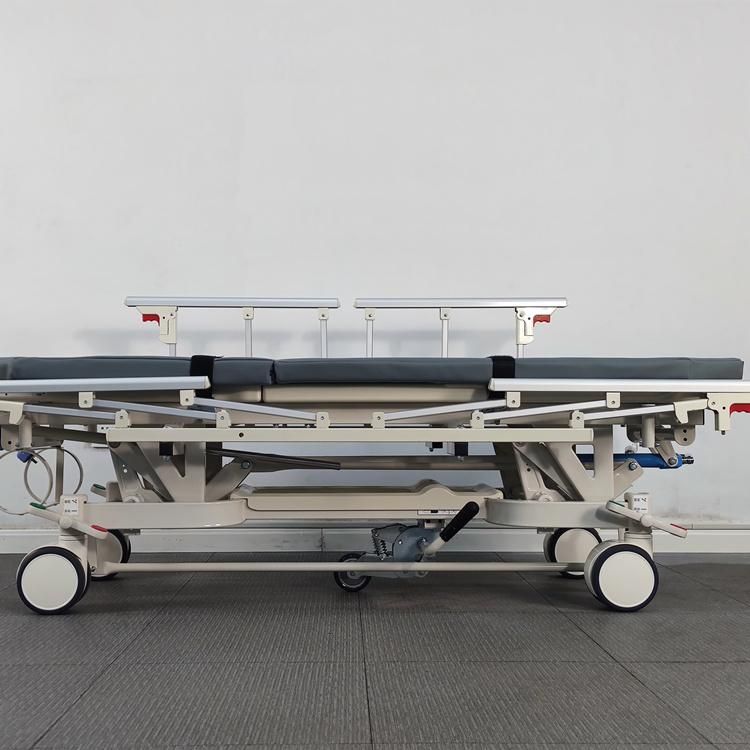

BT-TR065 emergency treatment hydraulic hospital patient transport stretcher trolley

Technical Parameter

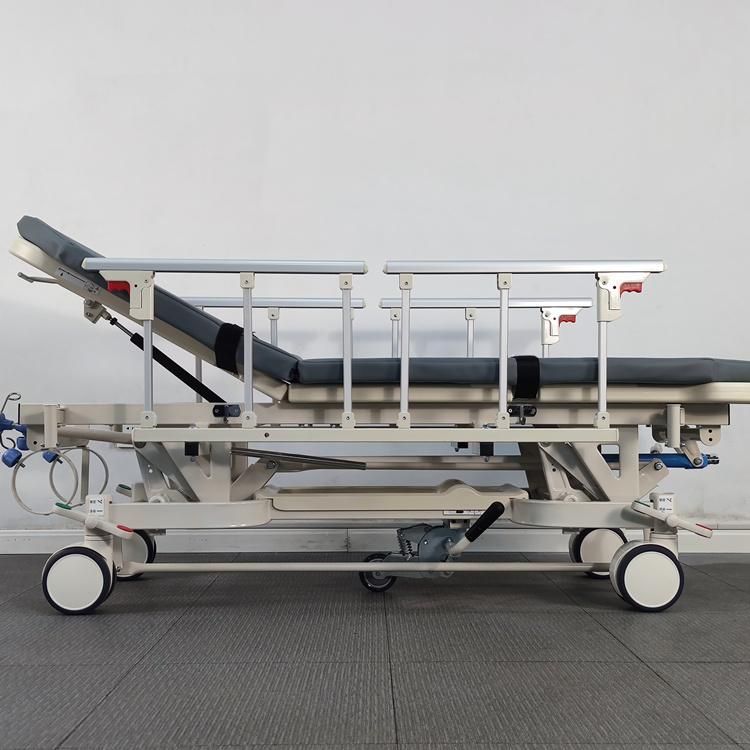

1. Specifications: Full length 1930mm, full width 670mm, height lift 510-850mm, back lift 0-70°.
2. Safe working load: 170KG
3. Back lifting system: The back lifting is controlled by a silent gas spring.
4. Height adjustment: metal material rocker system, overload protection function, not easy to break.
5. Bed board: PE resin molding products.
6. Frame: It is made of welded steel products.

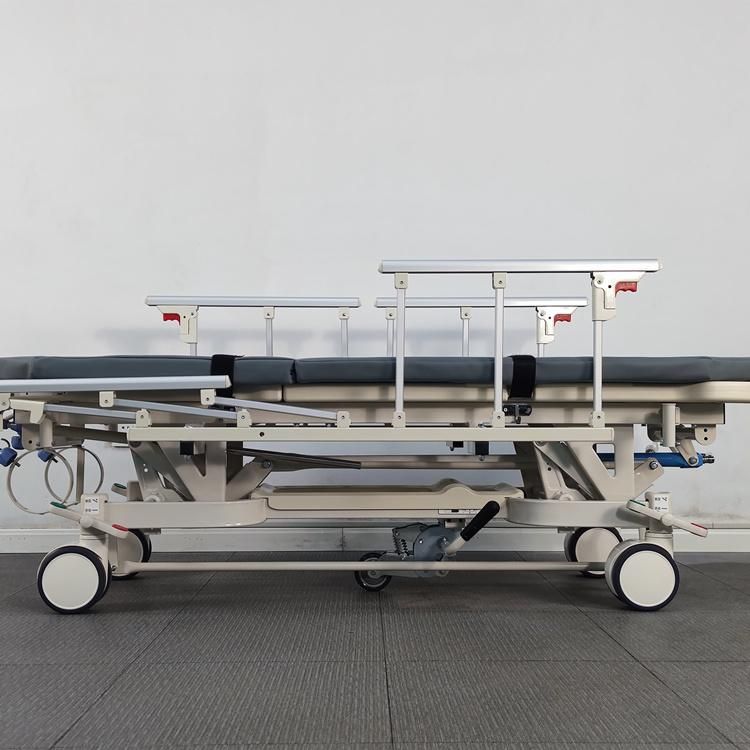

7. Guardrail board: PE resin molded guardrail boards on both sides, the height of the guardrail is ≥360mm, the effective protection height is ≥260mm, and the patient is safer. The guardrail is installed on two iron plates welded vertically with the bed through step screws to ensure The fluency and intensity of the activity is better.
8. The guardrail adopts a new safety guardrail design. The buckle of the guardrail is fixed by a 9mm thick lock. When the guardrail is under stress, it cannot be opened. The guardrail can be opened from the outside to the inside, thus effectively preventing the patient from getting inside. Misoperation, resulting in bed falling accidents, making it safer;
9. There are three round holes on the guardrail panel, which is convenient for medical staff to implement from all angles and observe the patient. The guardrail thickness ≥43mm has better grip and higher strength.

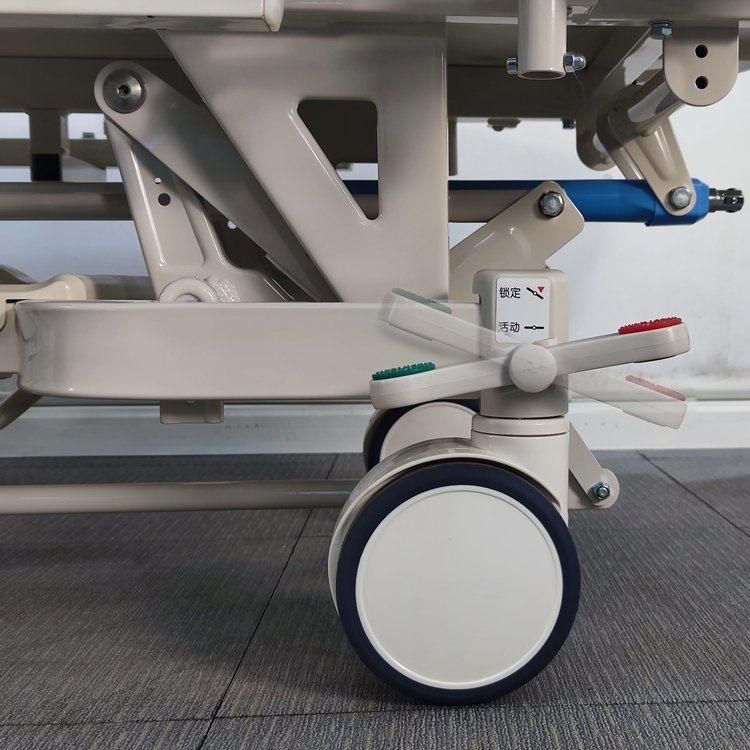

10. Casters: Double-sided anti-winding casters with central lock, prevent hair and other sundries from entering the casters and causing implementation failures. Internal steel brackets, double-bearing cylindrical structure, large load capacity, strong anti-collision and anti-side force effects There are four casters with a diameter of 150mm. The four corners of the cart are equipped with a caster control system. One foot brakes and the four wheels are fixed at the same time.
11. The central control brake linkage rod is formed by an integrated round tube to ensure higher strength.
12. Independent central fifth wheel system: control pedals are installed on both sides of the cart, and the central fifth wheel can move freely when retracted;
13. Tray: There is an injection molded two-stage tray under the bed. The tray is divided into two parts with different sizes and depths. It is equipped with 6 leaking holes and is easy to use. The tray can bear 10Kg.
14. Infusion stand storage rack, the lower part of the back plate is equipped with infusion stand storage rack, which can be fixed and stored when not in use, and there is a plastic sleeve in the infusion stand storage rack to prevent the infusion stand from colliding and shaking.
15. Oxygen bottle shelf, can place a maximum of 7 liters of oxygen cylinders horizontally on the underside of the bed, and has two knobs for fixing.
16. Transfer mattress: The mattress has a three-stage structure, the surface of the fabric is waterproof, easy to clean, and the four corners are equipped with zippers;
17. There are four stainless steel metal hooks on the side of the bed, which are riveted and fixed with stainless steel rivets, which have better strength and more beautiful appearance.
18. The frame of the bed body is welded vertically by a U-shaped square tube of 30*60*1.5mm, with better strength and stable implementation.

1. Infusion stand socket: There are infusion stand sockets around the bed, which can be rotated to place the infusion stand when in use, and can be rotated and stored under the bed when not in use. There is a plastic sleeve in the infusion stand socket to prevent collisions. Beautiful and easy to use.

Surgical Workshop

Certificate

Packing&Shipping

1PCS in a Box
Meas:1360×860×880mm
G/N.W:300/250KG
