• Model NO.：RH-FA800C
• Transport Package：Crate
• Specification：1930*678*510-850mm
• Trademark：Power Flower
• Origin：China

Basic Info.

Model NO. RH-FA800C Transport Package Crate Specification 1930*678*510-850mm Trademark Power Flower Origin China

Product Description

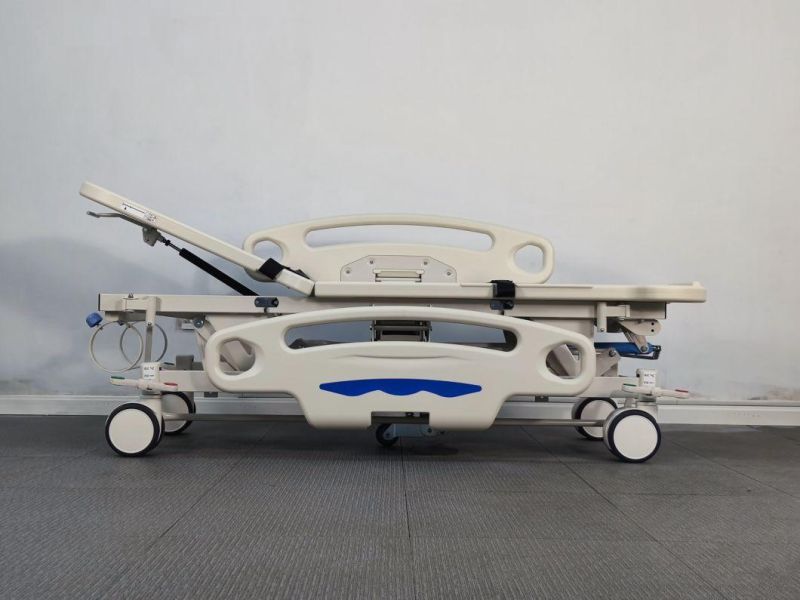

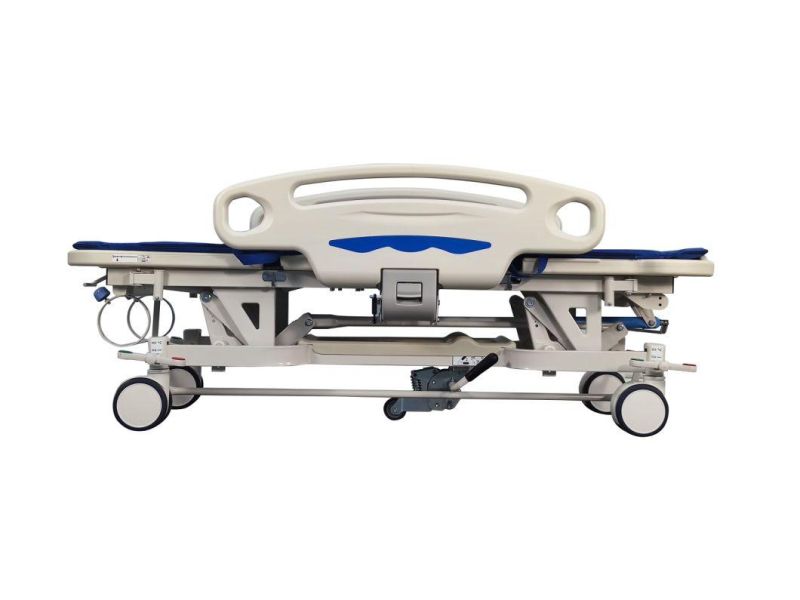

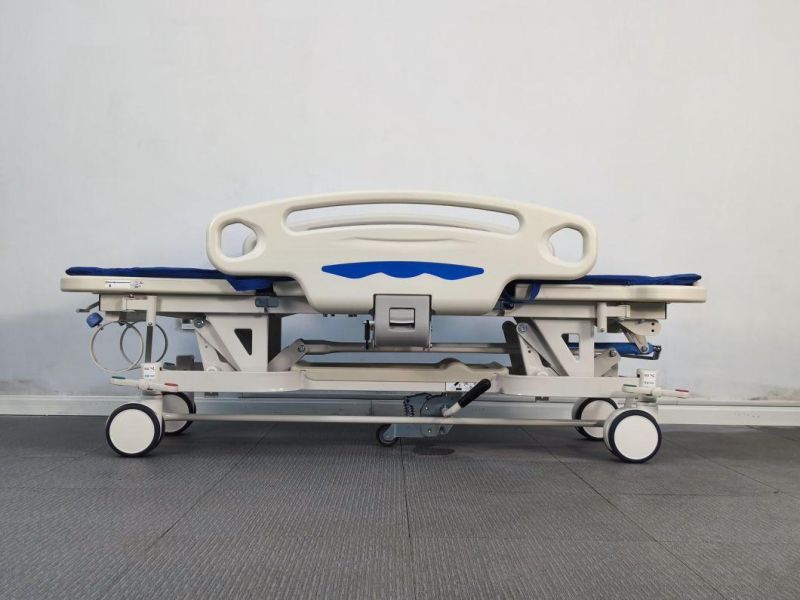

RH-FA800C Patient Transfer Trolley





Description

1.Guardrail board: PE resin molded guardrail board on both sides, the height of the guardrail is ≥360mm, the effective protection
   height is ≥260mm, and the patient is safer. The guardrail is installed on two iron plates welded vertically with the bed through
   step screws to ensure movement The fluency and strength are better.
2.The guardrail adopts a new safety guardrail design. The buckle of the guardrail is fixed by a 9mm thick lock. When the guardrail
    is under stress, it cannot be opened. The guardrail can be opened from the outside to the inside, thereby effectively preventing
    the patient from getting inside. Misoperation, resulting in bed falling accidents, making it safer;
3. There are three round holes on the guardrail panel, which is convenient for medical staff to implement from all angles and
    observe the patient. The guardrail thickness ≥43mm has a better grip and higher strength.

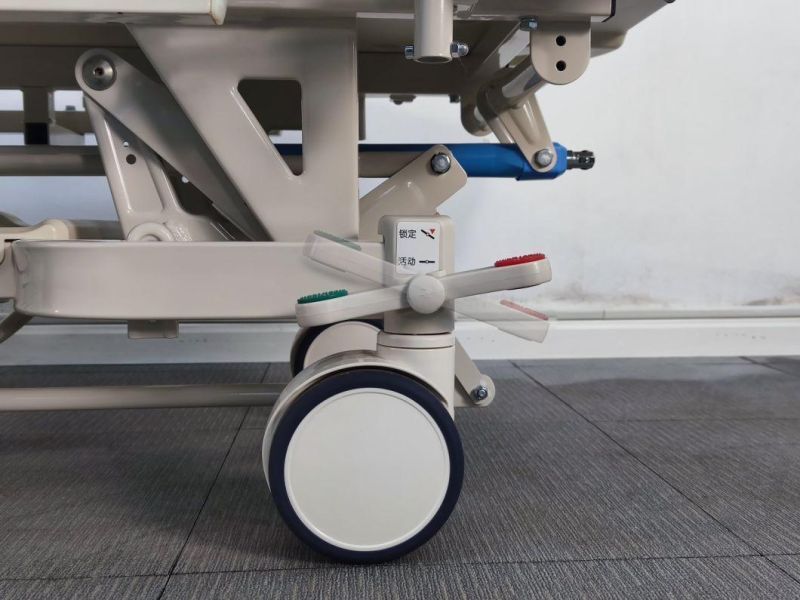

4. Casters: Double-sided anti-winding casters with central lock, prevent hair and other sundries from entering the casters and
    causing implementation failures. Internal steel brackets, double-bearing cylindrical structure, large load capacity, strong anti-
    collision and anti-side force effects, There are four casters with a diameter of 150mm. The four corners of the cart are equipped
    with a caster control system. One foot brakes and the four wheels are fixed at the same time.
5. The central control brake linkage rod is formed by an integrated round tube to ensure higher strength.
6. Independent central fifth wheel system: control pedals are installed on both sides of the cart, and the central fifth wheel can
    move freely when retracted;
7. Tray: There is an injection molded two-stage tray under the bed. The tray is divided into two parts with different sizes and
    depths. It is equipped with 6 leaking holes and is easy to use. The tray can bear 10Kg.
8. Infusion stand storage rack, the lower part of the back plate is equipped with infusion stand storage rack, which can be fixed
    and stored when not in use, and there is a plastic sleeve in the infusion stand storage rack to prevent the infusion stand from
    colliding and shaking.
9. Oxygen bottle shelf, can place a maximum of 7 liters of oxygen cylinders horizontally on the underside of the bed, and has two
    knobs for fixing.
10.Transfer mattress: The mattress has a three-stage structure, the surface of the fabric is waterproof, easy to clean, and the four
     corners are equipped with zippers;
11.There are four stainless steel metal hooks on the side of the bed, which are riveted and fixed with stainless steel rivets, which
     have better strength and more beautiful appearance.
12. The frame of the bed body is welded vertically by a U-shaped square tube of 30*60*1.5mm, with better strength and stable              implementation.
20. Infusion stand socket: There are infusion stand sockets around the bed, which can be rotated to place the infusion stand when
      in use, and can be roated and stored under the bed when not in use. There is a plastic sleeve in the infusion stand socket to
      prevent collisions. Beautiful and easy to use.







Parameter

Dimension: 1930*670*510-850 mm
Back section upward lifting: 0-70°
Loading Capacity: 170 kg

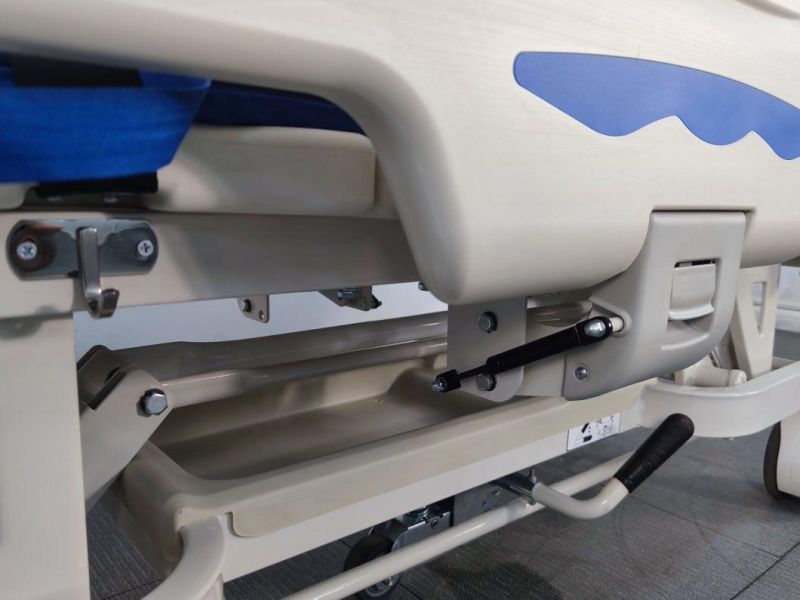

The back lift is controlled by a silent gas spring
Main board: PE resin molding produced
Structure frame: metalic material welding made
Guardrail: PE resin molding products for both side; Height over 360mm, effective protecting range over 260mm






Showcase









FAQ
Q:What are the main products?
A:Power Flower's main products are hospital beds,surgical equipment, medical trolleys& stretchers and stainless steel trolleys and so on.
Q: Why to trust us?
A: All products have ISO and CE with high Quality and Constantly updating.
Q:When do you start?
A: We are absorbed in producing hospital equipment in 2018.
Q:Is OEM available by your company?
A:OEM service is always available.
Quotation offered in 3 days based on customer's requirements.
Q:What is the delivery time of the products?
A: Normally 10-15days.
Q:Free sample available or not?
A: Sample cost will be refund after first bulk order.
Q:How long is the warranty period for you products?
A:Quality assurance 2(two) years.
Q:What are the brands of the important parts that make up the operating bed?
A:Motor parts:JIECHANG.LINAK.LINKAN.Dewert;
B:Electro-hydraulic system:Made In Germany,Superchumbo Made Mix,Made in US;
Q:Does your factory accept customization of products?
A:Of Course.Welcome to Customization.
