• Model NO.：JYK-B7301C
• Seater：Single
• Folded：Folded
• Customized：Non-Customized
• Condition：New
• Control：Manual
• Functions：for Surgeries
• Transport Package：Wood Package
• Specification：CE, ISO
• Trademark：JYK
• Origin：China
• HS Code：94029000
• Production Capacity：500unit,Month

Basic Info.

Model NO. JYK-B7301C Seater Single Folded Folded Customized Non-Customized Condition New Control Manual Functions for Surgeries Transport Package Wood Package Specification CE, ISO Trademark JYK Origin China HS Code 94029000 Production Capacity 500unit/Month

Product Description

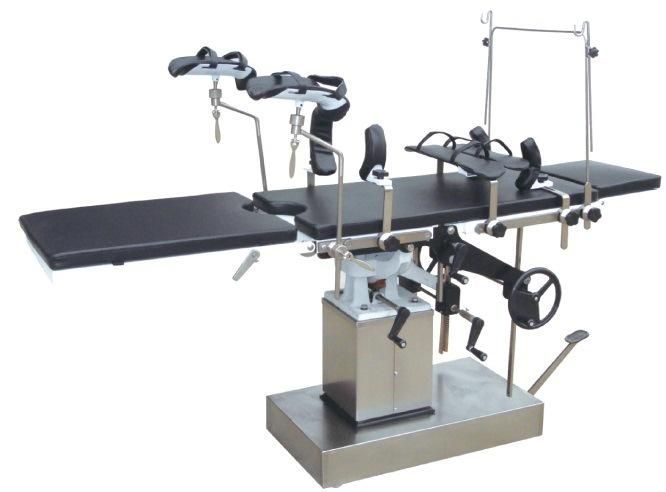

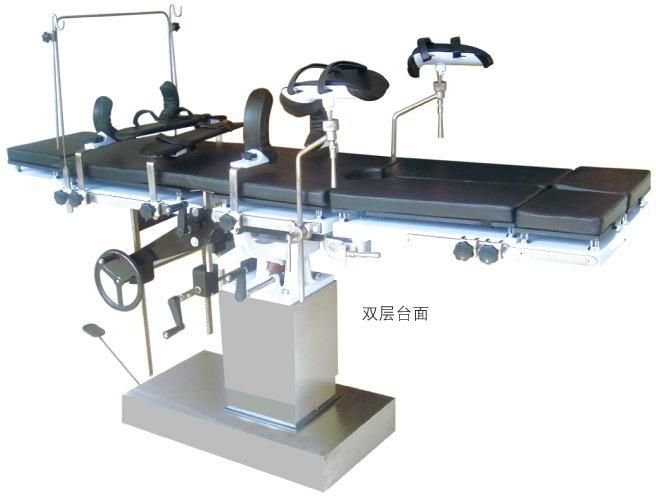

Manual side-manipulating operation table for surgery JYK-B7301C

Surgical table, medical table, medical apparatus

• Model No.: JYK-B7301C
  Size: 2100*480*780-1030mm (L*W*H)
  Description: this table is used for the surgery of head, neck, abdomen, perineum, limbs, gynecology, ophthalmology, otolaryngology and orthopedics, etc. the up and down moving is controlled by hydraulic system. The adjustments is manipulated in the two sides of the board. The adjustment of the back section is controlled by worm gear, wheel gear and gear rack by hand. The material of the board and shield can be chosen between cold-rolled coated steel and stainless steel
  Details:Length/width: 2100mm/480mm
  Height adjustment(up/down): 780mm/1030mm
  Trendelenburg/reverse Trendelenburg: 20°/30°, lateral tilt: 18°/18°, head rest(up/down): 45°/-90°, back section: 75°/ -18°
  Leg plate(up/down): 90°
  Kidney waist bridge: 120mm Standard accessories: * 1, * anesthetic screen, * 2 shoulder rest, * 2 arm support, * 2 waist support, * 2 knee crutch 1 leg board
  Package: 1pc in a box
  Meas: 1400×770×960mm
  G/N.W: 290/245kg
