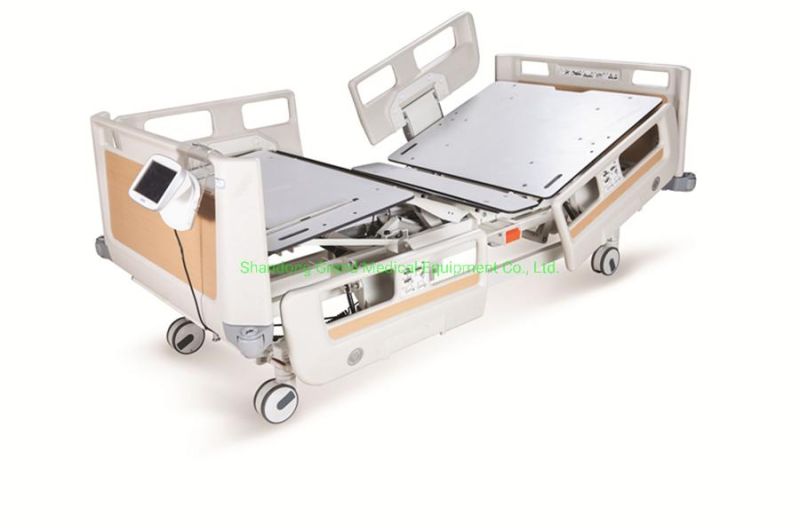

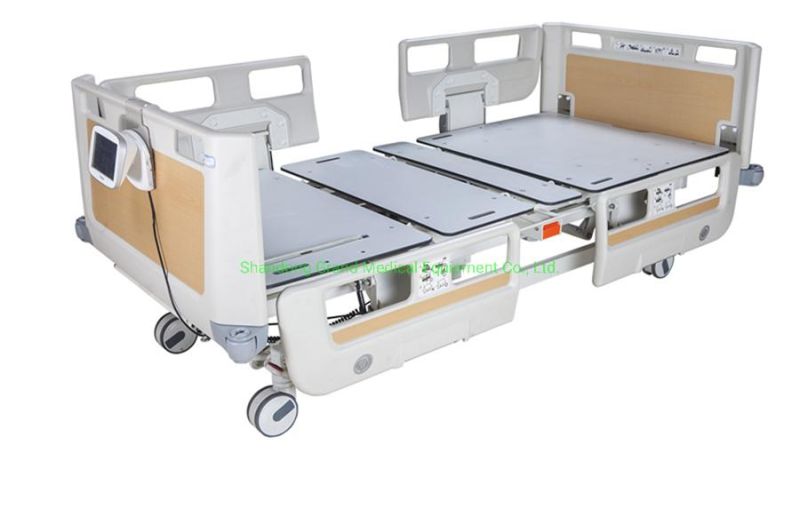

ICU Bed Fast Delivery for Large Qty, Five Function Electric Intensive Care Hospital Bed
Shandong Grand Medical Equipment Co., Ltd.- Material：Metal
- Type：Electric Bed
- Folded：Unfolded
- Using Ambient：Hospital
- Numbers of Function：Two-function
- Certification：CE, ISO13485
Base Info
- Model NO.：FM5
- Transport Package：Paper or Wooden Carton
- Trademark：Grand
- Origin：China
- Production Capacity：10000 Sets Per Years=
Description
Item parameters Height adjustment (calculated from the bed surface to the floor) Back adjustment Knee adjustment Bed panel extension Safe dynamic load Function and configuration Mattress slipper Drainage bag hooks on both sides of the bed, a total of four Casters Head/foot board, guardrail, Dining table optional (over-bed dining table/hanging dining table) Oxygen cylinder rack Optional
Features:
Intelligent weighing; overall lifting 500~850mm, back panel adjustment 65°±5°, leg adjustment 45°±5°, front and rear inclination angle 13°±3°; European style four small guardrail, up and down flip structure; luxurious central control casters, With locking and free two-stage central control locking device; with CPR function; bed plate adopts 1.5mm cold-rolled steel plate, punched into a concave shape, and multi-hole design; calf plate can be adjusted in two sections;
Technical Parameters:

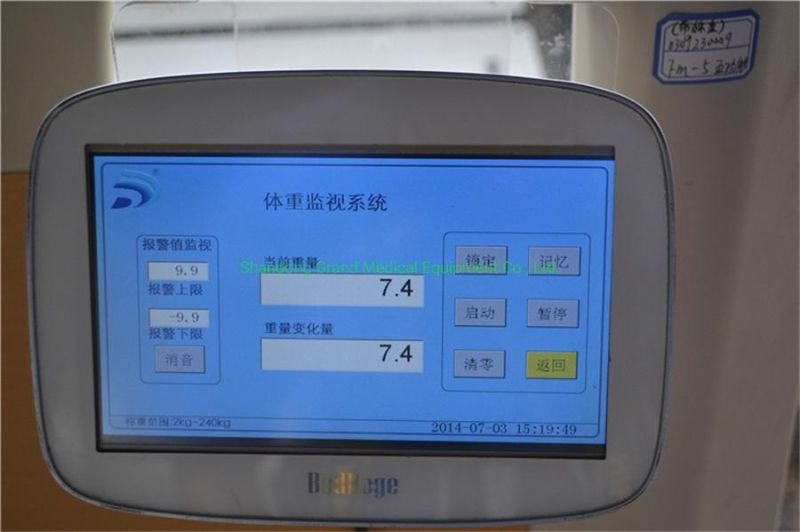

Scientific weighing, weighing accuracy is 50-100g, weighing display, no matter the patient is in any position, just touch a button, the built-in weighing system can be measured, and the data can be accurately displayed on the footboard display.
Bed frame: It is made of 40*80*1.5mm high-quality cold-drawn rectangular tube as the beam and 50*70*2mm high-quality cold-drawn rectangular tube as the crosspiece welded at both ends. The bed frame and the bed foot connection are punched and formed by a 4*50mm drawn flat iron mold, which has enhanced stress resistance. The transmission structure fixing frame is welded by a 30*50*2mm square tube and a 3mm punching piece. The bed head socket is 45 *6mm seamless tube is welded with 50*70*2mm square tube after turning. Fully guarantee the capacity of the bed to carry 200KG.
Bed surface: Anti-double bed board, X-ray can be cast all over the body; it has good anti-corrosion, acid and alkali resistance and various chemical reagents; the back board is equipped with a filming cassette to realize X-ray imaging of the upper body of the patient on the bed;
The bed body is made of Akzo Nobel environmentally friendly antibacterial powder electrostatic spraying, which has the characteristics of anti-corrosion and rust prevention, and beautiful appearance.
The headboard and footboard of the bed are made of imported drug-resistant ABS resin material, which is blow-molded as a whole, with surface texture treatment, easy to clean, and curved design. The head and foot of the bed are equipped with anti-collision corner wheels, which can be replaced separately, which can effectively prevent the bed from colliding with the wall during exercise. The four anti-collision corners are equipped with oxygen cylinder bracket hanging holes. There is a patient information card on the footboard.

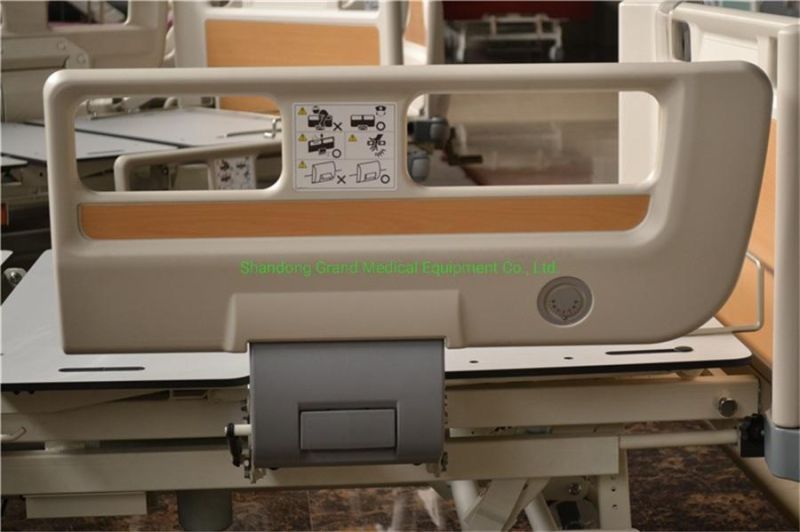

The new American guardrail made of imported ABS material is integrally blow molded. Each guardrail is equipped with a damper device to control speed and noise. It is durable, fast and light. The guardrail design meets the requirements of IEC safety regulations, beautiful and safe.

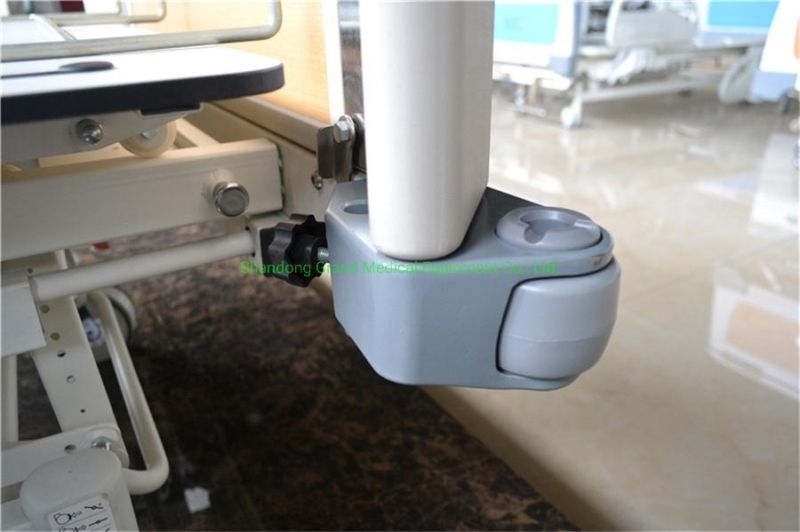

Original German TENTE imported double-sided casters, with a diameter of 125mm, with a three-stage central control locking device of locking, free and directional; high-stability linkage system, silent, corrosion-resistant, high braking force, stable and safe;
Mattress anti-slip device, there are five places on both sides of the backboard and the foot of the bed to prevent the mattress from sliding and improve safety. Fixed position of restraint belt, 3 positions on left and right.
Manual CPR operating wrenches on the left and right sides of the bed can realize rapid treatment and reduce medical accidents in emergency situations. 1 drainage hook on the left and right sides.
The motor adopts imported Danish LINAK original medical motor, with stable speed control and low noise. With EN60601/UV medical certification, it is silent, long life, safe and reliable. The guide rod system adopts high-carbon steel and high-strength aluminum alloy assembly, two-way pole overload protection screw.
Optional German DEWEIT motor or Taiwan Timothy motor;
FAQ
Q: Are you manufacturer ?
A: Yes,we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,ISO13485?
A: Yes,our products are approved by CE,ISO13485, FDA, Russia CE.
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Payment term?
A: 1.L/C at sight;
2.T/T:30% deposit by T/T,70%balance by T/T before shipment
3.Trade term:EXW, FOB Shanghai or CIF&CFR
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
2.All of the productions are inspected carfully by QC before delivery.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is5-10 days after receiving the deposit;
If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30days,It depends on the quantity of order
Q: What is your Min.order?
A: There's no minimum quan
