• Model NO.：A-S106B
• Size：1178*420*230mm
• Certificates：ISO,CE
• Purpose：for Gynecology Examination
• Feature：Gynecology Chair
• Transport Package：Wooden Export Package
• Specification：ISO, CE
• Trademark：WANROOEMED
• Origin：Jiangsu, China (Mainland)
• HS Code：94029000
• Production Capacity：200 Set,Sets Per Month

Basic Info.

Model NO. A-S106B Size 1178*420*230mm Certificates ISO,CE Purpose for Gynecology Examination Feature Gynecology Chair Transport Package Wooden Export Package Specification ISO, CE Trademark WANROOEMED Origin Jiangsu, China (Mainland) HS Code 94029000 Production Capacity 200 Set/Sets Per Month

Product Description

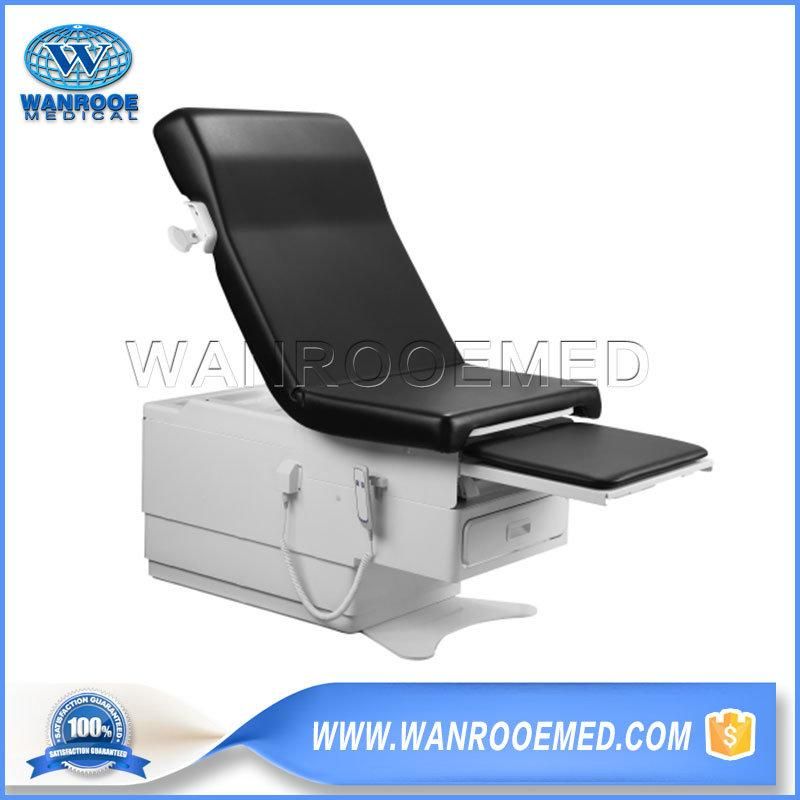

A-S106B Hospital Medical Electric Gyno Chair Foldable Gynecology Examination Table Obstetric Bed with Drawers

Introduction:
A-S106B exam table is equipped with electric height. Its back operation is used with gas spring. Includes customer's choice of standard upholstery color.

Features:
Electric mechanical obstetric chair applies to the support to the patient body, during the operation.
A-S106B is formed by tabletop(back plate,seat plate ,table body ,assistance plate, drawer and foot pedal),elevation column, base, linear actuator, drive parts, foot switch and accessories (waste basin ).
Powered back section which is controlled by a hand control on unit. The back section is adjustable from a full horizontal position to a chair position.
Powered base section (adjusts table top height) which is raised and lowered by a hand control.
Pelvic lift bar allowing seat section to be positioned in Lithotomy position.
Extendable footrest shelf which includes a positionable upholstered pad and a removable treatment pan.
Right and left stirrups which can be extended to different positions as well as laterally in four positions.
The back section is operated by gas spring.
Examination bed is equipped with large drawers.
Mattress made from mould, with no seam on the surface.
The OB GYN exam table is suitable for all kinds of inspection including gynecological examination, the shape is beautiful, the function is practical, the operation is simple.
Optional colour: gray, black, blue
Details:


Item	A-S106B
Length	≥1400±20mm
Width	720±20mm
Lowest height of tabletop	460±50mm
Distance of elevation	390±20mm
Seat plate up	7°±1°
Back plate up	70°±5°
Assistance plate	410±20mm
Foot pedal movement range	350±20mm
Foot pedal up	115°±5°
Foot pedal angle	45°±5°
