Bpm-As9 High Strength Medical Device Folded Ambulance Stretcher for Patients
Zhengzhou Best Pearl Medical Equipment Co., Ltd.- Color：Orange
- Folded：Folded
- Certification：ISO, CE
- Material：Aluminum
- Number of Belts：Three
- Type：Ambulance Stretcher
Base Info
- Model NO.：BPM-AS9
- High Position：195*55*85cm
- Low Position：195*55*25cm
- Max. Angle of The Backrest：65°
- Load-Bearing：180kg
- Packing Size(L*W*H)：201*62*28cm
- N.W：39kg
- G.W：45kg
- Standard Accessories 1：Waterproof PVC Mattress(5cm Thickness Foam)
- Standard Accessories 2：3PCS Belts for Chest, Hip and Knee
- Standard Accessories 3：Fixing Device
- Optional 1：IV Pole
- Optional 2：Pillow
- Optional 3：Oxygen Holder
- Using for：Ambulance, Hospitals, Emergency Centers.
- Castors：125mm Wide Rubber Castors, Two with Brakes.
- Transport Package：Carton
- Specification：BPM-AS9
- Trademark：BPM
- Origin：China
- Production Capacity：20000 PCS,Month
Description

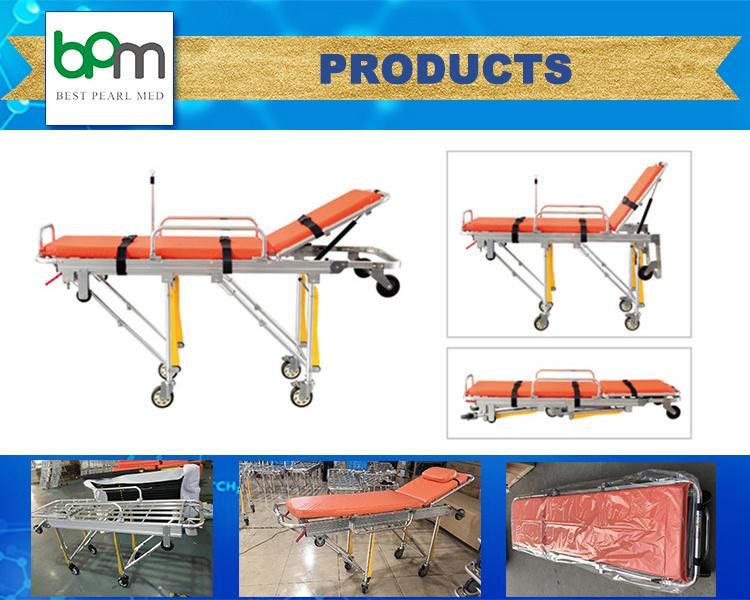

BPM-AS9 High strength Medical Device Folded Ambulance Stretcher for Patients
Specification and Configuration:
| Model | BPM-AS9 |
| High position | 195*55*85cm |
| Low position | 195*55*25cm |
| Max. Angle of the backrest | 65° |
| Load-bearing | 180kg |
| Packing Size(L*W*H) | 201*62*28cm |
| N.W | 39kg |
| G.W | 45kg |
| Standard Accessories: | Waterproof PVC mattress(5cm thickness foam) 3pcs belts for chest, hip and knee Fixing device |
| Optional: | IV pole Pillow Oxygen holder |
Features:
1. Foldable head section when using in elevator.
2. One set of boarding wheels is adjustable to fit different height of ambulance board.
3. The backrest can be adjusted from 0 - 65 degrees by gas spring.
4. Swing-down side rails to protect patient when transfer.
5. The mechanical legs are controlled by the handles in both sides, there is a safety lever to control front and hind legs to
fold while loading and prevent collapse while standing.
6. Only one person can slide the stretcher on to the ambulance.
7. The stretcher can be locked by the fixing device when it is in the ambulance.
8. It is made of high-strength aluminum alloy.
9. Φ125mm wide rubber castors, two with brakes.
10.Mainly used for ambulance, hospitals, emergency centers.
