• Model NO.：JYK-B503
• Using Ambient：Hospital
• Numbers of Function：Five-function
• Certification：CE, FDA, ISO13485
• Condition：New
• Control：Electric
• Fcuntion No.：Five
• Transport Package：Carton
• Specification：ISO13485, CE, ISO
• Trademark：JYK
• Origin：China
• HS Code：94029000
• Production Capacity：500unit,Month

Basic Info.

Model NO. JYK-B503 Using Ambient Hospital Numbers of Function Five-function Certification CE, FDA, ISO13485 Condition New Control Electric Fcuntion No. Five Transport Package Carton Specification ISO13485, CE, ISO Trademark JYK Origin China HS Code 94029000 Production Capacity 500unit/Month

Product Description

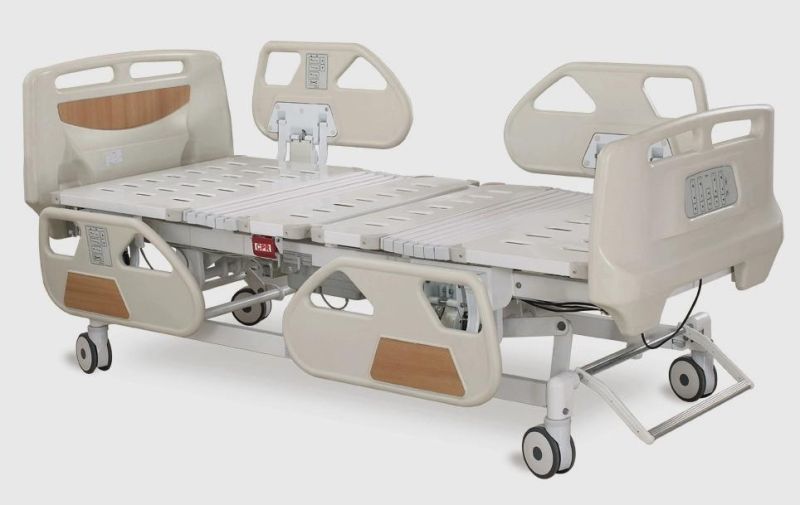

ICUElectric Hospital Bed with Five function  (JYK-B503)
Electric Hospital Bed Medical bed ICU bed



Model number: JYK-B503
Size: 2160*1050*460~720mm
Gross weight: 140KG
Net weight: 122KG
Packing size:
Material: Steel electrostatic spraying frame +ABS head & foot boards
Standard accessories: The function of reset and locking, four 5" luxurious castors with central-controlled brake system, 4 pieces of PP side rails (2 pieces with control panels), 1 pair of soft link, 1 set of detachable ABS Head & foot boards (Foot board with control panel), 4 aluminum alloy hooks, 1 set of LINAK motors, 1 set of CPR device, Footrest adjusting function.
Features:
Cold steel plate wholly molded surface
Integrated stamping frame and treated with electrostatic spraying, anti-aging and anti-rust
Beautiful design bed headboard and footboard made of ABS
4pcs PP automatic lifting side rails, 2pcs of soft link.
4pcs electro-motor, 1pc control box, 1pc handset
2 Urine hooks
Four wheels adopt central control system, which is stable and reliable
Has been assessed and conforms to the standards of ISO13485:2003, CE
Max loading: 250kg
Dimensions:
Product size: 2200*1050*460~720
Backrest adjust :0~75°(±5°)
Footrest adjust :0~40°(±5°)
Trendelenburg and reserve trendelenburg:0-12°(±2°)
Adjustable height: 450-720mm
Optional accessories:
I.V. Pole
Mattress
Over bed table
Shelf
Back-up battery
Bedside locker

Backrest adjust	0~75°(±5°)
Footrest adjust	0~40°(±5°)
Trendelenburg and reserve trendelenburg	0-12°(±2°)
Adjustable height	450-720mm
