• Model NO.：THR-II-100
• Transport Package：Packing in Standard Export Carton or Wooden Case
• Specification：Air temperature control range: 25° C-37° C
• Trademark：THR
• Origin：China(Mainland)
• Production Capacity：100 Pieces Per Month

Basic Info.

Model NO. THR-II-100 Transport Package Packing in Standard Export Carton or Wooden Case Specification Air temperature control range: 25° C-37° C Trademark THR Origin China(Mainland) Production Capacity 100 Pieces Per Month

Product Description

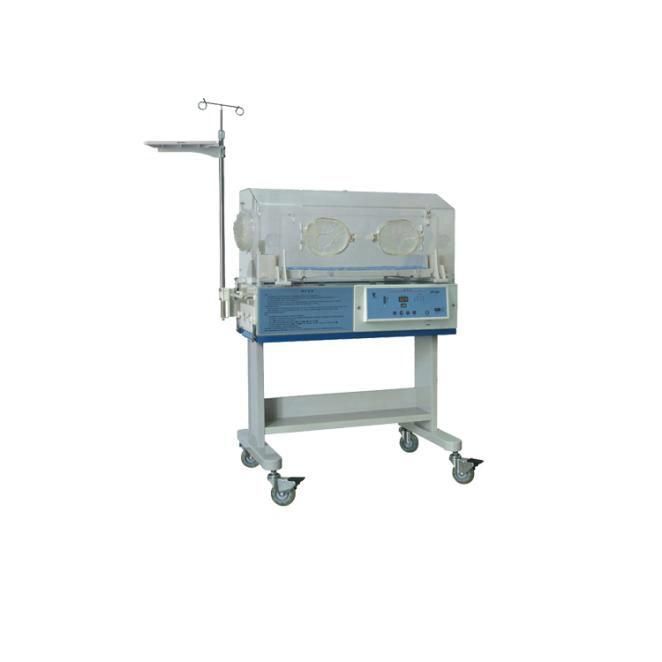

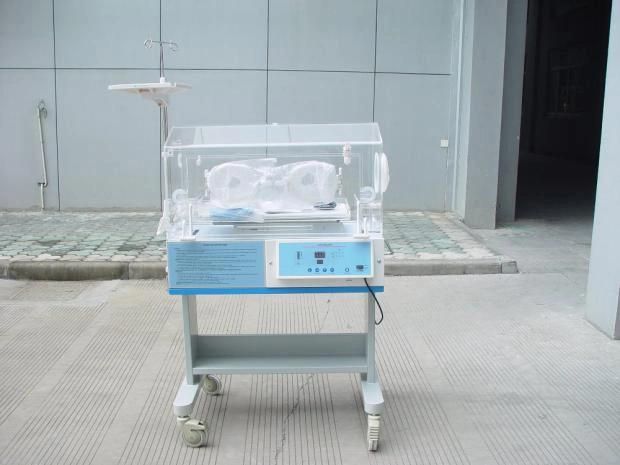

High Quality THR-II-100 Baby Infant Incubator
Descriptions:

Brief introduction:

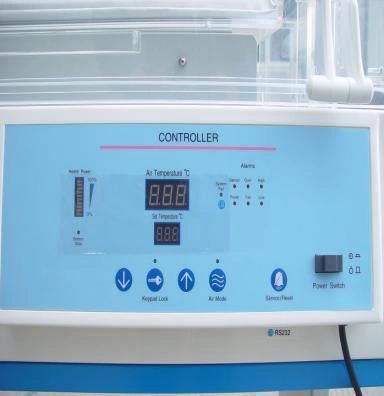

l Air mode control, set temperature and air temperature are displayed separately.
l Natural air flow humidity;
l Failure alarm indication
l RS-232 connector.
l THR-II-100B is configured with fixed Neonate Bilirubin Phototherapy Equipment Model: XHZ-90(with blue fluorescent lamps)
l To THR-II-100B, XHZ-90L with LED bulbs can be optional.

Standard Configuration:
THR-II-100: The hood, the base, the controller, IV pole, shelf,
THR-II-100B: Based on THR-II-100, added with the Neonate Bilirubin Phototherapy Equipment (fixed model)


Technical parameters:

Power supply	AC220V-230V/50HZ
Max power output	850VA
Mode of control	Air mode and baby mode controlled by micro-computer
Air temperature control range	25°C-37°C
Temperature variability	≤ 0.5°C
Temperature uniformity	≤ 0.7°C (mattress is on the horizontal position)
Noise inside hood	≤55dB(A) (environment noise ≤ 45dB(A))
Failure alarm	Over temperature alarm, deviation alarm, sensor failure alarm, fan motor alarm, power failure alarm, system alarm and so on.

Environmental Temperature:
Operating range: 20°C -30°C
(set temperature should be higher 3°C than the environment temperature)
Ambient air movement rate: ≤ 0.3m/s



Packing:
each unit packed in one carton
--Size: 1085*640*1080 mm
--Gross Weight: 72 kg(for THR-II-100)
83 kg(for THR-II-100B)
