Hospital Electric Imaging X-ray C-Arm Medical Surgical Operation Carbon Fibre Theatre Table
Jiangsu Rooe Medical Technology Co., Ltd.- Material：Stainless Steel
- Folded：Unfolded
- Using Ambient：Hospital
- Certification：CE, FDA, ISO13485
- Qualit Material：304 Stainless Steel, Aluminum Alloy
- Double Control System：Optional
Base Info
- Model NO.：AOT900
- Battery Backup：Availble
- 8cm Memory Foam Mattress：Yes
- Kidney Bridge Elevation：Kidney Bridge Elevation
- Power Source：Electric
- Transport Package：Export Carton Package
- Specification：CE, ISO
- Trademark：WANROOEMED
- Origin：China
- HS Code：94029000
- Production Capacity：200 Sets,Month
Description
the main purpose and
structure performance:
A) main use: photography for use in Imaging, surgical clinicalinstitutions.

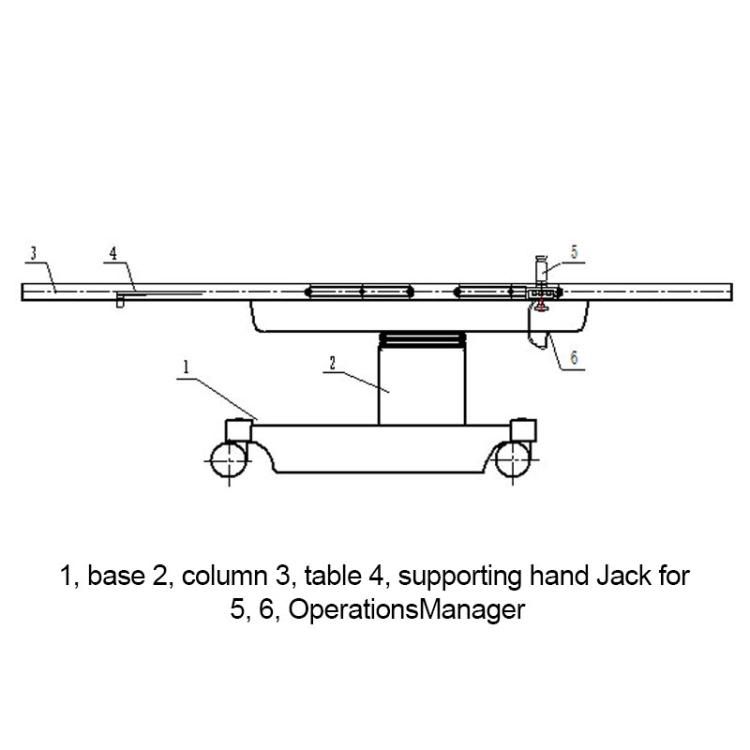

B) structures: photography by mechanical and electrical control systems.
The product through the manual push-button control,
postural requirementsneeded to meet the clinical Agency operations.
The photography is themost important feature of the bed surface after panning around,
movinglarger amounts of countertop with carbon-fiber production,
particularlysuitable combined with c-arm imaging and imaging interventionalprocedures.
Floor size:
Full-length ... ... ... ... 2500±350mm
width...... 550±100mm
Table height:
Mesa from the lowest ... ... ... ... ... ... 650±150mm
Table top off the ground ... ... ... ... ... ≥850±150mm
Trip ... ... ... ... ≥200mm
Adjustment range:
Move back and forth ... ... ... ≥600mm
Move around ... ... ... ≥100mm
Safe working load ... ... ... ... 135kg
Lifting speed ... ... ... 3~16mm/s
Security device class I type b type liquid entering class: IPX4
Power supply: AC (AC) 220V,50Hz
Emergency power supply: direct current (DC) 24V battery capacity ≥ 2.4AH
and sterilization:
1, wash with photography is strictly prohibited;
Photography 2, clean with a soft cloth, sponge, damp cloth or detergent.Do not use hard brushes, wire brush, and do not use scouring powder,paint, ether, bananas, water, acid and alkali, the use of a singlesurface.
3, mattress with alcohol, ether, ultraviolet disinfection (avoidpasteurized)
BA, environmental conditions:
Transportation and storage environmental conditions:
A) ambient temperature:-40 ¡æ ~+55 ¡æ
B) relative humidity: ≤ 80%
C) atmospheric pressure: 50kPa~106.0kPa
Operating environmental conditions:
A) ambient temperature: 5 ºC ~ 40ºC
B) relative humidity: ≤ 70%
C) atmospheric pressure: 70.0kPa~106.0kPa
D) supply voltage: AC 220V ± 22V, 50Hz ± 1Hz.
