• Model NO.：DT-12E Electric Hydraulic table
• Table Height：690mm~1100mm
• Length and Width：1960mmx500mm
• Reversed Trendelenburg/Trendelenburg：30o
• Lateral Tilt (Left/Right)：20o
• Head Rest(up/Down)：40o,90o
• Back Rest (up/Down)：90o,40o
• Footboard(up/Down&Horizontal Position)：15 O,90o,90o
• Longitudinal Sliding：350mm
• Kidney Bridge Range：120mm
• Power：110~220V,50~60Hz;1.0kw
• Transport Package：Standard Export Packing Box
• Specification：CE
• Trademark：Mermaid
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. DT-12E Electric Hydraulic table Table Height 690mm~1100mm Length and Width 1960mmx500mm Reversed Trendelenburg/Trendelenburg 30o Lateral Tilt (Left/Right) 20o Head Rest(up/Down) 40o/90o Back Rest (up/Down) 90o/40o Footboard(up/Down&Horizontal Position) 15 O/90o/90o Longitudinal Sliding 350mm Kidney Bridge Range 120mm Power 110~220V/50~60Hz;1.0kw Transport Package Standard Export Packing Box Specification CE Trademark Mermaid Origin China Production Capacity 5000PCS/Year

Product Description

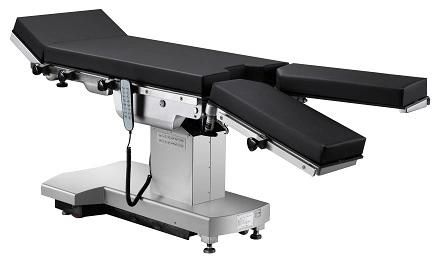

Operation table DT-12E Medical equipment electric hydraulic


Our medical equipment electric hydraulic operating table DT-12E with reference to the advantages of congener products from home and abroad, can meet the demands of different positions on operation.
24v battery that meets the operating demands for one week, better ensure the table work under safe voltage.
Electromotion facilitates the various adjustments of positions;Intellectualized reposition enables the table a quick return to horizontal position.

Automatically lockable remote control in case of wrong operation.
Large-scale elevation makes it easier for c-arm fluoroscopy examination.
With built-in kidney bridge suit for kidney operation.

Optional traction for orthopedics, head rest for aural surgery, extend functions of the table the cover all adopted premium 304 stainless steel, the main body used cast aluminum, anti-rust and corrosionthe tabletop adopted phenol aldehyde photograph board which is suitable for x-ray.

Key parts, such as electrical pump and electromagnetic valve, adopted imported products from taiwan.

Specification

Table height:690mm~1100mm
Length and width:1960mmx500mm
Reversed trendelenburg/trendelenburg:30º
Lateral tilt (left/right):20º
Head rest(up/down):40º/90º
Back rest (up/down):90º/40º
Footboard(up/down&horizontal position):15 º/90º/90º
Longitudinal sliding:350mm
Kidney bridge range:120mm
Power:110~220v/50~60hz;1.0kw
Load capacity:250kg
Battery specification:12volt 9ah

Standard accessories

1.Pads:1 set
2.Leg support:1 pair
3.Arm support:1pair
4.Shoulder support:1 pair
5.Body support:1 pair
6.Anesthetic screen:1 pc
7.Footboard:1pair

Operating Table DE-12E Medical Equipment, Electric Hydraulic
