• Model NO.：BAE501
• Condition：New
• Medical Bed Structure：Two Column Structure
• Weight Scale：Optional
• CPR：Yes
• Motor Brand for Medical Bed：Linak
• Battery Backup：Yes
• Quality：ISO, CE
• Guarantee：2 Years
• Transport Package：Wooden Export Package
• Specification：2200*1050*550mm
• Trademark：WANROOEMED
• Origin：China
• HS Code：94029000
• Production Capacity：500sets,Month

Basic Info.

Model NO. BAE501 Condition New Medical Bed Structure Two Column Structure Weight Scale Optional CPR Yes Motor Brand for Medical Bed Linak Battery Backup Yes Quality ISO, CE Guarantee 2 Years Transport Package Wooden Export Package Specification 2200*1050*550mm Trademark WANROOEMED Origin China HS Code 94029000 Production Capacity 500sets/Month

Product Description

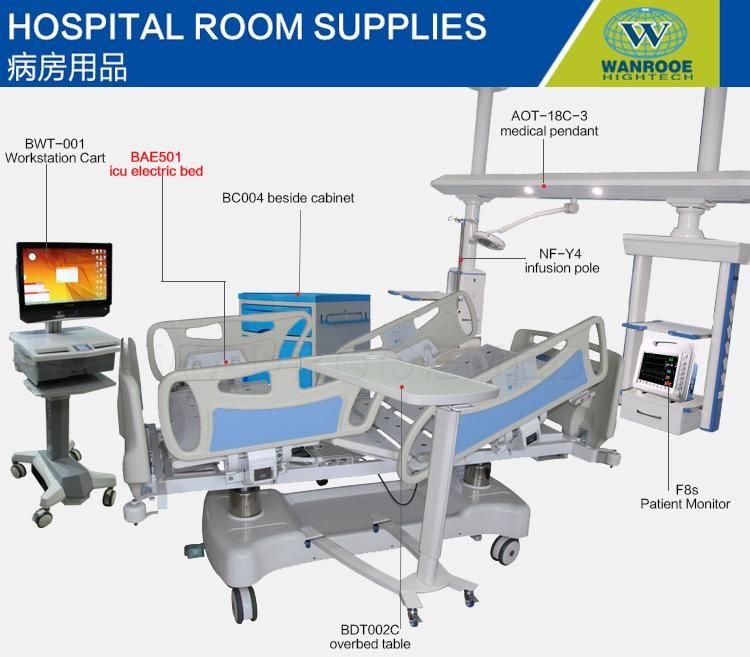

 BAE501 Surgical Equipment Adjustable Electric Hospital Weight Scale Bed
 The Pallmannmed BAE501 Electric Hospital Bed is an adjustable electric hospital bed with weight scale that is with good quality and safety at an affordable price. It is with column structure, vertical up/down, no horizontal displacement when lifting up/down.
Patient Safety- Your patients' safety and comfort are your primary concern. The WANROOEMED BAE501 Bed built-in several unique features to help you protect and care for your patients, including:
1.  Length extension from 2230-2430mm
2.  One-button control reach different position.
3.  Caregiver Ergonomics With features that help provide safer patient mobility and ease of use, the WANROOEMED BAE501E Bed was designed with caregiver safety as a priority.
4.  With battery backup-when power off, the bed can work as normal under battery.
5.  Lockout buttons on footend-avoid mistaken operations.
6.  Alarm when patient leaves the bed- false alarms when patient weight fewer.(optional)
7. Central lock castor-step the brake, 4 castor brakes one time.
hospital bed prices Length extension: 20 cm, suitable for higher persons,easy to operate:
different positions of BAE501E electric hospital bed with extension function, CPR, battery


Technical Specifications:
Dimensions
Bed length with standard sleep deck .......................................................... 2230mm
Width (with resident assist rails up)............................................................. 1050mm
Width (with resident assist rails down)......................................................... 990mm
Height of sleep deck (in low position)........................................................... 520mm
Height of sleep deck (in high position).......................................................... 750mm
Sleep deck
Width...............................................................................................................900mm
Normal length.................................................................................................1960mm
Max head elevation...................................................................................................75°
Mas knee elevation .........................................................................................45°
Max Trend and reverse Trend..........................................................................12°
Caster size........................................................................................................125mm
Max safe load....................................................................................................250kg
 Optional scale system
Accuracy ............................................................................................0.1kg( 0.05kg - 0.02kg optional)

Easy to use
1. Press the button to get what position you want.
2. One-button Dining Chair feature
A single touch of a button moves patient gently in and out of chair position.
3. Head Angle indication
Monitor patient head angle in any siderail position at point of care
4. CPR release:
A:CPR buttons on the siderails
B:CPR manual handle under the head section
5. Battery backup: No need to find an outlet when
repositioning the bed during patient transfer.
6. Lockout buttons on the footboard
The red buttons in the footboard for lock the buttons on the guiderails.
7. Safer     weighing and exit monitoring
Easily weigh your patient in place with superior accuracy-no need to transport to a scale.
Highly accurate, sensitive system. Based on patient weight for fewer false alarms; deploys if the system is compromised.
