• Model NO.：BAE502
• Length：Adjustable
• Weight Scale：Yes
• CPR and Battery：Yes
• Motor Brand：Dewart
• Max Head Elevation：75°
• Max Trend and Reverse Trend：12°
• Caster Size：125mm
• Max Safe Load：250kg
• Transport Package：Wooden Export Package
• Specification：2230mm*990mm-1050mm*450mm-700mm
• Trademark：WANROOEMED
• Origin：China
• HS Code：94029000
• Production Capacity：500sets,Month

Basic Info.

Model NO. BAE502 Length Adjustable Weight Scale Yes CPR and Battery Yes Motor Brand Dewart Max Head Elevation 75° Max Trend and Reverse Trend 12° Caster Size 125mm Max Safe Load 250kg Transport Package Wooden Export Package Specification 2230mm*990mm-1050mm*450mm-700mm Trademark WANROOEMED Origin China HS Code 94029000 Production Capacity 500sets/Month

Product Description

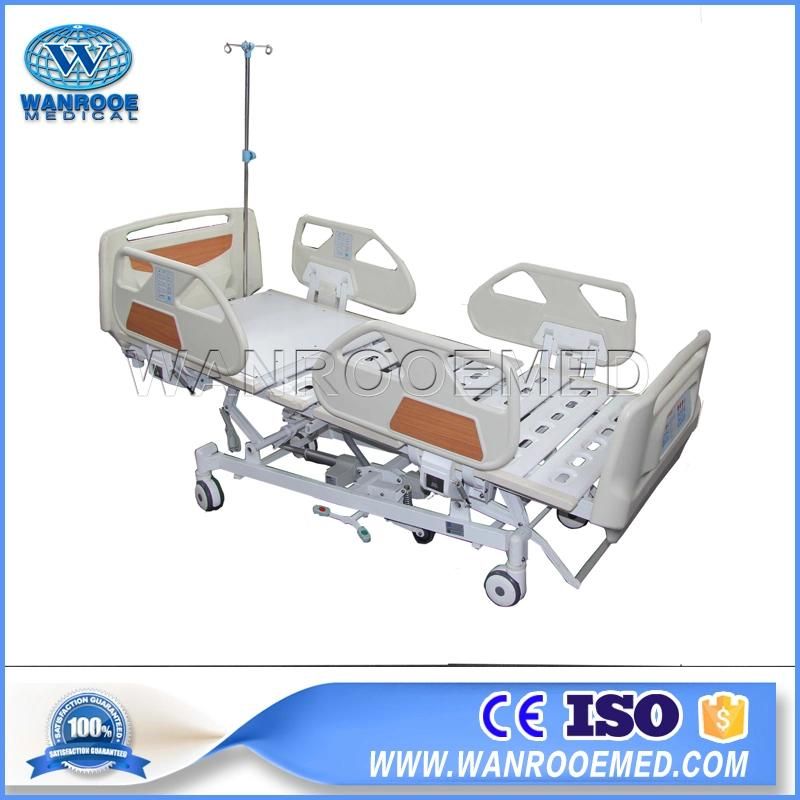

BAE502 Multifunction Aadjustable Hospital Electric ICU Bed

 WANROOEMED BAE502 series Electric Hospital Bed is an adjustable electric hospital bed that is with good quality and safety at an affordable price. The BAE502 Electric Bed meets stringent quality and safety standards, and it is a good choice for patients and caregivers.

Standard Features:

• 4 LINAK motors
• Tuckaway siderails, zero-transfer gap
• Battery backup
• Manual CPR handle and CPR buttons on the siderail control panel.
• Caregiver patient siderails controls;Caregiver foot end controls
• Lockout control on footend.
• 12° trendelenburg and reverse trendelenburg
• Head section and knee section can move at the same time for cardiac chair position
• 4-position IV pole mounts
• Blow-molded headboard and footboard, single-step removal.
• 4pcs of mobile centrally controlled castors(diameter: 125mm)
• Standard length sleep deck-1960mm
• With drainage hook and IV pole
• Compatibility with most:
  -standard mattress
  -overbed tables in the low position
  -beside cabinet
• Steer function,PP carriage base, bumpers,X-ray available sleep deck, long siderail optional

Technical Specifications:
Dimensions
Bed length with standard sleep deck ........................................................2230mm
Width (with resident assist rails up)...........................................................1050mm
Width (with resident assist rails down).......................................................990mm
Height of sleep deck (in low position).........................................................450mm
Height of sleep deck (in high position)........................................................700mm

Sleep deck
width............................................................................................................900mm
normal length...............................................................................................1960mm
Max head elevation......................................................................................75°
Mas knee elevation ......................................................................................40°
Max Trend and reverse Trend.......................................................................12°
Caster size......................................................................................................125mm
Max safe load.................................................................................................250kg

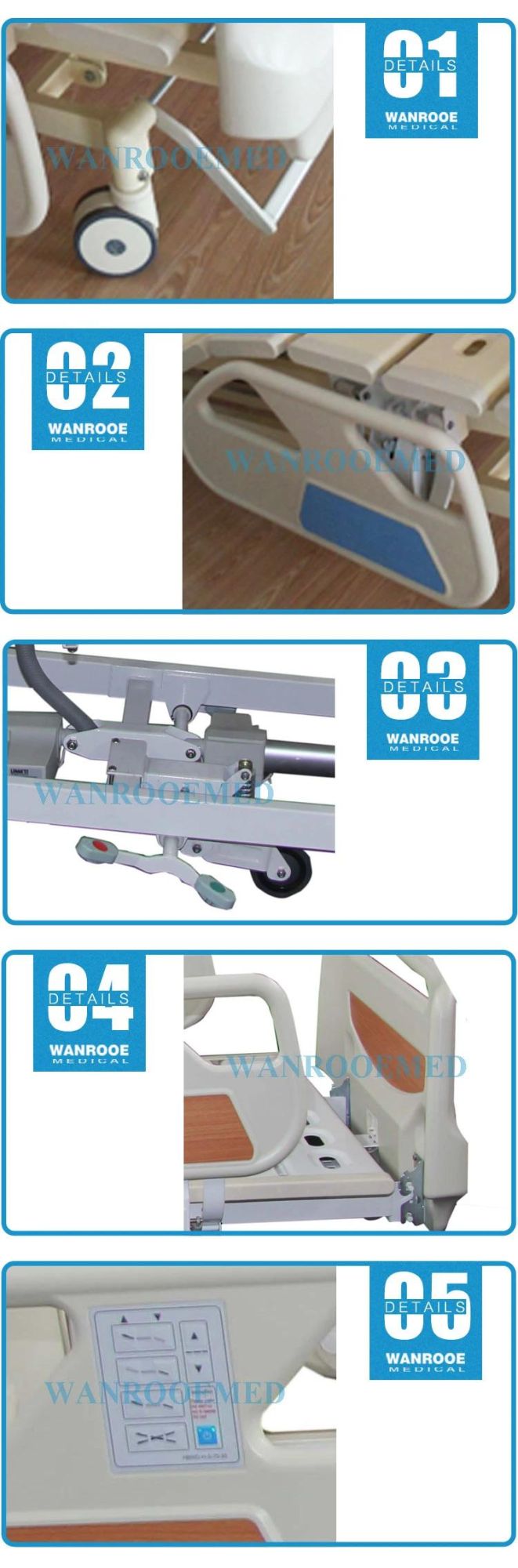

Details:

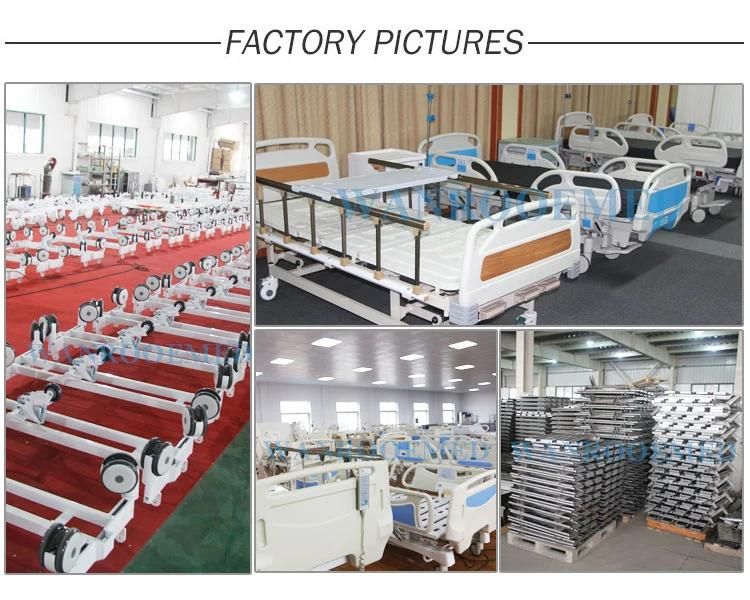

Company Information:
