• Model NO.：DA-7(A1)
• Condition：New
• Height Adjusting Range：495-735mm
• Knee-Rest Adjustment：0-25&Deg
• Back-Rest Adjustment：0-70&Deg
• Trendelenburg & Reverse Tren.：0-12&Deg
• Bed Extension：200mm±10mm
• Safe Working Load：250kg
• Special Feature 1：Battery for Emergency
• Special Feature 2：Angle Indicator
• Special Feature 3：Nurse Controller and Hand Controller and Siderail
• Special Feature 4：4PCS of Full Length PP Material Side Rail
• Special Feature 5：Detachable PP Material Head Foot Board
• Transport Package：Wooden Carton
• Specification：2070*988*574mm total: 1.17CBM, G. W.: 196 KGS
• Trademark：SD
• Origin：China
• HS Code：9402900000
• Production Capacity：3000units,Month

Outer dimensions (Side rails up): L2220*W1060mm(±10mm)
Mattress platform: L1960*W900mm(±10mm)
Bed height:H495-735mm(±10mm)

Bed extension:200mm(±10mm)
Maximum backrest: ≥70°
Maximum knee rest:≥25°
TR/ATR:≥12°
Height of side rails(above mattress platform): 380mm(±10mm)
Safe working load: 250kgs

Power supply: 220V/110V, 50HZ / 60HZ Maximum input: 1.6A,450VA Protection against water and dust: IPX4 Equipment classification: Class II Level of protection against injury from electrical current: Applied part type BF Electric motor operation mode (load factor): 10%, max2min/18min

This bed is produced according to European norms and quality system: EN ISO 9001:2008,EN ISO 13485:2003 EN ISO14001:2005 Products are manufactured according to European norms for medical technology and hospital beds EN 60601-1,EN60601-1-2 ,EN ISO 14971, 93/42/EEC,90/384/EEC EN60601-2-52:2009

1.Split Side Rails: The 4pcs PP side rails provide the patient with protection against falls and the 2 pcs additional side rails near foot board offer more safety service and also provide the support during patient's stand.

2.Integrated Scales system: The in-bed scales control panel located under the foot end is protected against impacts.

3.Removable Mattress Platform: The Mattress platform is plastic boards which can be easy removable and easy for sterilization. The mattress platform can do X-ray for back board and offer the patient's more comfortable.

4.Central Nurse Control System: The nurse or supervisor can adjust all the positions and find the comfortable and proper positions for the patients.

5.Columns Motor System: Electric lifting units in two columns enable the mattress platform height adjustment and TR&ATR positions, which can also ensure the bed's stability.

6.Controls In The Side Rails: Controls in the side rails increase the patient's independence so that the patients can operate it according to the self-requirement.

7.Bed Extension: The integrated bed extension adjusts the mattress platform length to the individual patient's height.

8.Linen Shelf: The linen shelf at the bottom of foot end also stores the supervisor panel.

9.H/F Boards Locks: The bed board locks prevent accidental removal of the bed boards when steering or handling the bed.

10.X-Ray Cassette Holder: The holder's special sliding construction allows the cassette to be comfortably inserted beneath the mattress platform from the side of the bed.

11.Manual/Electric CPR: The electric CPR is easy and convenience to operate that is one key control. And the manual CPR is equipped with damping device, which can let the back rest fall down slowly to ensure the safety of the patient when the power is off, the whole process can be single hand operation.

12.Standing armrest:(option)

13.Night light:(option)

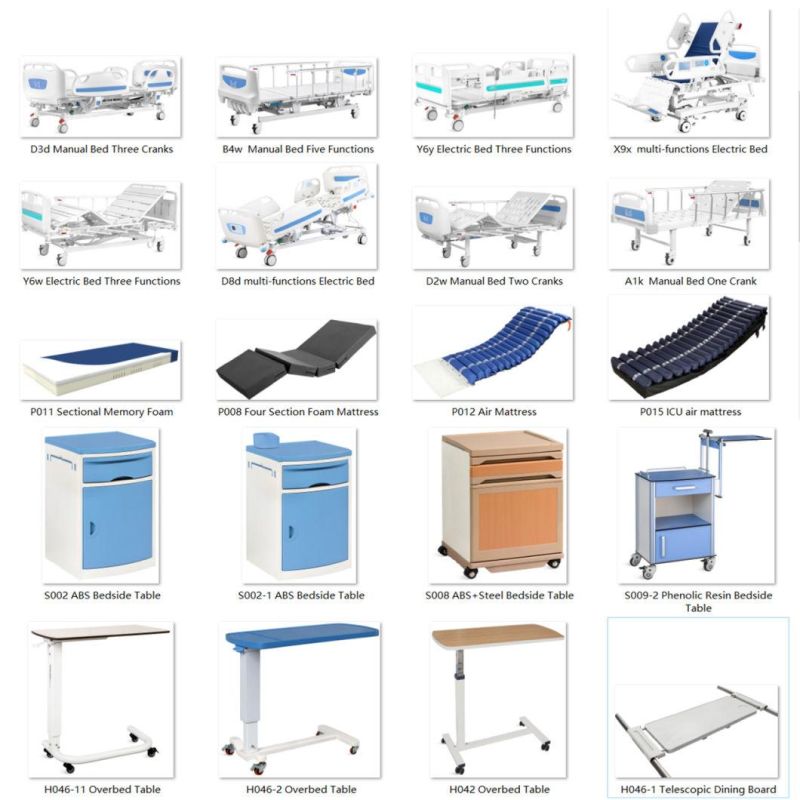

Other related hospital furniture:

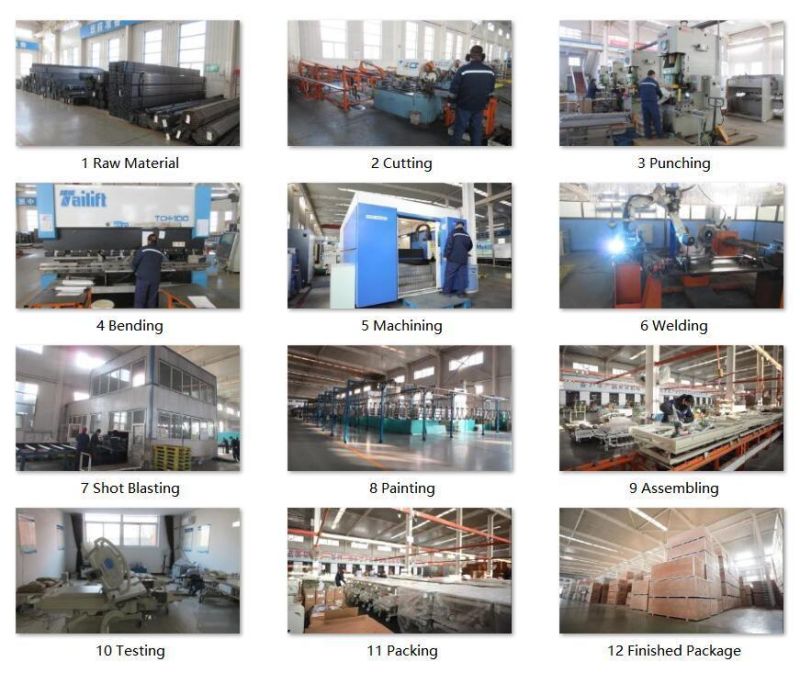

Hospital beds & furniture Production Flow as follow:

Production equipment

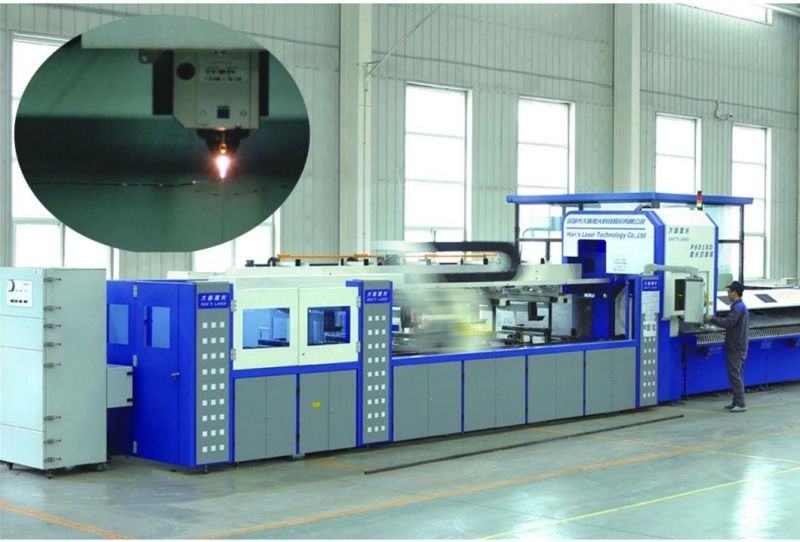

Pipe and metal sheet Laser cutting

The steel pipe and sheet metal parts used in the our product cut by laser cutting machine to ensure the accuracy of the workpiece.

Manipulator welding

The welding adopts Robot hand group welding technology, with beautiful welding seam and higher welding precision than traditional manual welding.

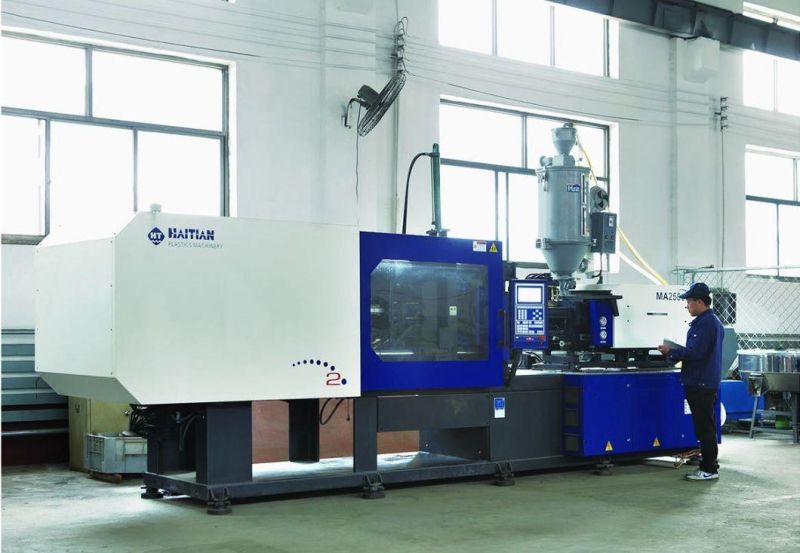

Injection molding machine

Head, foot board, said rail are made of high quality PP raw material(Non reclaimed materials) by our own injection molding machine, mount steel pipe inside to reinforce structural strength.

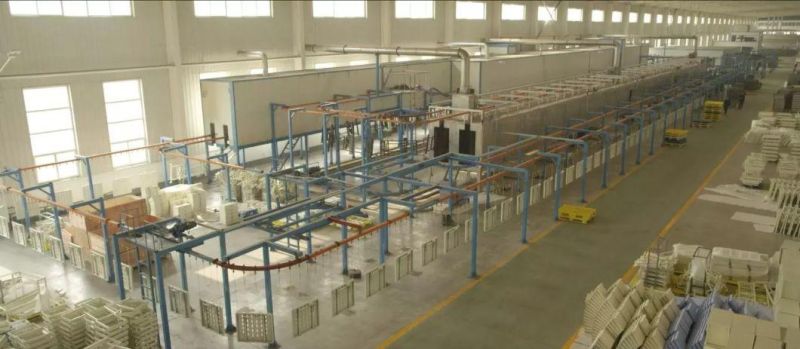

Surface treatment of carbon steel

The self-owned 420 meters length automatic electrostatic epoxy powder spraying assembly line is used for one-time completion. The rust removed by high-speed shot blasting machine before spraying. The powder material has the properties of aging resistance, high toughness, solvent resistance, low temperature and antibacterial, provide antibacterial test certificate.
