• Model NO.：EA-8FPN
• Open Size：80~110*50*110~160cm
• Folded Size：115*50*27cm
• Loading Capacity：160kg
• Package Size：116*55*30cm
• Application：Emergency
• Group：Adult
• G.W.：45kg
• Transport Package：Export Carton Package
• Specification：93*53*138cm
• Trademark：WANROOEMED
• Origin：China
• HS Code：94054090
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. EA-8FPN Open Size 80~110*50*110~160cm Folded Size 115*50*27cm Loading Capacity 160kg Package Size 116*55*30cm Application Emergency Group Adult G.W. 45kg Transport Package Export Carton Package Specification 93*53*138cm Trademark WANROOEMED Origin China HS Code 94054090 Production Capacity 500 Sets/Month

Product Description

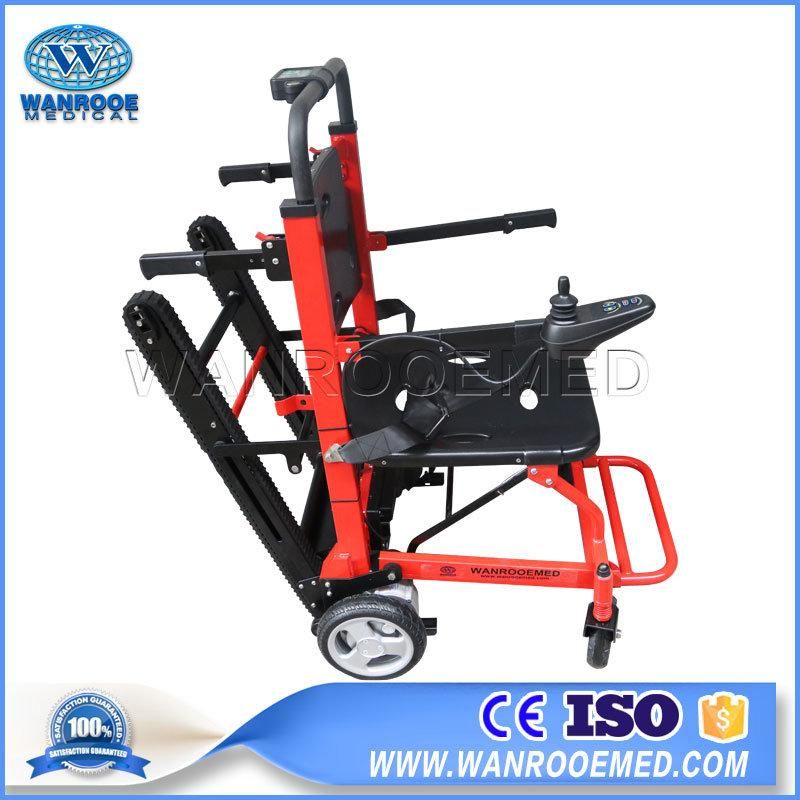

EA-8FPN Aluminium Alloy Emergency Evacuation Stair Chair Climbing Wheelchair Stretcher*200W or 300W brushless motor, super power, three speeds adjustable
*50cm width backrest, suitable for all people
*ABS seat, more comfortable for old people
*Vest belts, more safe

Specification:

MODEL	EA-8FPN
UN-FOLD SIZE(L*W*H)	80~110*50*110~160cm
FOLDED SIZE(L*W*H)	115*50*27cm
N.W	32kg
LOAD-BEARING	160kg
Using Time of Full Charge:	2 hours (up and down five layer building stairs 15 times)
Repeated Charging Times:	500 times
Battery Life	3~5 YEARS
Brushless Motor:	24V,200W or 36V,300W High Quality, no noise
Track:	High wear-resistant materials, life time 3~5 years
Speed:	About 45-55 steps per min
Suitable Stair	No less than 80*80CM
PACKING	1PC/CTN
WOOD BOX SIZE	116*55*30CM
G.W	45KG

24V, 200W or 36V, 300W brushless motor,three speeds adjustable,with cover, power system with soft start protection , make battery using time longer , motor and battery service life also longer

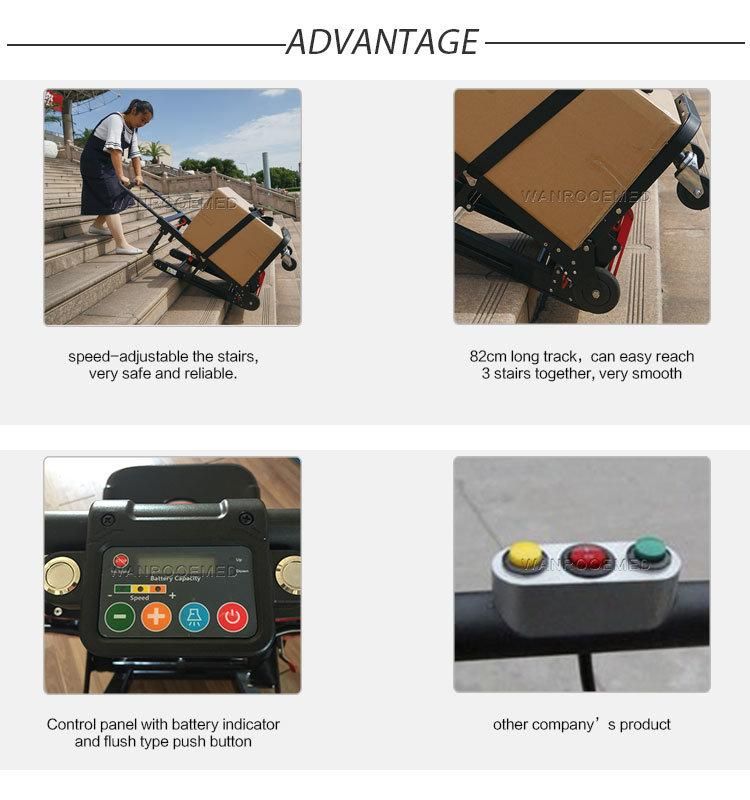

With LED light, LCD power display
Easy operating, it can climb up and down stairs smoothly and steadily by track.
It won't glide or fall down when stop on the stairs, very safe and reliable.
Circuit is inside the pipe, waterproof, long life time, motor is no noise during operating.
The installation position of the battery is in accordance with international standards, not close to the body, make users feel more comfortable. Detachable battery
With 4 wear-resistant rubber wheels.
The chair is equipped with vest type, metal buckle straps, to ensure the safety during transport.
Made of aluminum alloy, foldable, compact and lightweight.
The electric stair climbing chair is widely used in the home for the old people, school security, hospitals, hotels etc. for emergency evacuation.
Universal remote control, speed adjustable, with honking
Whelchairhas2pcs 150Wbrushlessmotor with brakes, speed adjustable, shock absorption front wheels, does not slide when stop on the slope floor
when no power, switch to manual gear, can also use as a manual wheelchair
Accessories: vest belt, lithium battery, wrench set, spongy cushion
Optional: Dust cover, Wall bracket

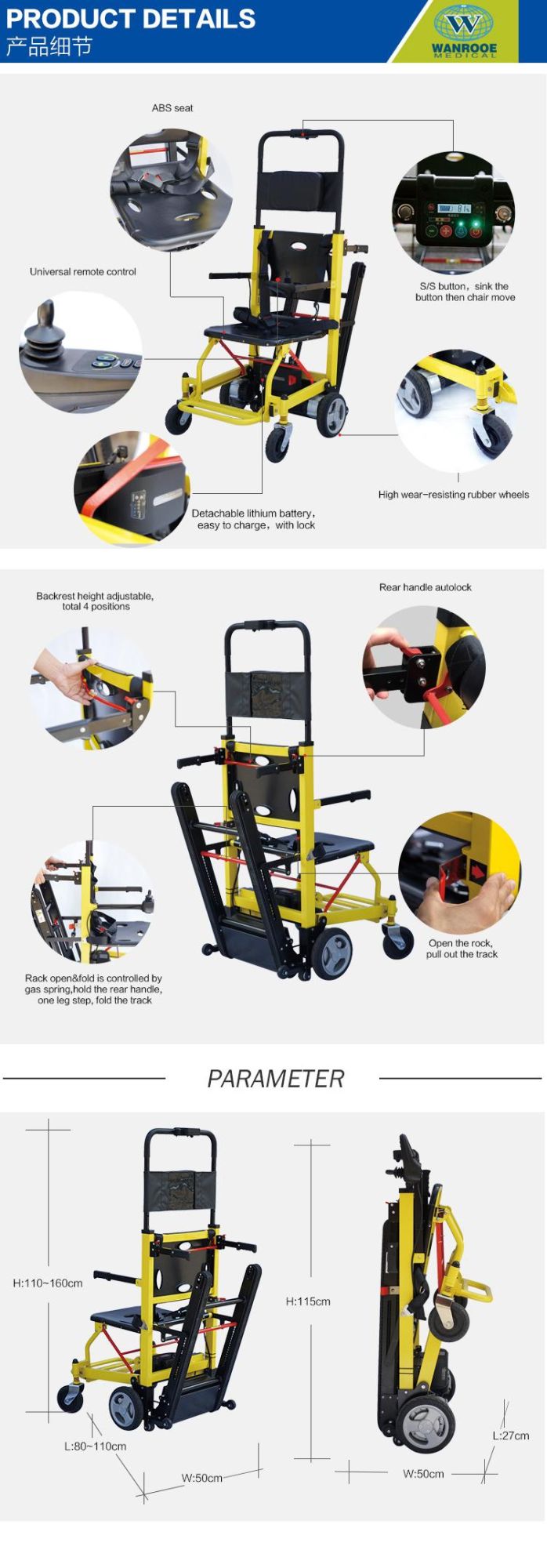

Detail information:
