• Model NO.：JYK-B507
• Using Ambient：Hospital
• Numbers of Function：Five-function
• Certification：CE, FDA, ISO13485
• Condition：New
• Control：Electric
• Fcuntion No.：Five
• Transport Package：Carton
• Specification：ISO13485, CE, ISO
• Trademark：JYK
• Origin：China
• HS Code：94029000
• Production Capacity：500unit,Month

Basic Info.

Model NO. JYK-B507 Using Ambient Hospital Numbers of Function Five-function Certification CE, FDA, ISO13485 Condition New Control Electric Fcuntion No. Five Transport Package Carton Specification ISO13485, CE, ISO Trademark JYK Origin China HS Code 94029000 Production Capacity 500unit/Month

Product Description

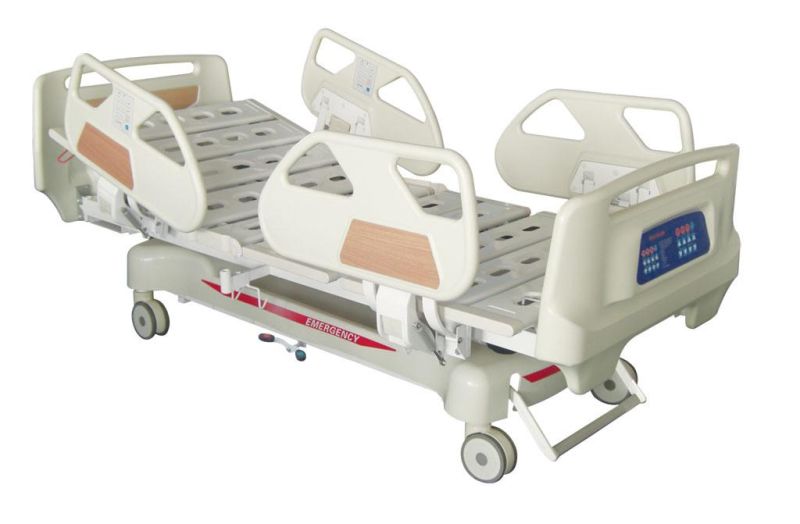

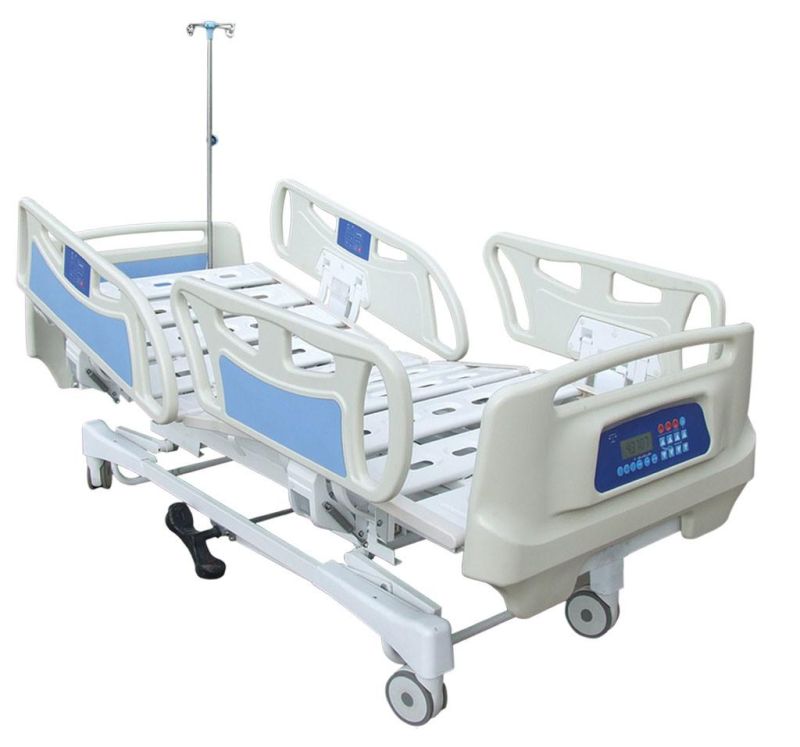

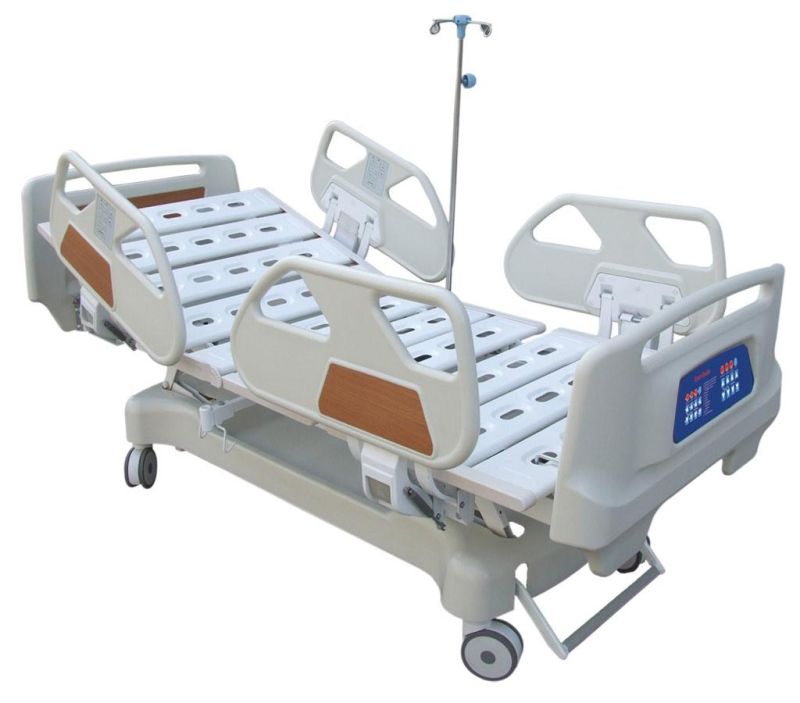

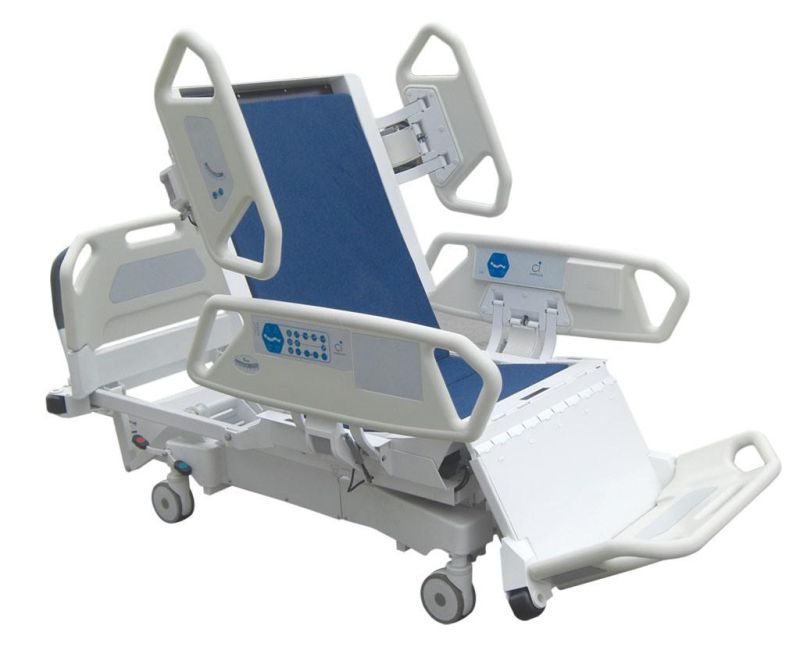

High-level Five-function electric vertical travelling bed with weighting (JYK-B507)
Electric Hospital Bed Medical bed ICU bed
Model number:JYK-B507
Full Length)            223CM
(Full Width)
 (Including The Side Rails)   105CM
   (Without The Side Rails)    99CM
(Bed Base Height Range)
    (Maximum Height)         76CM
    (Minimum Height)         52CM
(Patient Touching Surface)   90*196CM
(Bed Base Angle Position Adjustable)
   (Back Section Panel)        0~75°
   (Leg Section Panel)        0~45°
    (Trendelenburg)      0~10°
    (Anti-Trendelenburg)    0~10°
(Maximum Safe Load)      250KG
(Accuracy of Measurement)    0.1KG
    (Optional)           0.05KG,0.02KG
(Diameter of Centrally Silent Castor)  12.5CM
(Nurse Controller)
(Rail Controller)
(Linak Electrical Motor)
(I.V.Pole(Optional))
(Drainage Hook)
(Angle Scale.)
(CPR Handle.)
(Rise-and-Fall Guide Wheel)
(Weight Reading System(Optional))
(Mattress(Optional))
(Detachable PP Head and Foot Board)
 (PP Side Rail)
Top Coat:Electrostatic Powder coating)
  (Bed frame:Cold-Rolled Steel Tube)
    (Bed base:Cold-Rolled Steel Sheet)

backrest adjust: 75°(±5°)
Footrest adjust	0~40°(±5°)
Trendelenburg and reserve trendelenburg	0-12°(±2°)
Adjustable height	500-1000mm
