• Model NO.：ALDR101A
• Factory Location：1.5 Hours From Shanghai
• Certificates：ISO, Ce
• OEM：Available
• Control System：Electro-Hydraulic, PLC Control
• Width：920mm, Ultra Wide, Comfortable
• Size：2000*920*590-1000mm
• Footrest：Open,Close Electric
• Quick Release Button：to Low Min Height in Emergency
• Operation：Foot Controller and Hand Controller
• CD Player：Optional
• Transport Package：Export Carton Package
• Specification：CE, ISO
• Trademark：WANROOEMED
• Origin：China
• HS Code：94029000
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. ALDR101A Factory Location 1.5 Hours From Shanghai Certificates ISO, Ce OEM Available Control System Electro-Hydraulic, PLC Control Width 920mm, Ultra Wide, Comfortable Size 2000*920*590-1000mm Footrest Open/Close Electric Quick Release Button to Low Min Height in Emergency Operation Foot Controller and Hand Controller CD Player Optional Transport Package Export Carton Package Specification CE, ISO Trademark WANROOEMED Origin China HS Code 94029000 Production Capacity 500 Sets/Month

Product Description

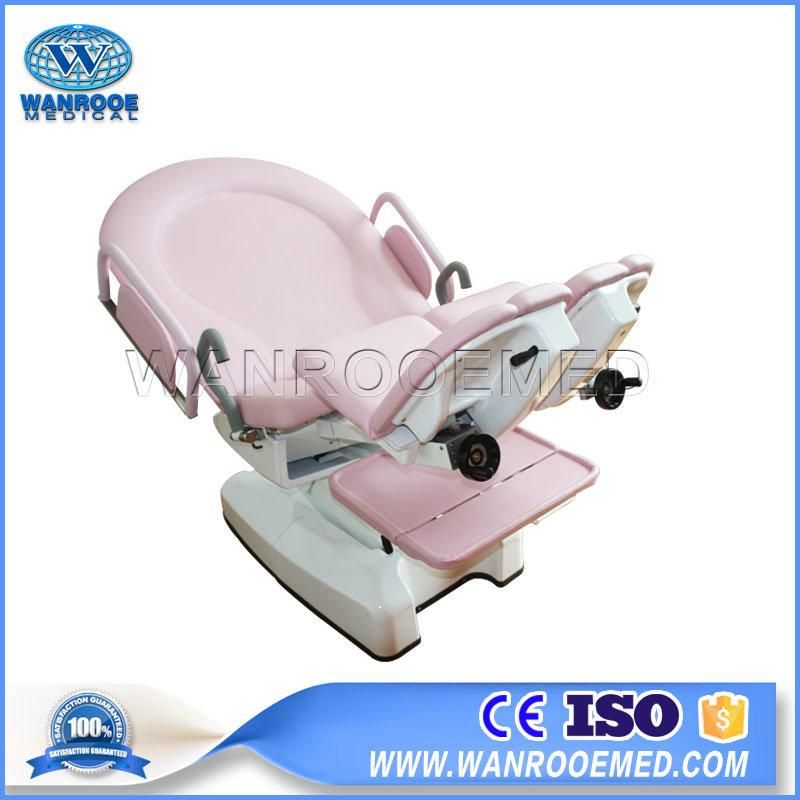

ALDR101A Luxury Electro-Hydraulic Labor And Delivery Bed

ALDR101A electro-hydraulic labor and delivery bed is for VIP room. It can automatically change from a hospital bed to a delivery bed.

Features:
Japanese electro-hydraulic system, Mitsubishi PLC control, stable, safety, long use time.
The footrest can be separately open or closed according to the status of lying-in woman or to fit the labor proceeding. Intelligencen-only the footrest in folding position, the footrest can be open or closed, avoid suddenness.
Leg part can slide to accommdate patient either tall or short.
The adjustment of the back section and footrest will realize varies lying positions, e. G. Supine position, sitting position, lateral position, semireclining position, kneeling-squatting position, facedown position.
Quick release button to low the bed to minimum height position.
Equipped with hand controller and foot controller, easy to operate the birthing bed.
Siderails easy to put down and up according to requirement.
Grab handle can drop down to save space. Its special shape allows patient to hold more stable and strong.
Equipped with sliding platform, and the height is adjustable according to need manualy.
An electronic balance and a CD player are optional.

		Operation Mode
Bed dimension	Length 2000mm Width 920mm
Assist platform dimension	Length 500mm   Width 540mm
Assist platform lifting distance	110mm	Manual
Bed height	min. ≤590mm,max. ≥1000mm	Electrical
Back section turning	down≥5°,up≥65°	Electrical
Seat section turning	≥20°	Electrical
Leg section swing out	≥30°	Electrical
Leg section turn up	≥20°	Electrical
Leg section sliding	60mm	Manual
Footrest folding	≥35°	Manual
Side rail turn over	180°	Manual

details pictures:



Company Information:
