• Model NO.：A32
• Condition：New
• Warranty：2 Yeras
• OEM ODM：Yes
• Bed Frame：Steel Powder Coated
• G.W.：45kgs
• Metal Type：Stainless Steel
• Transport Package：Wooden Case
• Specification：2040*900*500mm
• Trademark：Grand Medical
• Origin：China
• Production Capacity：10, 000 PCS Per Month

Basic Info.

Model NO. A32 Condition New Warranty 2 Yeras OEM ODM Yes Bed Frame Steel Powder Coated G.W. 45kgs Metal Type Stainless Steel Transport Package Wooden Case Specification 2040*900*500mm Trademark Grand Medical Origin China Production Capacity 10, 000 PCS Per Month

Product Description



Product Description

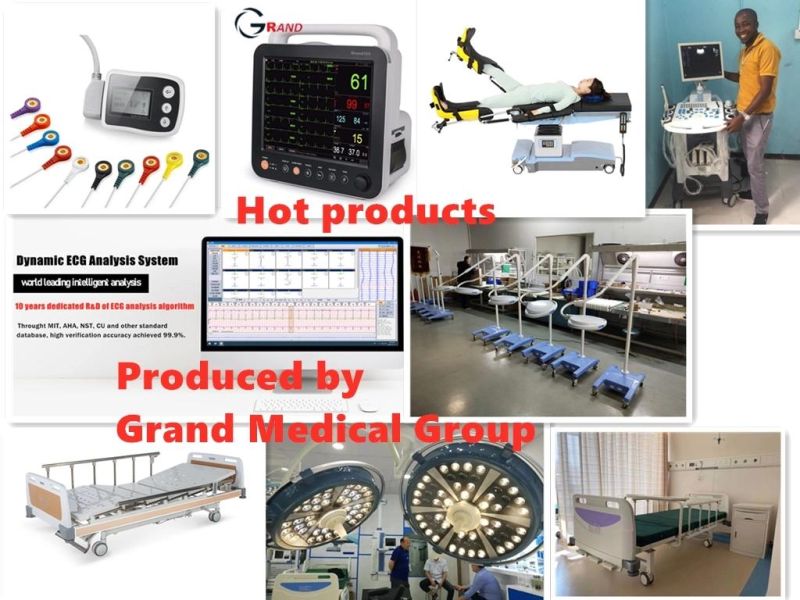

Grand Medical-- manufacture of Hospital Furniture & OT Equipments. Semi electric hospital bed, automatic hospital bed, lifting hospital beds factory. Semi Electric Operation Table, Hydraulic Operating table. Electric Mobile Operation Table  Electrical Movement radiolucent hospital beds. X-ray imaging operating table. Operating lamps, medical pendants.

Model: A32

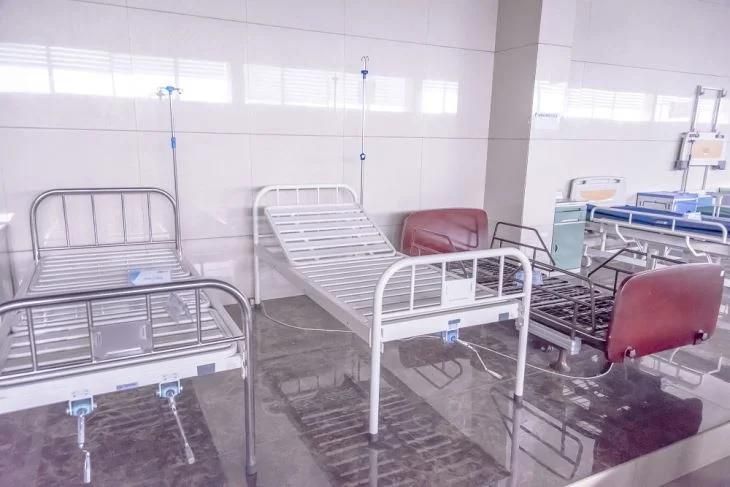

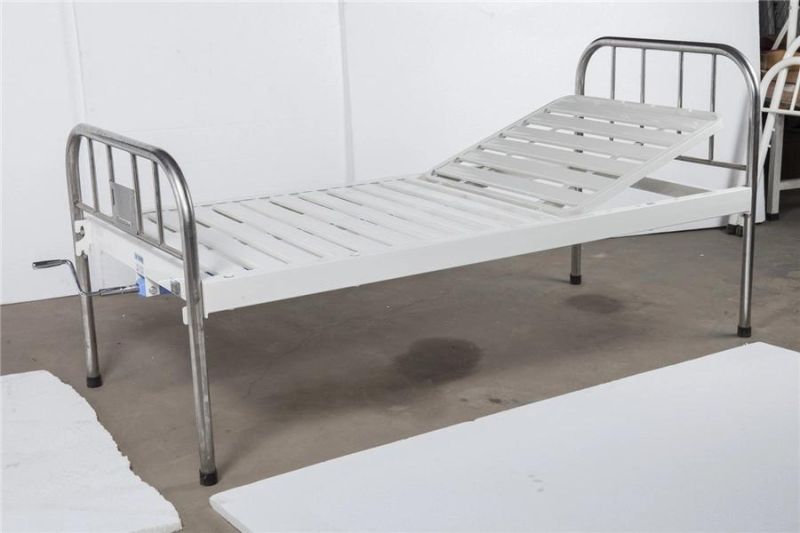

Name: Stainless Steel single shake bed

This Model A32 is the most economic hospital bed for one function, or twofunction requested. it has stainless bed head and bed end, the castors, IV pole, mattress is optional.
 International standard 304 type of stainless steel, no rusting, no color dark
 Robot welding and laser cutting can make sure high quality













 Features

 1.Stainless steel bed head and bed end.
 2.Castors, mattress, IV pole is optional.
 3.International standard 304 type of stainless steel, no rusting, no color dark
 4.Robot welding and laser cutting can make sure high quality


 Function:

The back is adjusted at 60°±5°; stainless steel crank handle; the bed board is formed by one-time stamping of cold rolled steel plate, which has good anti-skid and air permeability. The load-bearing capacity of the bed is not less than 240KG.

Technical Parameters:
1. The bed frame is welded by 80*40*1.5 formed square tube, advanced welding technology, high quality welding, strong bed body, can load ≥240kg;
2. Bed surface: 1.2mm cold rolled steel plate. The strip design is easy to breathe and has anti-slip function.
3.The bed body is made by electrostatic spraying with imported Akzo Nobel antibacterial powder, which is environmentally friendly and antibacterial.
4.The head and foot of the bed are made of stainless steel Φ38×1.5mm round tube bending, hanging design, easy to disassemble, seamlessly made, stable and reliable, and there is a patient information card slot on the outside of the tail plate;
5.It is equipped with a stainless steel folding hand crank, the screw rod is made of 45# steel, and is formed by a special rolling machine. The wire mouth is smooth and easy to operate. The mother wire is made of ductile iron. The screw rod has a two-way neutral protection device, which is safe and durable. .
6.The bed legs are equipped with foot caps, wear-resistant and anti-noise.
7.There is an infusion stand socket on the diagonal, and an infusion stand is optional.

 Technical data:

 1.size: 2150×900×500mm
 2. back plate adjusting:70°+/- 5°
 3. load capacity : 400kg
 4. mattress thickness: 80mm
 mattress material: anti-water cloth, half sponge, half palm

 Accessory parts:
 1 pair of bed head and bed end.
 1 pair of guardrail.
 IV pole, mattress optional.



 Advantage of Grand
 The company has a high-quality design team, according to the design of practical, artistic, scientific medical equipment products to customer requirements, the company through the optimization of raw material supply channels, process improvement, scientific allocation of storage management, timely completion of customer orders according to the requirements.

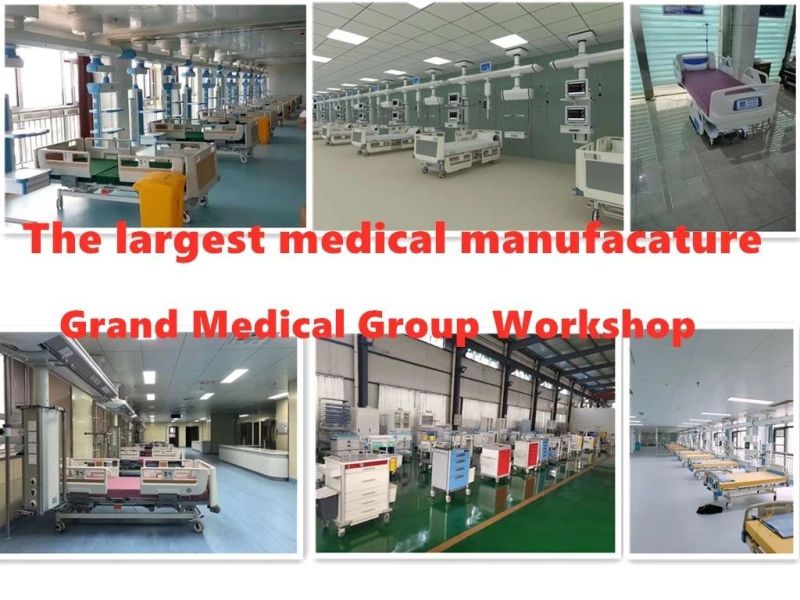

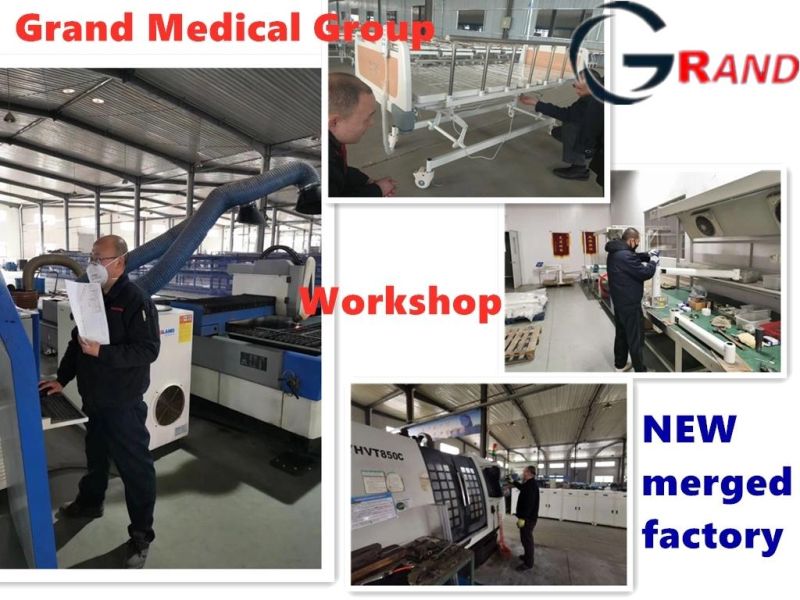

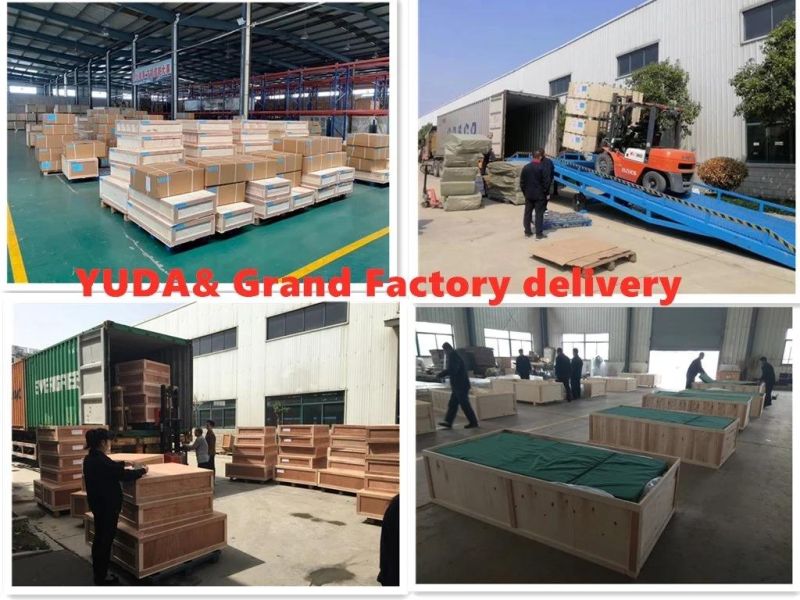

 Our Factory

 Our Certificate



On the fair

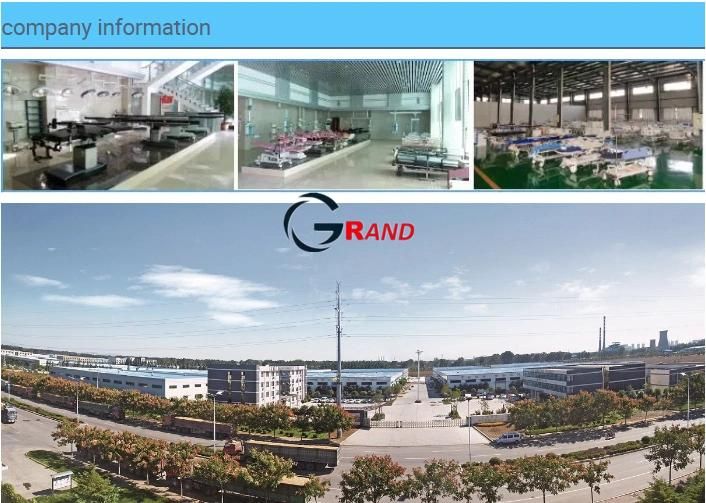

Company Introduction

    Grand Medical is a merged group.( the premier founder is YUDA medical group). It is established in 1992. The factory is located at Yanzhou economic development zone, Shandong Province, China. In 1992 year, YUDA medical group established, by producing hospital beds and medical carts.
     We accumulated rich experience and technology. In 1998, we begin to produce OR equipment, like operating lamp, operating table and medical pendant. Since 2009, we constanly invested more than 30 million dollars on modern factory workshops to improve the production technology for hospital furniture, OR equipment, and ICU equipment, and R&D on medical imaging radiology, like digital X-ray imaging machine, monitor and ultrasound machine.Since 2015 year,  we became largest medical manufacture group in North China,  covers more than 480,000 square meters factory, with 38 workshops, and globally marketing system.
     In the year 2020, Grand Medical Group, by inner prdoucts workflow growth,  strategic merger and with the third factories participation, becone an extensive medical coverage manufacture enterprise. With more than 30years experience, we are equipped to serve every possible global  heatlh programme and cater for every medical supply need that our customer may have.




FAQ

Q: Are you manufacturer ?
A: Yes,we have our own R&D team and sales team,We provide you one-stop service.

Q: Do you have CE,ISO13485?
A: Yes,our products are approved by CE,ISO13485

Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.

Q: What is your Payment term?
A: 1.L/C at sight;
    2.T/T:30% deposit by T/T,70%balance by T/T before shipment
    3.Trade term:EXW, FOBShanghai or CIF&CFR

Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
    2.All of the productions are inspected carfully by QC before delivery.

Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is5-10 days after receiving the deposit;
If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30days,It depends on the quantity of order

Q: What is your Min.order?
A: There's no minimum quantity
