Hospital Furniture

Multifunction Medical Electric Motor Surgical Operating Table Dt-12f New Type Ce Approved Hot Sale!

Shanghai MedEco Industry Co., Ltd.
  • Material:Stainless Steel
  • Type:Operating Table
  • Folded:Folded
  • Using Ambient:Hospital
  • Numbers of Function:Five-function
  • Certification:CE, ISO13485

Base Info

  • Model NO.:Operating table DT-12F New Type
  • Condition:New
  • Table Height:750mm~1000mm
  • Length and Width:2100mmx500mm
  • Reversed Trendelenburg/Trendelenburg:20o
  • Lateral Tilt (Left/Right):15o
  • Head Rest(up/Down):45o,90o
  • Kidney Bridge Elevated:80mm
  • Leg Section Lowered From The Horizontal:90o
  • Safe Working Load:135kg
  • Transport Package:Standard Export Packing Box
  • Specification:CE
  • Trademark:MEDECO
  • Origin:China
  • Production Capacity:5000PCS,Year

Description

Basic Info.

Model NO. Operating table DT-12F New Type Condition New Table Height 750mm~1000mm Length and Width 2100mmx500mm Reversed Trendelenburg/Trendelenburg 20o Lateral Tilt (Left/Right) 15o Head Rest(up/Down) 45o/90o Kidney Bridge Elevated 80mm Leg Section Lowered From The Horizontal 90o Safe Working Load 135kg Transport Package Standard Export Packing Box Specification CE Trademark MEDECO Origin China Production Capacity 5000PCS/Year

Product Description

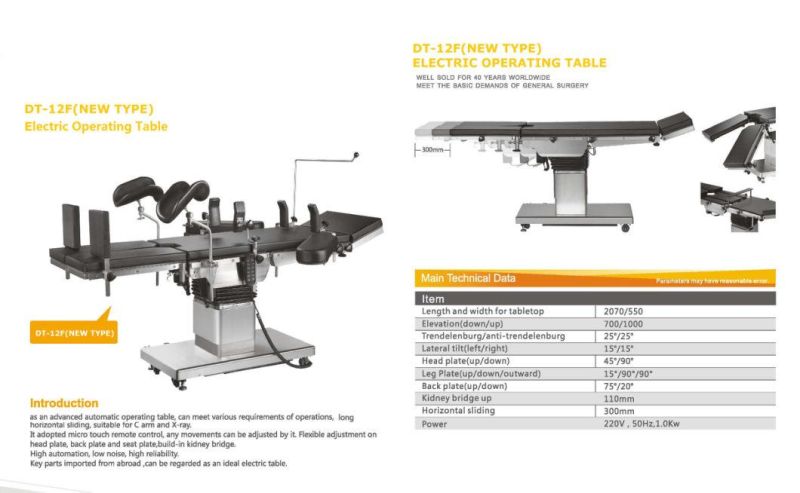

 Medical Equipment Electric Hydraulic Operating Table DT-12F New Type

This Electric Operating Table
DT-12F New Type is designed for all kinds of operations in hospitals.

Besides all functions of the Chinese-built operating tables.


Electric Operating table has its own advantages:

1. Leg section can be rotated, opened, disassembled and adjusted easily.
It is most suitable for the urological operation.

2. The table top, made of highstrength plastic plate, can move backwards and forwards, X-ray examination can be carried out on it.

3. With 24V direct supply, the table is safe and reliable. The table's elevation, lowering, reversed trendelenburg; trendelenburg , lateral tilt are all automatically controlly by the Button.

4. This operating table can be disposed different kinds of table tops for different use.

 5.The ascending and descending movements, lateral tilt movements,reversed
trendelenburg, trendelenburg movements adn backward and forward movements of the table top are all electrically operated.

Electric Operating Table is one of the most advanced operating table with excellent functions in China. Availabe for the Model C arm.
The back section and the leg section of Model ECOH005 is equiped with the barometric Pressure spring. Senior PY foam material is optional for mattress.



Main Usage: Electric operating table can be operated for clinical use.
Structure :    Operating table consists of two parts: mechanical and electro-hydraulic control system.
Depending on manual operation, the product can meet the requirement of posture in clinical operation.


Dimension of table top:

Table height::760mm~1060mm
Length and width: 2050mmx540mm
Reversed Trendelenburg: 25º
Trendelenburg: 30º
Left inclining angle: 20º;Right inclining angel: 20º
Upward folding angle of back rest: 75º
Downward folding angle of back rest: 20º
Upward folding angle of head rest: 80º
Downward folding angle of head rest: 80º
Downward folding angle of leg rest: 90º (Dismountable )
Kidney bridge range: 120mm
Longitudinal traverse:350mm, with remote control system,with battery and automatic charging device,standby body panel /Remote panel
wooden carton packing size:145×80×90cm,G.W./N.W.:310/255KGS
total:1.10 CBM/set


Foot and leg board board into a horizontal or vertical.
Device safety sort  I     B
IPX4   Ingress Protection:IPX4
220V,50Hz    Power:(AC)220V,50Hz
(DC)24V  Internal electric source:(DC)24V
Battery capacity ≥ 2.4AH


Structure

Electric Operating Table is made up of the table top, the main part, the electric controlling part and the accessories, etc. It's raising, lowering, lateral tilt, trendelenburg and reversed trendelenburg,backward and forward movements are all drived by the motors.
Numberal orderName of accessoriesNumber
1Head section1
2Anaesthetic Screen1
3Body supportLarge 1.smart 1
4Shoulder support2
5Arm rest2
6Knee crutch2
7Cushion1
8Body Restraint Strap1Optional
9foot plate2Optional
