• Model NO.：A-1
• Condition：New
• Height Adjusting Range：410–600mm
• Knee-Rest Adjustment：0-25°(±10°)
• Back-Rest Adjustment：0-75°(±10°)
• Safe Working Load：250kg
• Transport Package：Wooden Carton
• Specification：1.64 CBM,unit
• Trademark：SD
• Origin：China
• HS Code：9402900000
• Production Capacity：3000units,Month

L2180*W1060*H430~750mm

Standard Configurations

1.Bed frame is made of epoxy coated steel

2.One pair of H/F boards(HP-2)

3.HDPE tuck-away side rails with damping(4)

4.ABS Tuck-away crank handles (3)

5.I.V Pole holes (4)

6.Drainage Hooks (4)

7.Luxury dia. 125mm castors with central locking system (4)

Certificates

1. The bed frame is made of epoxy coated steel, the bed platform is shaped once for all by cold rolled steel plate, which is stable and reliable;
2. Detachable high quality HDPE engineer plastic headboards & Tuck-away HDPE engineer plastic side rails;
3. Four dia-125mm castors, with central locking system;
4. Three functions, which can be operated by manual cranks, the details is as follow:
(1)back rest:0º-80º±2º (2)knee rest:0º-35º±2º (3)high-low:520mm~800mm
5. Location for IV rod in each corner

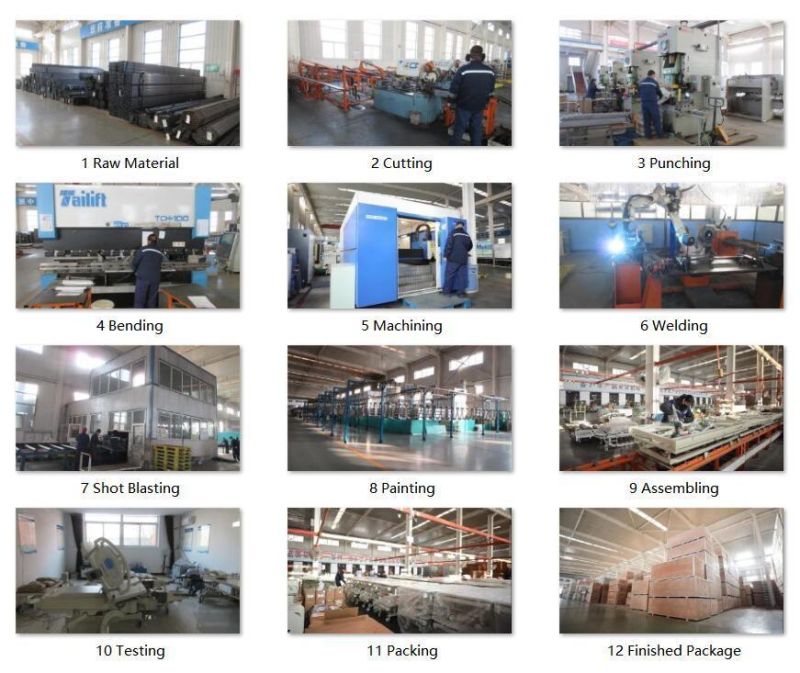

Hospital beds & furniture Production Flow as follow:

Production equipment

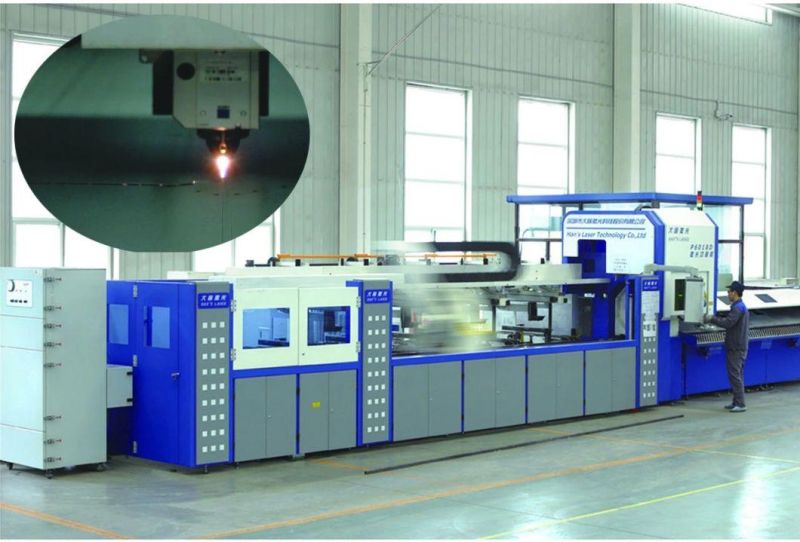

Pipe and metal sheet Laser cutting

The steel pipe and sheet metal parts used in the our product cut by laser cutting machine to ensure the accuracy of the workpiece.

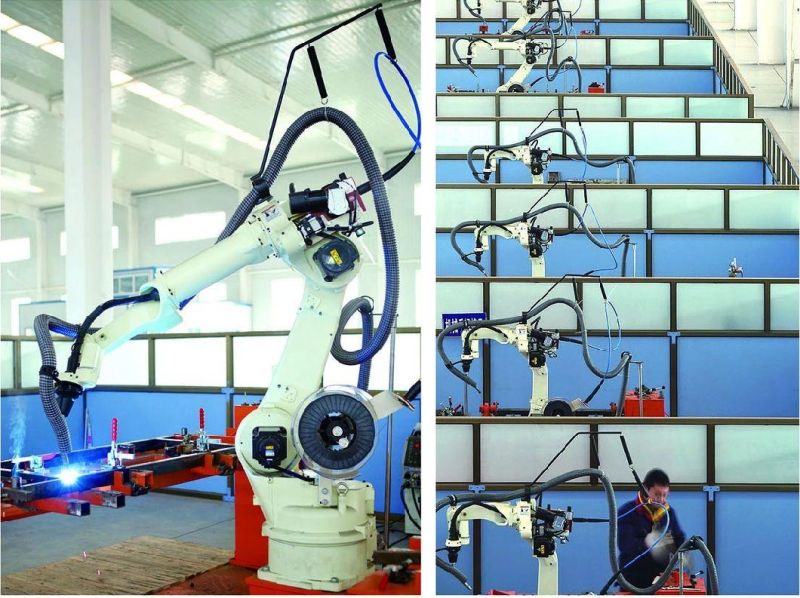

Manipulator welding

The welding adopts Robot hand group welding technology, with beautiful welding seam and higher welding precision than traditional manual welding.

Injection molding machine

Head, foot board, said rail are made of high quality PP raw material(Non reclaimed materials) by our own injection molding machine, mount steel pipe inside to reinforce structural strength.

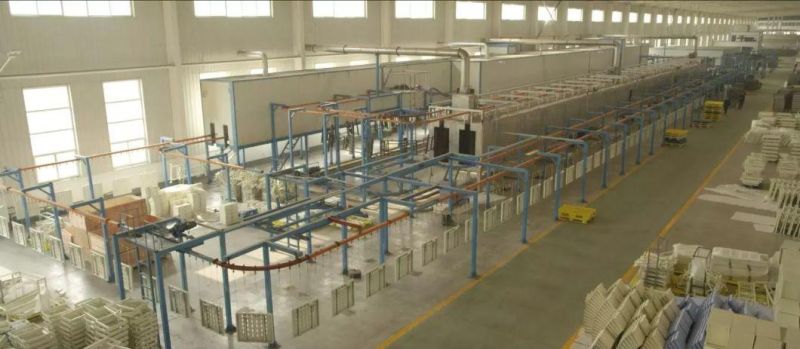

Surface treatment of carbon steel

The self-owned 420 meters length automatic electrostatic epoxy powder spraying assembly line is used for one-time completion. The rust removed by high-speed shot blasting machine before spraying. The powder material has the properties of aging resistance, high toughness, solvent resistance, low temperature and antibacterial, provide antibacterial test certificate.
