• Model NO.：JYK-3FWF
• Transport Package：Carton
• Specification：CE, FDA
• Trademark：JYK
• Origin：China
• Production Capacity：1000unit,Month

Basic Info.

Model NO. JYK-3FWF Transport Package Carton Specification CE, FDA Trademark JYK Origin China Production Capacity 1000unit/Month

Product Description

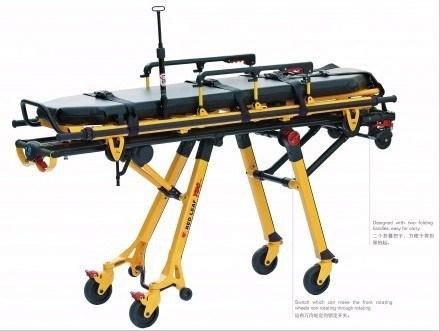

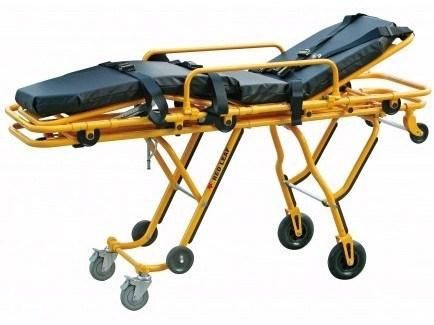

Stretcher for ambulance car JYK-33FWF
Hospital bed, medical bed, medical table, Hospital stretcher

Technical features:
The main structure is made of high-strength aluminum alloy material,
Both ends can be tilted, the height of the stretcher can be 16 different positions adjusted by holding down the handles.
The stretcher equipped with safety switch to prevent mistake when loading to ambulance, only one people can push the stretcher to ambulance.
The backrest can be adjusted by penumatic spring, it comes with safety belt, three-steps, I.V. pole and inverted compound guard rail.
The upper stretcher is detachable from main stretcher through lock button controlled separation and lock. The upper stretcher is equipped with telescopic handles on both ends for easy to carry.
The stretcher equipped with elastic wide tires wheels is much stable. The front of two universal wheels could be straight lock or universal rotation according to needs, the back of two universal wheels with brake.
The fixed device is whole type when stretcher loading to ambulance and the fixed together, the device which could assure the stretcher on correct position in ambulance, it is fixed by three points to assure safety and stable.
Both ends and stretcher height can be adjusted sixteen postions:
A, adjustment in level height: 6 positions
B,adjustment in ante version: 5 positions
C,adjustment in retroversion, 5 positions
Loading height: the highest position is 64cm


Wheel size: Ø150mm.



high position  size	195.5*56.6*99.8cm
Max. angle of the back	61 degree
low position size	195.5*56.6*36.5cm
self-weight	57kgs
packing size	209*66*62cm
G.w	92.9kgs
