Medical Equipment Hospital Furniture Five Function Electric ICU Hospital Bed with Weighing System
Hefei Shendeng Medical Equipment Co., Ltd.- Material：Metal
- Type：Electric Bed
- Folded：Unfolded
- Using Ambient：Hospital
- Numbers of Function：Five-function
- Certification：CE, FDA, ISO13485
Base Info
- Model NO.：DA-2(A3)
- Condition：New
- Height Adjusting Range：495-735mm
- Knee-Rest Adjustment：0-25&Deg
- Back-Rest Adjustment：0-70&Deg
- Trendelenburg & Reverse Tren.：0-12&Deg
- Bed Extension：200mm±10mm
- Safe Working Load：250kg
- Special Feature 1：Battery for Emergency
- Special Feature 2：Angle Indicator
- Special Feature 3：Nurse Controller and Hand Controller and Siderail
- Special Feature 4：4PCS of Full Length PP Material Side Rail
- Special Feature 5：Detachable PP Material Head Foot Board
- Special Feature 6：Back Board Can Do X-ray
- Special Feature 7：Weighting Scale with Leaving Bed Alarm
- Transport Package：Wooden Carton
- Specification：2070*988*574mm total: 1.17CBM, G. W.: 196 KGS
- Trademark：SD
- Origin：China
- HS Code：9402900000
- Production Capacity：3000units,Month
Description
Knee rest: 0-25 degree
Height adjust: 495-735mm±10mm
Trendelenburg: 0-12 degree
Reverse Tren.: 0-12 degree
One-key leave the bed
One-key cardiac chair position
One-key back and knee linkage
Back return function to reduce abdomen pressure
Function key locking
Electric and manual CPR
Bed extension: 200mm±10mm
Back board can do X-ray
Weighting scale with leaving bed alarm
With battery for emergency
With angle indicator
Nurse controller and hand controller and siderail controller
4pcs of PP material side rail
Detachable PP material head foot board
Safe work load: 250kgs

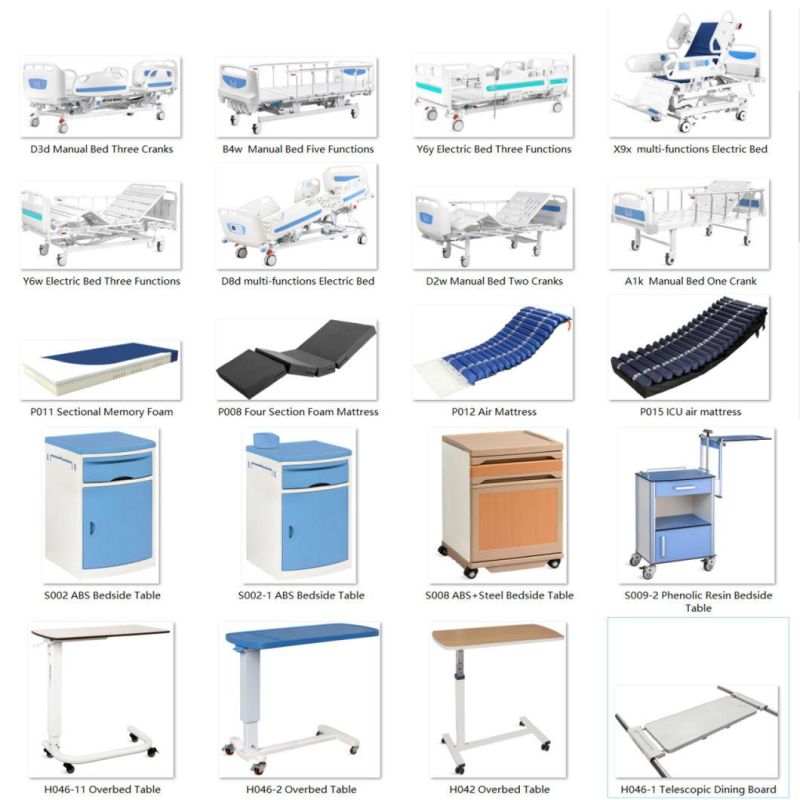

Other related hospital furniture:

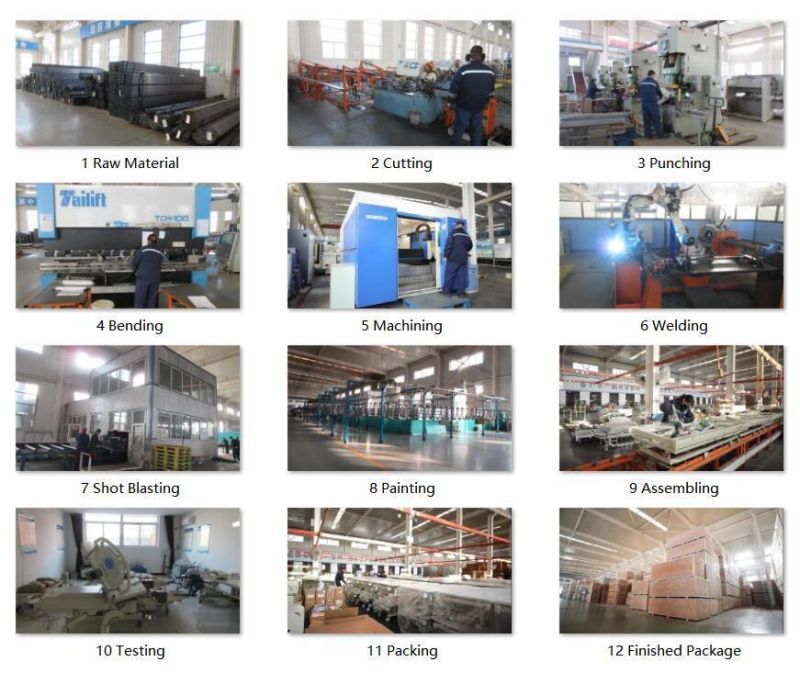

Hospital beds & furniture Production Flow as follow:
Production equipment

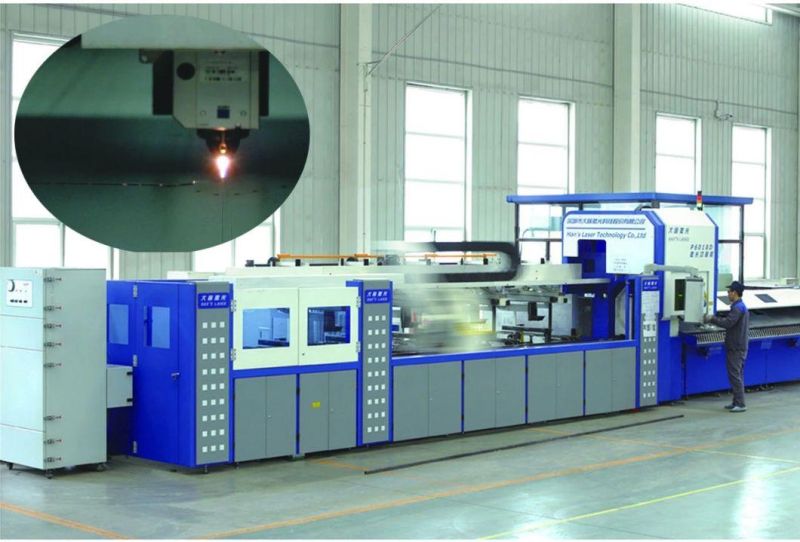

Pipe and metal sheet Laser cutting
The steel pipe and sheet metal parts used in the our product cut by laser cutting machine to ensure the accuracy of the workpiece.
Manipulator welding
The welding adopts Robot hand group welding technology, with beautiful welding seam and higher welding precision than traditional manual welding.

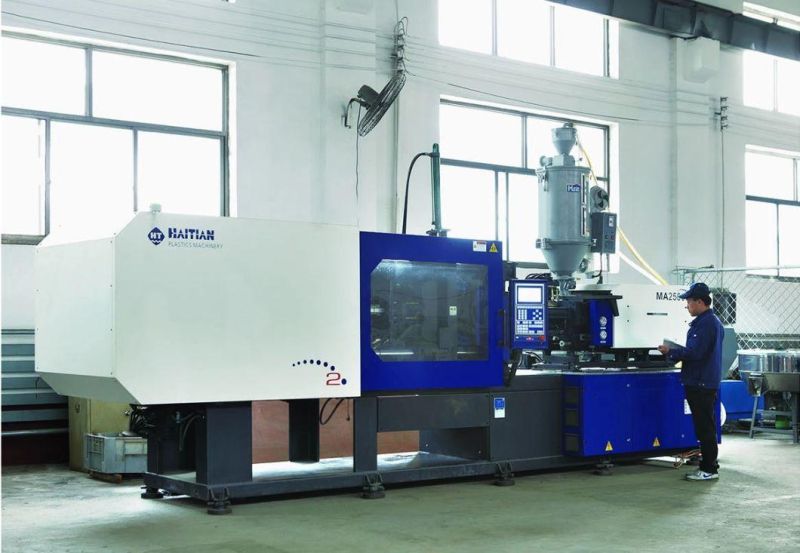

Injection molding machine
Head, foot board, said rail are made of high quality PP raw material(Non reclaimed materials) by our own injection molding machine, mount steel pipe inside to reinforce structural strength.

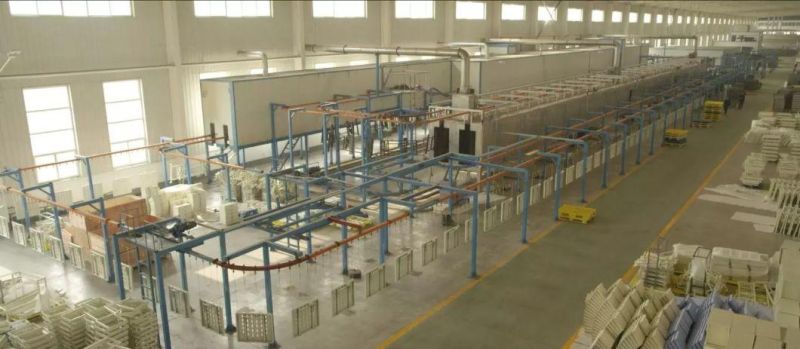

Surface treatment of carbon steel
The self-owned 420 meters length automatic electrostatic epoxy powder spraying assembly line is used for one-time completion. The rust removed by high-speed shot blasting machine before spraying. The powder material has the properties of aging resistance, high toughness, solvent resistance, low temperature and antibacterial, provide antibacterial test certificate.
